Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VZ 800 Marauder SUZUKI VZ800 X Marauder SUZUKI (VIN: JS1AF111) 13 - REAR AIR CLEANER

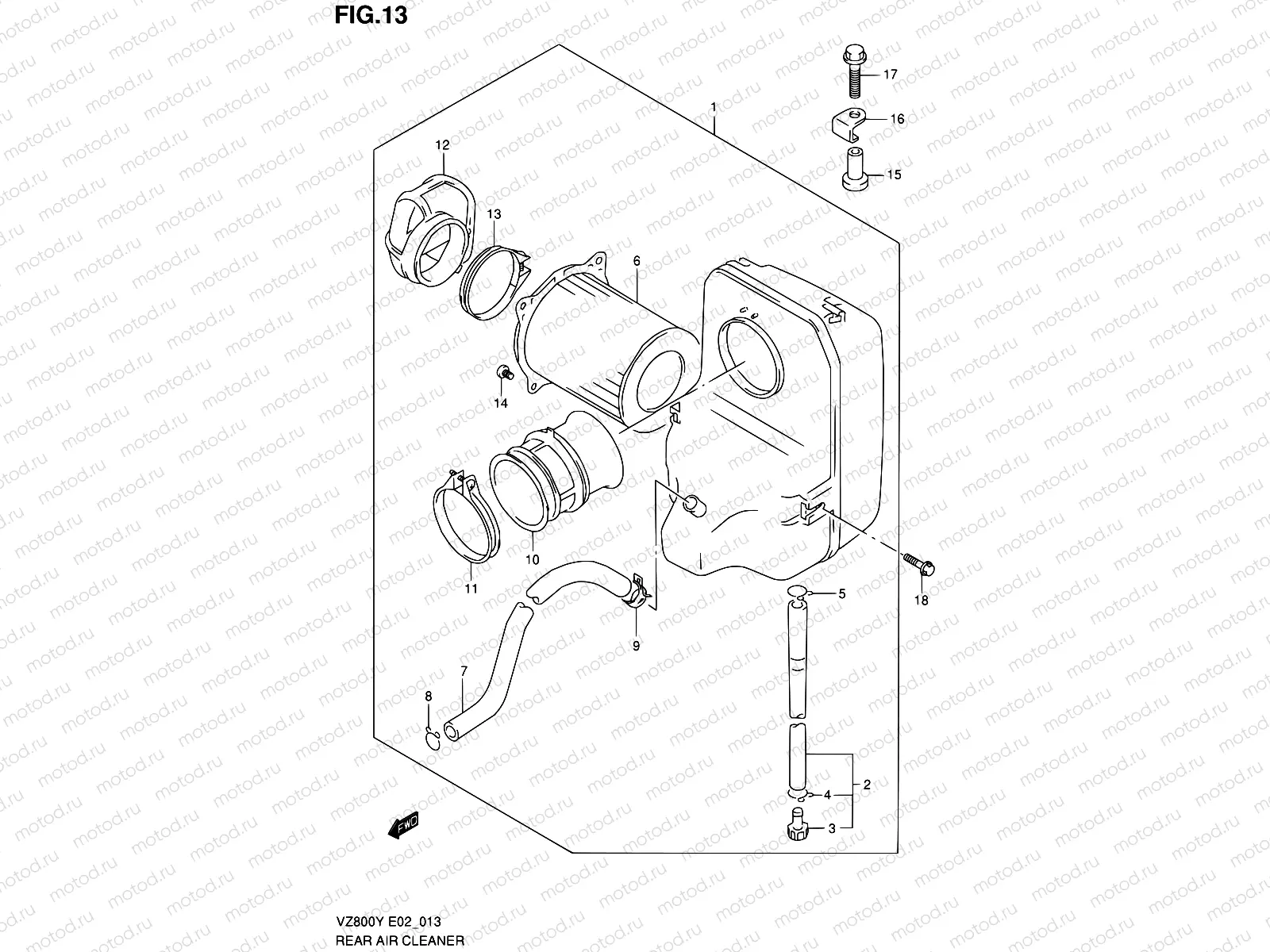

13 - REAR AIR CLEANER

13 - REAR AIR CLEANER
Например: 13800-48E00
1
13800-48E00
CLEANER ASSY,AIR RR
22 287 ₽/шт
2
13870-11308
Трубка дренажная
1 345 ₽/шт
3
13877-38A00
СЛИВНАЯ ПРОБКА
297 ₽/шт
4
09401-11101
Хомут
114 ₽/шт
5
09401-13409
ХОМУТ МАЛЫЙ
1 250 ₽/шт
6
13780-48E00
FILTER ASSY
3 793 ₽/шт
7
13851-48E01
TUBE,BREATHER
1 067 ₽/шт
8
09401-15101
ХОМУТ МАЛЫЙ
162 ₽/шт
9
09401-14404
CLIP
1 330 ₽/шт
9
09401-16403
ХОМУТ ПЫЛЬНИКА РУЛЕВОЙ ТЯГИ
1 370 ₽/шт
10
13881-48E01
Tube,outlet
1 846 ₽/шт
11
09402-58208
Хомут
243 ₽/шт
12
13891-45C31
Tube,inlet
3 400 ₽/шт
13
09402-56901
Хомут
255 ₽/шт
14
02142-0510A
Болт
82 ₽/шт
15
13912-48E00
Кольцо/шайба
899 ₽/шт
16
13913-48E00
PLATE,AIR CLEANER RR
274 ₽/шт
17
01550-0630A
БОЛТ
102 ₽/шт
18
01550-0612B
БОЛТ
81 ₽/шт
