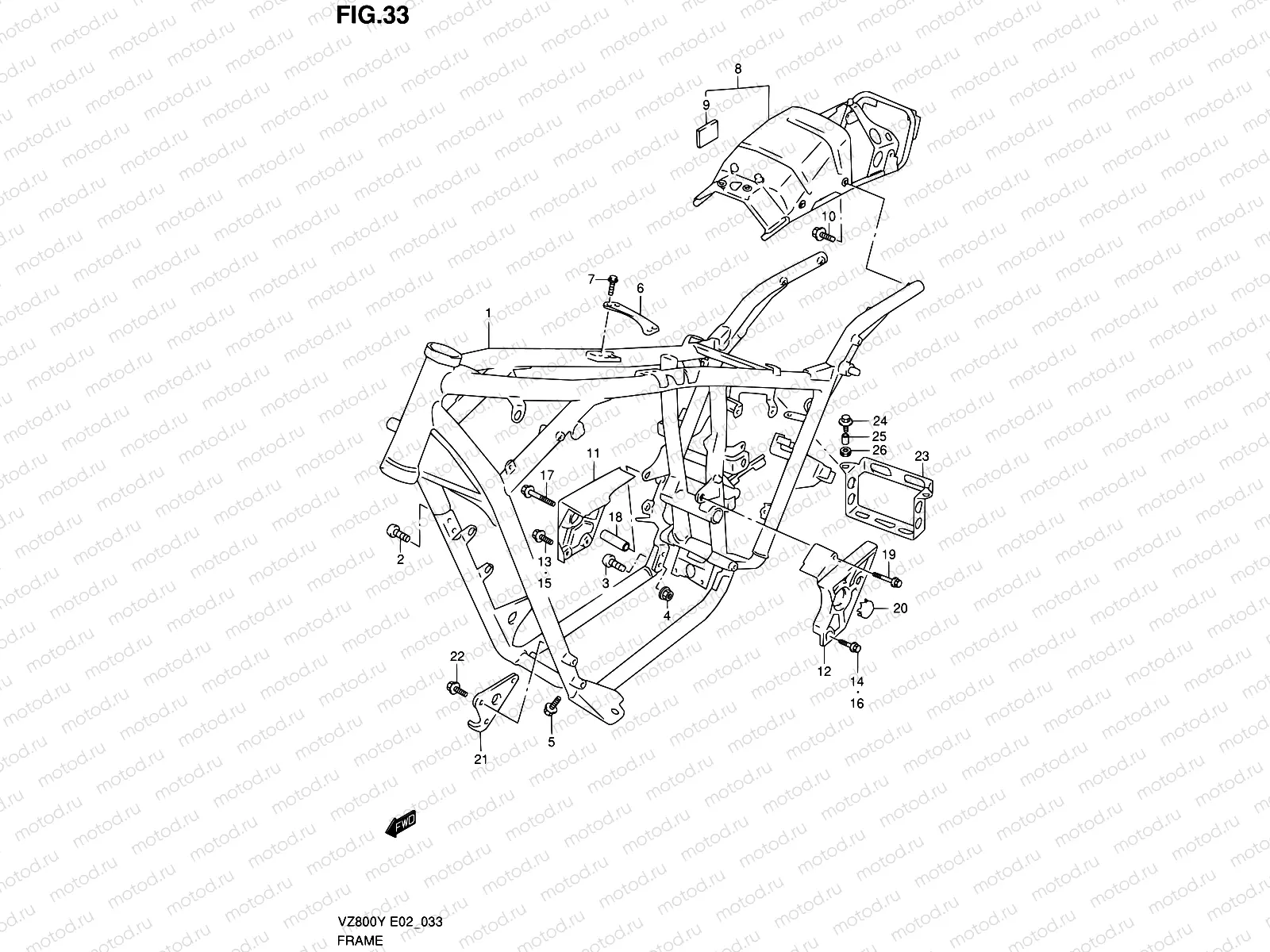

33 - FRAME (MODEL V/W/X/Y)

33 - FRAME (MODEL V/W/X/Y)

Например: 41100-48E90-019

1

41100-48E90-019

Frame vz800/k1-

2

07130-1025B

Болт

162 ₽/шт

3

07130-1035B

Болт

179 ₽/шт

4

08319-3110B

Гайка

1 920 ₽/шт

5

01550-0816B

Болт крепёжный

97 ₽/шт

6

41999-48E00

PLATE,FRAME BODY

1 267 ₽/шт

7

09106-08140

Заглушка масляной магистрали

258 ₽/шт

8

41501-48E00

BRACE ASSY,RR FRAME

43 384 ₽/шт

9

13719-84150

РЕЗИНКА НА ПЕДАЛЬ ТО

172 ₽/шт

10

01550-0820A

БОЛТ

102 ₽/шт

11

41961-48E10

Cover,pivot,r

12

41962-48E00

Cover,pivot,l

15

09106-08128

Болт

2 070 ₽/шт

16

41964-48E00

Bolt,pivot cvr.

19

41965-48E00

BOLT,PIVOT COVER UPR,L

688 ₽/шт

20

61222-38A01

CAP,RR SWINGING ARM PIVOT,R

824 ₽/шт

21

41921-48E00

Plate,eng mnt,1

22

09116-10140

Bolt (10x33)

23

41540-48E00

Holder,battery

24

09116-06006

BOLT(6X16)

81 ₽/шт

25

09180-06261

Прокладка

189 ₽/шт

26

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт
