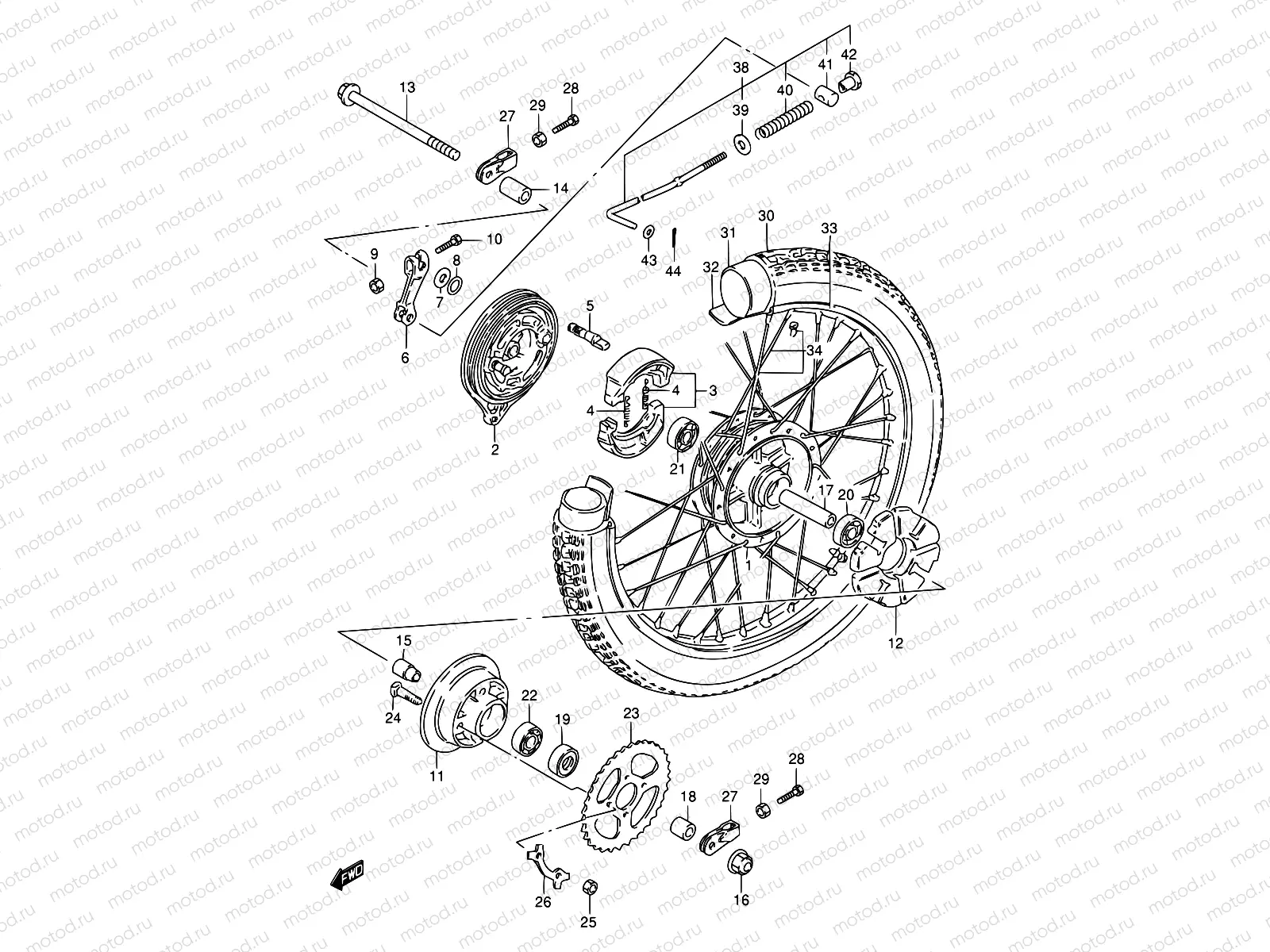

40 - REAR WHEEL (E71,E94,P09,P94)

40 - REAR WHEEL (E71,E94,P09,P94)
Например: 64110-35002
1
64110-35002
HUB,RR WHEEL
14 858 ₽/шт
2
64210-46013
PANEL,RR BRAKE ANCHOR
7 625 ₽/шт
3
54400-35860
SHOE & SPRING SET,BRAKE
3 890 ₽/шт
4
09443-07044
Пружина
179 ₽/шт
5
54441-29305
CAM,BRAKE
1 036 ₽/шт
6
64451-39100
LEVER,RR BRAKE CAM
1 189 ₽/шт
7
09160-14055
Шайба
1 450 ₽/шт
8
09280-14011
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ ПОМПЫ МАСЛЯНОЙ, РЕЗИНА !
226 ₽/шт
9
08319-31067
Гайка
153 ₽/шт
10
09103-06045
BOLT(6X32)
1 720 ₽/шт
11
64611-39200
DRUM,RR SPROCKET MOUNTING
6 021 ₽/шт
12
64651-010B1
ДЕМПФЕР ЗАДНЕГО КОЛЕСА
2 019 ₽/шт
13
64711-39201
AXLE,RR
2 796 ₽/шт
14
09180-12065
SPACER(12.2X22X39)
6 330 ₽/шт
15
64733-43000
RETAINER,RR SPROCKET DRUM
817 ₽/шт
16
08319-3112A
Гайка
211 ₽/шт
17
09180-12145
SPACER(12.5X19X58)
5 670 ₽/шт
18
09180-12131
SPACER(12X25X25)
3 680 ₽/шт
19
09285-25007
Seal
1 870 ₽/шт
20
08143-6201B
earing
765 ₽/шт
21
08143-6301B
earing
1 396 ₽/шт
22
09262-17023
ПОДШИПНИК
937 ₽/шт
23
64511-23472
Sprocket, rear (nt:44)
24
09105-08001
BOLT(8X33.5)
144 ₽/шт
25
08310-0008B
Гайка
85 ₽/шт
26
09169-08011
Шайба
187 ₽/шт
27
61410-23450
ADJUSTER,CHAIN
653 ₽/шт
28
09104-08034
BOLT
1 840 ₽/шт
29
08310-0008B
Гайка
85 ₽/шт
30
65100-36011
Rr.tyre 2.75x18
31
55200-26F01
Tube,inner
32
55261-26F10
PROTECTOR,INNER TUBE
486 ₽/шт
33
55311-12120
RIM,WHEEL(1.40X18)
5 780 ₽/шт
34
65320-12121
SPOKE SET,RR
7 055 ₽/шт
35
43300-23450
Rod assy, rear brake
36
08322-0106A
Шайба
81 ₽/шт
37
09440-09004
SPRING
129 ₽/шт
38
09150-06010
Гайка
194 ₽/шт
39
09209-11002
Рукоятка кулочка тормоза
178 ₽/шт
40
08322-0105B
Шайба
81 ₽/шт
41
04111-2020A
Штифт
81 ₽/шт
