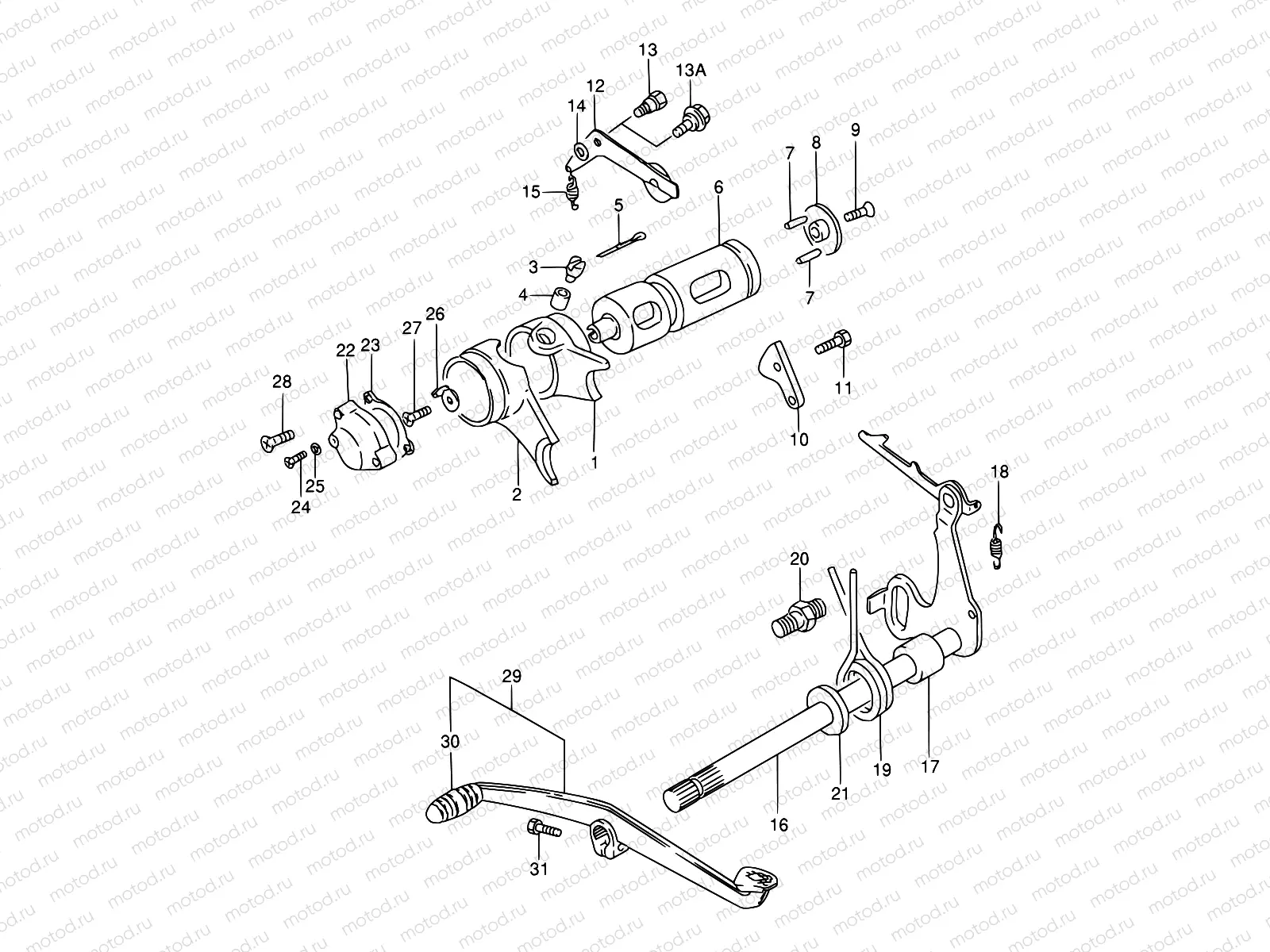

11 - GEAR SHIFTING

11 - GEAR SHIFTING
Например: 25211-23001
1
25211-23001
FORK,GEAR SHIFT NO.1
20 060 ₽/шт
2
25221-03601
FORK,GEAR SHIFT
5 005 ₽/шт
3
09209-10002
PIN
3 130 ₽/шт
3
09209-10017
ШТИФТ
4 380 ₽/шт
4
09180-06086
SPACER(6X9.8X6)
1 410 ₽/шт
5
04111-2520A
Стопор
85 ₽/шт
6
25311-03602
CAM,GEAR SHIFT
5 396 ₽/шт
7
09261-04003
PIN(4X20)
1 250 ₽/шт
8
25322-46000
RETAINER,GEAR SHIFT CAM DR PIN
387 ₽/шт
9
02122-0620B
Винт
1 090 ₽/шт
10
25341-03000
GUIDE,GEAR SHIFTING CAM
11
01500-0616B
Болт
1 330 ₽/шт
12
25350-12000
STOPPER,GEAR SHIFT CAM
5 355 ₽/шт
13
09111-06054
BOLT(6X14.6)
1 840 ₽/шт
14
08322-0106A
Шайба
81 ₽/шт
15
09443-07014
SPRING
1 090 ₽/шт
16
25510-12102
SHAFT,GEAR SHIFT
4 575 ₽/шт
17
09180-12083
Кольцо/шайба
179 ₽/шт
18
09443-06008
Пружина
1 680 ₽/шт
19
09444-26008
Пружина
2 540 ₽/шт
20
25671-19000
STOPPER,GEAR SHIFT ARM
250 ₽/шт
21
09285-12006
САЛЬНИК ТРАНСМИССИИ, РЕЗИНА
275 ₽/шт
22
37721-05101
BODY,CHANGE SWITCH
817 ₽/шт
23
37712-01000
GASKET,GEAR SHIFT SWITCH
156 ₽/шт
24
02112-03047
Болт
1 060 ₽/шт
25
08322-01037
Шайба
1 090 ₽/шт
26
37711-05101
CONTACT,GEAR SHIFT SWITCH
360 ₽/шт
27
02122-0612B
Болт
82 ₽/шт
28
02112-74203
Screw
29
25600-23400
Lever assy, gear shifting
30
25652-16510
Rubber,gear Shift Pedal
355 ₽/шт
31
01500-0620A
Болт
81 ₽/шт
