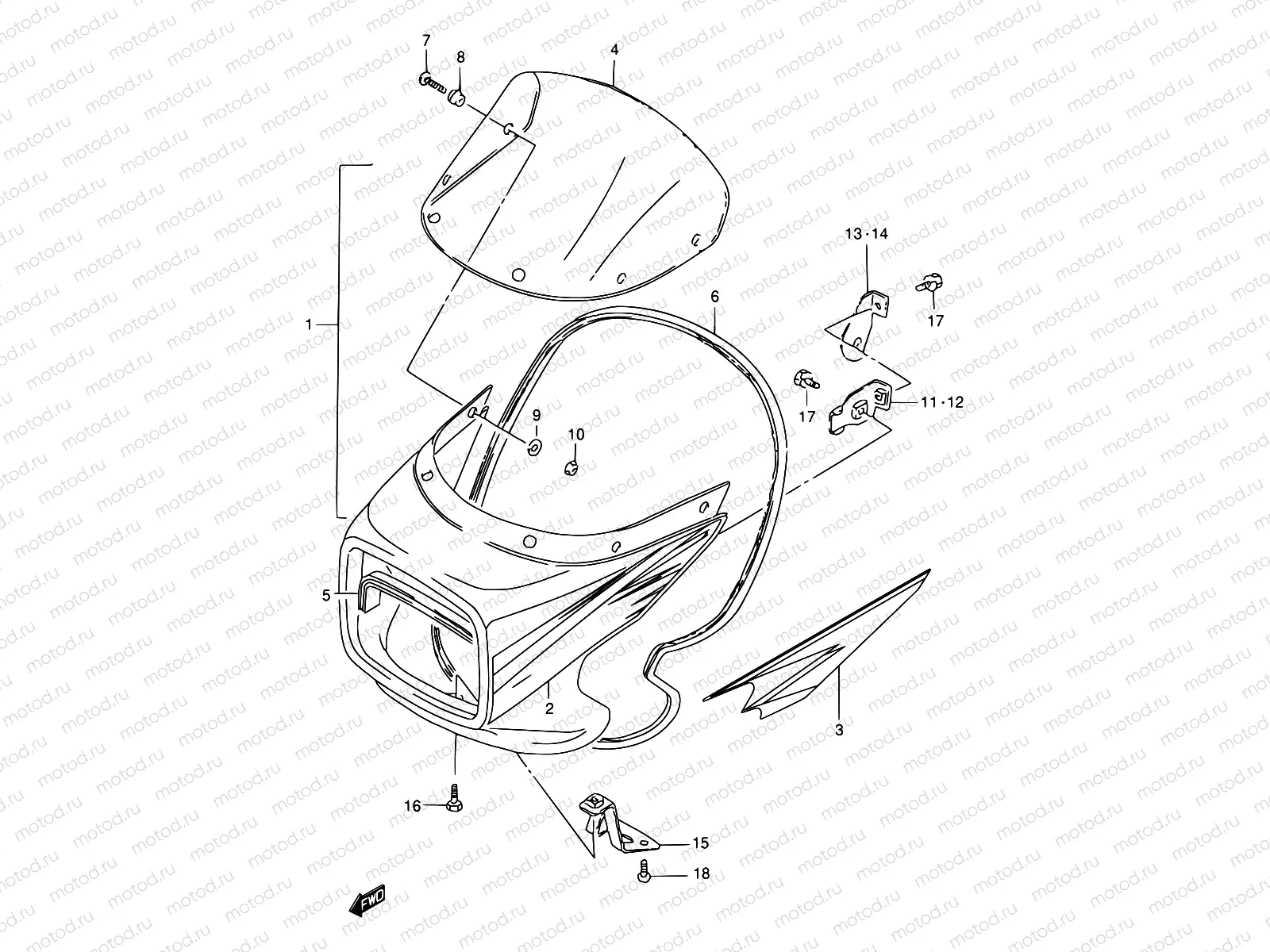

32 - COWLING (MODEL W P09)

32 - COWLING (MODEL W P09)

Например: 94400-23500-019

1

94400-23500-019

Cowling assy (black)

1

94400-23500-20F

Cowling assy (maroon)

1

94400-23500-1ZV

Cowling assy (green)

1

94400-23501-Y0P

Cowling assy (blue)

1

94400-23450-20F

Cowling assy (maroon)

1

94400-23450-Y98

Cowling assy (green)

1

94400-23450-019

Cowling assy (black)

2

68270-23510-K6N

.tape set

2

68270-23510-K6P

.tape set

2

68270-23510-K6R

.tape set

2

68270-23510-L5F

.tape set

3

68270-23500-K6V

.tape set

3

68270-23500-K6W

.tape set

3

68270-23500-K6U

.tape set

4

94611-36500

WINDOW,COWLING

4 536 ₽/шт

5

94591-23E00

MOLDING,HEADLAMP GRILE

1 369 ₽/шт

6

94631-44110

MOLD,COWLING

4 845 ₽/шт

7

09139-05021

Винт (5X12)

81 ₽/шт

8

09320-05021

Cushion(5.5X11X4.5)

194 ₽/шт

9

08322-0105B

Шайба

81 ₽/шт

10

08310-0005B

Гайка

1 370 ₽/шт

11

94510-05310

BRACE,COWLING,R

594 ₽/шт

12

94530-05310

BRACE,COWLING,L

594 ₽/шт

13

94521-23450

BRACKET,COWLING FITTING,R

454 ₽/шт

14

94561-23450

BRACKET,COWLING FITTING,L

454 ₽/шт

15

94550-23450

Bracket, cowling lower

16

09118-06017

БОЛТ

1 210 ₽/шт

17

01570-0612A

Болт

85 ₽/шт

18

02142-0616A

Болт

81 ₽/шт
