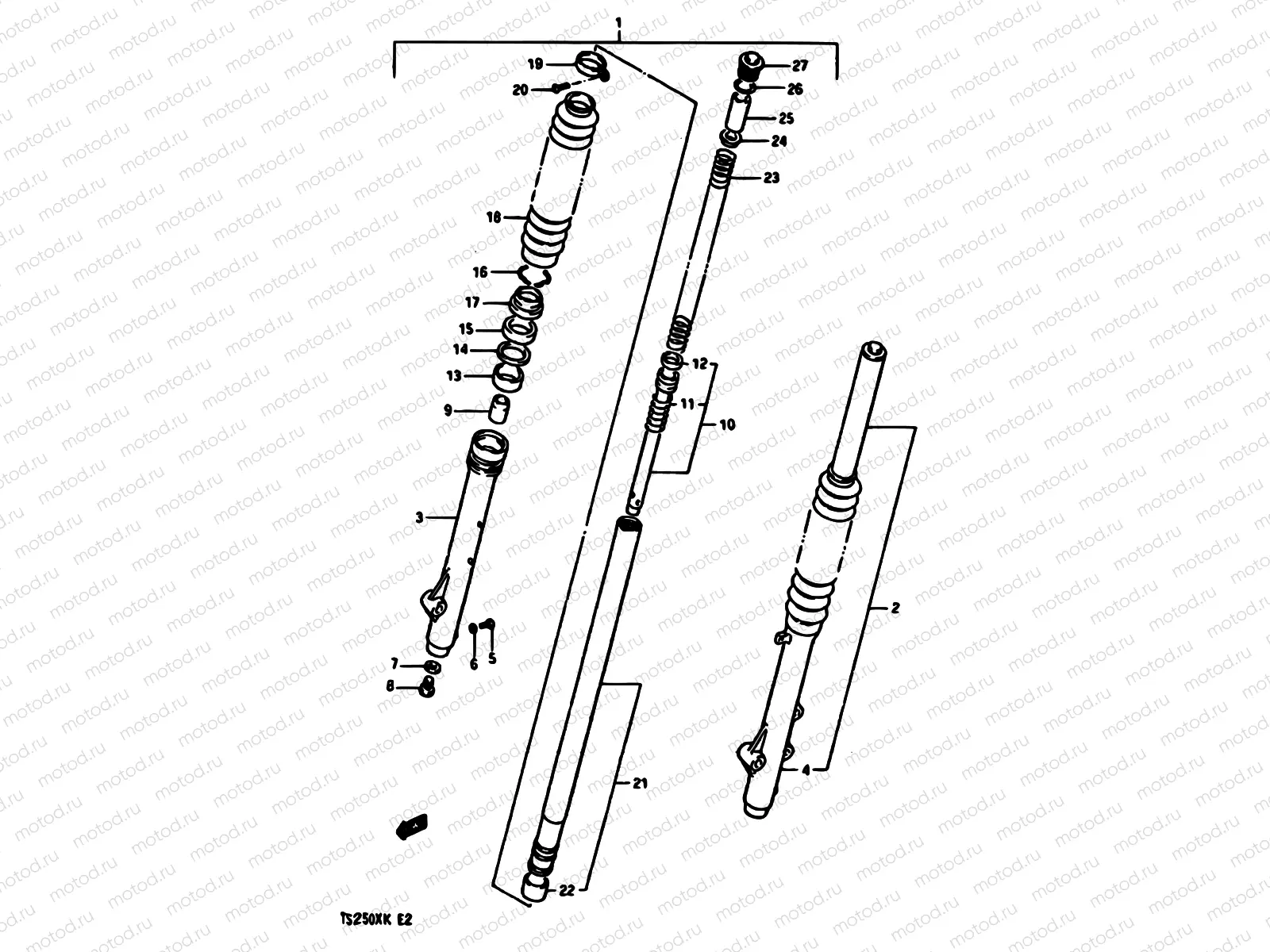

40 - FRONT FORK (MODEL E)

40 - FRONT FORK (MODEL E)

Например: 51103-13A01-019

1

51103-13A01-019

Damper assy,rh (black)

1

51103-13A01-19F

Damper assy,rh (blue)

2

51104-13A00-019

Damper assy,lh (black)

2

51104-13A00-19F

Damper assy,lh (blue)

3

51131-13A01

.outer tube,rh

4

51141-13A00

.outer tube,lh

5

02112-04087

Винт 4X8

85 ₽/шт

6

51183-03010

Прокладка

149 ₽/шт

7

51148-40300

Прокладка

162 ₽/шт

8

51147-40300

BOLT,CYLINDER

371 ₽/шт

9

51195-13A00

.piece,oil lock

10

51146-13A00

.cylinder

11

51177-13A00

..spring

12

51196-13A00

..ring,piston

13

51167-13A00

Металическая вставка

594 ₽/шт

14

51158-14100

Шайба

227 ₽/шт

15

51153-14140

Oil seal,fr for

16

51156-40301

Кольцо

275 ₽/шт

17

51173-14140

Dust seal,fr fo

18

51571-13A00-38K

Boot

19

51575-44B00

and,boot

20

02112-04107

Болт

82 ₽/шт

21

51110-13A00

.inner tube

22

51121-14100

PISTON

899 ₽/шт

23

51171-13A00

.spring

24

51172-40300

GUIDE

371 ₽/шт

25

51176-13A00

Кольцо/шайба

669 ₽/шт

26

51117-40300

O RING

238 ₽/шт

27

51351-13A00

.cap
