Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI TS 250 SUZUKI TS250X E SUZUKI 38 - SEAT

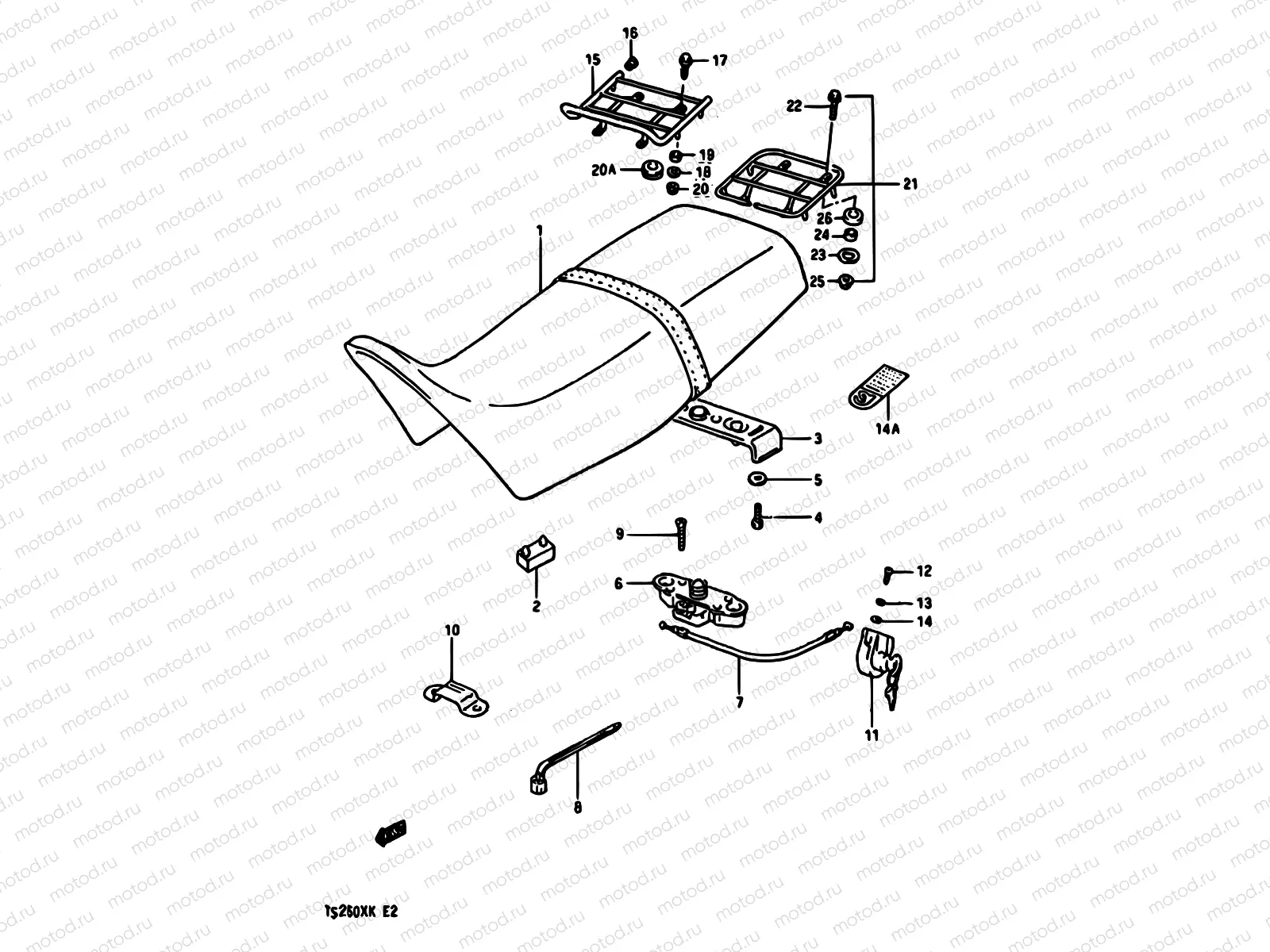

38 - SEAT

38 - SEAT

Например: 45100-36B20-4UZ

1

45100-36B20-4UZ

Seat assy (blue)

1

45100-13A20-58D

Seat assy (blue)

1

45100-13A30-580

Seat assy (blue)

1

45100-36B10-4UZ

Seat assy (blue)

1

45100-36B00-4UZ

Seat assy (blue)

2

09321-08006

САЙЛЕНТБЛОК

194 ₽/шт

3

45210-13A00

.striker,seat lock

4

01500-0620A

Болт

81 ₽/шт

5

08321-0106A

Шайба

81 ₽/шт

6

45220-13601

LOCK ASSY,SEAT STRIKER

5 396 ₽/шт

7

45280-13A01

Кабель замка

1 683 ₽/шт

8

09407-14403

КЛЕММА

221 ₽/шт

9

02112-0630A

Болт

85 ₽/шт

10

45119-13A00

PLATE,SEAT FR HOOK

375 ₽/шт

11

95700-26820

Lock set, seat

12

02112-0510B

Болт

85 ₽/шт

13

08321-0105A

Пластина замка

81 ₽/шт

14

08322-0103B

Шайба

1 370 ₽/шт

14

11967-82000

LABEL

15

46210-13A00

Handle,pillion rider

16

09250-13004

PLUG(OD:17)

119 ₽/шт

17

01550-0620B

БОЛТ

81 ₽/шт

18

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

19

46356-13A00

Spacer

20

08319-31067

Гайка

153 ₽/шт

20

09320-10077

Cushion

1 720 ₽/шт

21

46300-13832

22

01550-0620B

БОЛТ

81 ₽/шт

23

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

24

46356-13A00

.spacer

25

08319-31067

Гайка

153 ₽/шт

26

09320-10077

Cushion

1 720 ₽/шт
