Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI TS 250 SUZUKI TS250X E SUZUKI 13 - RADIATOR (MODEL E)

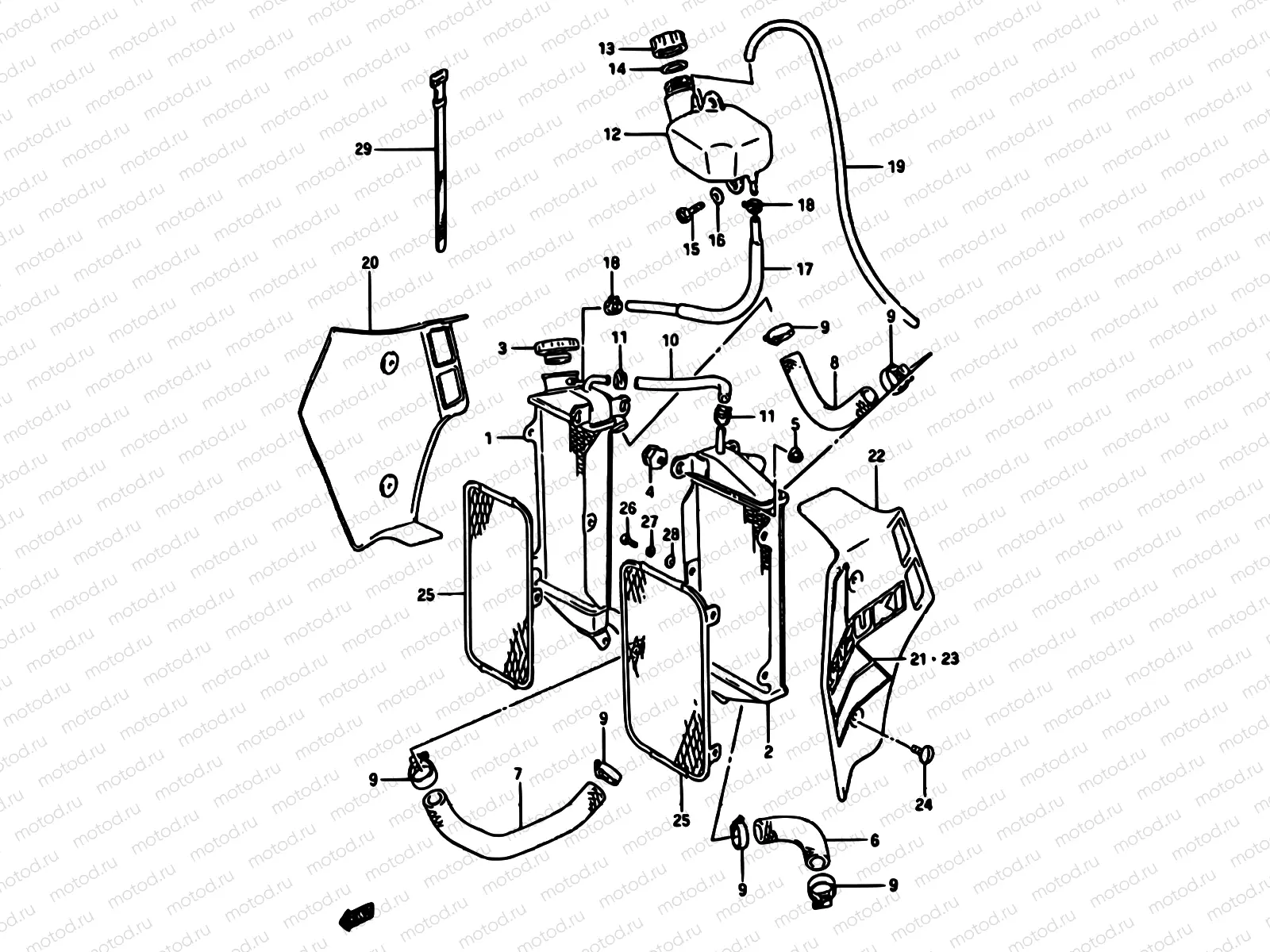

13 - RADIATOR (MODEL E)

13 - RADIATOR (MODEL E)

Например: 17710-13A01

1

17710-13A01

Radiator,water,rh

2

17720-13A02

Radiator,water,lh

3

17730-13A01

Крышка радиатора

8 602 ₽/шт

4

17788-14501

Bolt,radiator Cushion

1 259 ₽/шт

5

08319-31067

Гайка

153 ₽/шт

6

17851-13A01

Hose,radiator,inlet

7

17852-13A00

Hose,radiator,outlet

8

17853-13A01

Hose,radiator,joint

9

09402-28511

CLAMP

307 ₽/шт

10

17854-13810

Hose,rad.bypass

11

09401-13404

Clamp

12

17900-13A00

Tank assy,reserver

13

17845-13700

Cap,reservoir t

14

17844-13700

GASKET,RESERVOIR TANK CAP

196 ₽/шт

15

02162-0616B

Болт

85 ₽/шт

16

09160-06084

Шайба 6.5X18X1

81 ₽/шт

17

17848-13A00

Hose,reserver tank inlet

18

09401-08413

Collier

19

09352-50901-00B

Hose (5x9x1000->00)

1 275 ₽/шт

20

17760-13A00-163

Cover,radiator rh (yellow)

20

17760-13A00-14C

over,radiator rh (red)

20

17760-13A00-21C

over,radiator rh (black)

21

68660-13A00-7EZ

.tape set,radiator cover rh

21

68660-13A00-82M

.tape set,radiator cover rh

21

68660-13A00-7EH

.tape set,radiator cover rh

22

17770-13A00-14C

over,radiator lh (red)

22

17770-13A00-163

Cover,radiator lh (yellow)

22

17770-13A00-21C

over,radiator lh (black)

23

68670-13A00-7EZ

.tape set,radiator cover lh

23

68670-13A00-82M

.tape set,radiator cover lh

23

68670-13A00-7EH

.tape set,radiator cover lh

24

09125-06045

Болт

10 440 ₽/шт

25

17990-13A00

Bumper,radiator

26

02112-0610B

Винт

81 ₽/шт

27

08321-0106A

Шайба

81 ₽/шт

28

08322-0106A

Шайба

81 ₽/шт

29

09407-22403

CLAMP(L:220)

1 370 ₽/шт
