Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI RF 600 SUZUKI RF600R R SUZUKI 39 - FRAME COVER

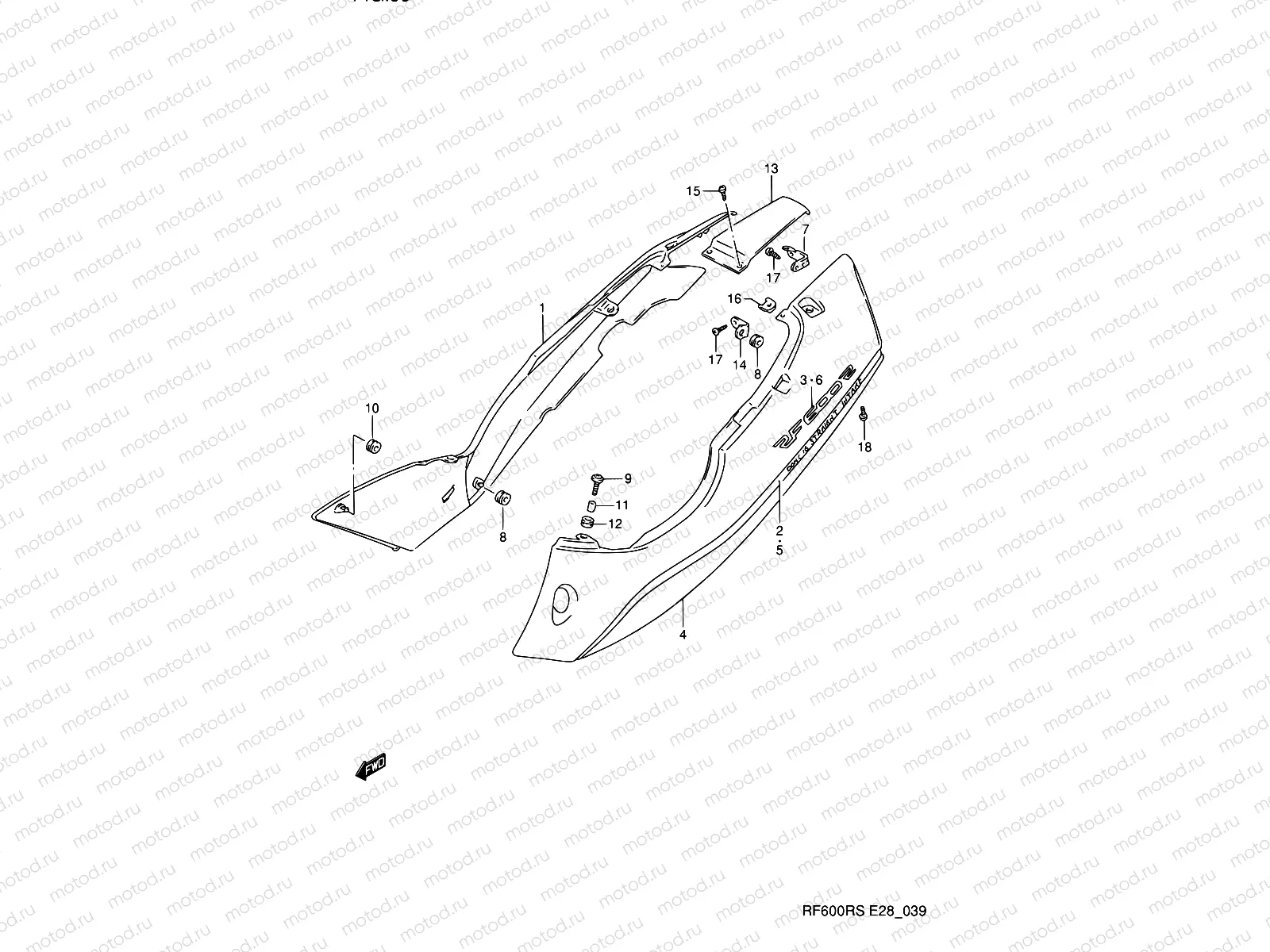

39 - FRAME COVER

39 - FRAME COVER
Например: 47100-21E00-1TY
1
47100-21E00-1TY
Cover, frame rh (red)
1
47100-21E00-34R
Cover, frame rh (blue)
2
68130-21E00-B7G
.tape set, rh
2
68130-21E00-C6A
.tape set, rh
2
68130-21E00-B7H
.tape set, rh
2
68130-21E00-D3M
.tape set, rh
3
68131-21E00-B8S
mblem
3
68131-21E00-C6B
.emblem
3
68131-21E00-B8T
.emblem
3
68131-21E00-D3R
mblem
4
47200-21E00-1TY
Cover,frame,l
4
47200-21E00-34R
Cover, frame lh (blue)
5
68140-21E00-B7G
.tape set, lh
5
68140-21E00-C6A
Tape,fr.cover l
5
68140-21E00-B7H
.tape set, lh
5
68140-21E00-D3M
.tape set, lh
6
68131-21E00-B8S
mblem
6
68131-21E00-C6B
.emblem
6
68131-21E00-B8T
.emblem
6
68131-21E00-D3R
mblem
7
47191-21E00
Bracket,frmc.,r
7
47192-21E00
Bracket,frmc.,l
8
09320-08527
Cushion
1 640 ₽/шт
9
09136-06121
SCREW(6X25)
2 190 ₽/шт
10
47161-21E01
Damper
11
09180-06265
Кольцо/шайба
211 ₽/шт
12
09320-08525
Cushion
3 210 ₽/шт
13
47311-21E00-1TY
Cover,frame,ctr
13
47311-21E00-34R
Cover, frame center (blue)
14
47193-21E00
Bracket,rr lamp
15
02142-0512A
Болт
85 ₽/шт
16
09148-05013
Гайка
97 ₽/шт
17
03541-1412A
Болт
1 210 ₽/шт
18
02142-0512A
Болт
85 ₽/шт
