Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI AG 100 Address V100 SUZUKI AG100 M Address SUZUKI 38 - FRONT FORK (MODEL M/P/T)

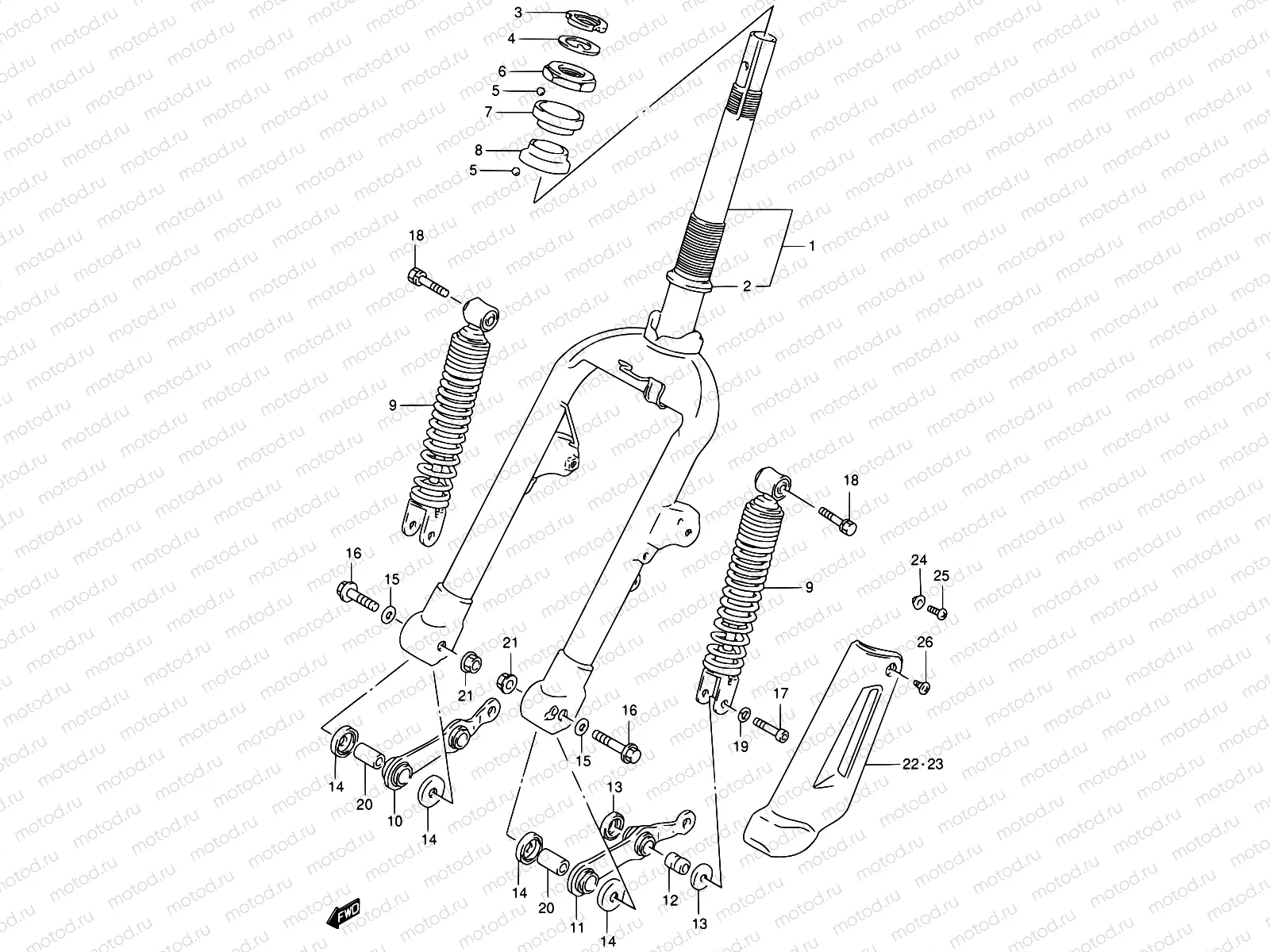

38 - FRONT FORK (MODEL M/P/T)

38 - FRONT FORK (MODEL M/P/T)

Например: 51200-41810-019

1

51200-41810-019

Fork set, front (black)

2

51622-16B00

RACE,STEERING OUTER LWR

817 ₽/шт

3

51631-29C00

NUT,STEERING STEM

457 ₽/шт

4

09166-26001

ШАЙБА ФОРСУНКИ

980 ₽/шт

5

06111-05004

Шарик стальной

82 ₽/шт

6

51621-16A01

RACE,STEERING OUTER UPR

719 ₽/шт

7

51611-16A00-A05

Race,steering i

8

51612-16B00

RACE,STEERING INNER LWR

931 ₽/шт

9

52100-41D00-14B

ABSORBER ASSY,FR SHOCK

11 535 ₽/шт

9

52100-41D00-37W

Absorber, front shock (red)

9

52100-41D00-1EC

Absorber, front shock (green)

9

52100-41D00-0FP

ABSORBER ASSY,FR SHOCK

13 841 ₽/шт

9

52100-41D00-17U

Absorber, front shock (gray)

10

52410-29C00

SUPORTE

11

52430-29C00

ARM,FR SUSPENSION,L

7 038 ₽/шт

12

52431-25E00

SPACER,FR SUSPENSION ARM RR

891 ₽/шт

13

52451-09401

COVER,SUSPENSION ARM,CENTER

14

52452-09401

COVER,SUSPENSION ARM,REAR

15

09181-10186

Шайба

162 ₽/шт

16

09103-10049

Болт верхний

3 680 ₽/шт

17

07130-0835B

Болт

2 310 ₽/шт

18

09117-08089

Болт,8X35

2 070 ₽/шт

19

08321-0108B

Пластина замка

81 ₽/шт

20

52433-16D00

SPACER,FR SUSPENSION RR

918 ₽/шт

21

08319-31107

Гайка

210 ₽/шт

22

52450-29C00-291

OVER SET,FR FORK

2 248 ₽/шт

24

09169-05009

Шайба

1 640 ₽/шт

25

02112-0510B

Болт

85 ₽/шт
