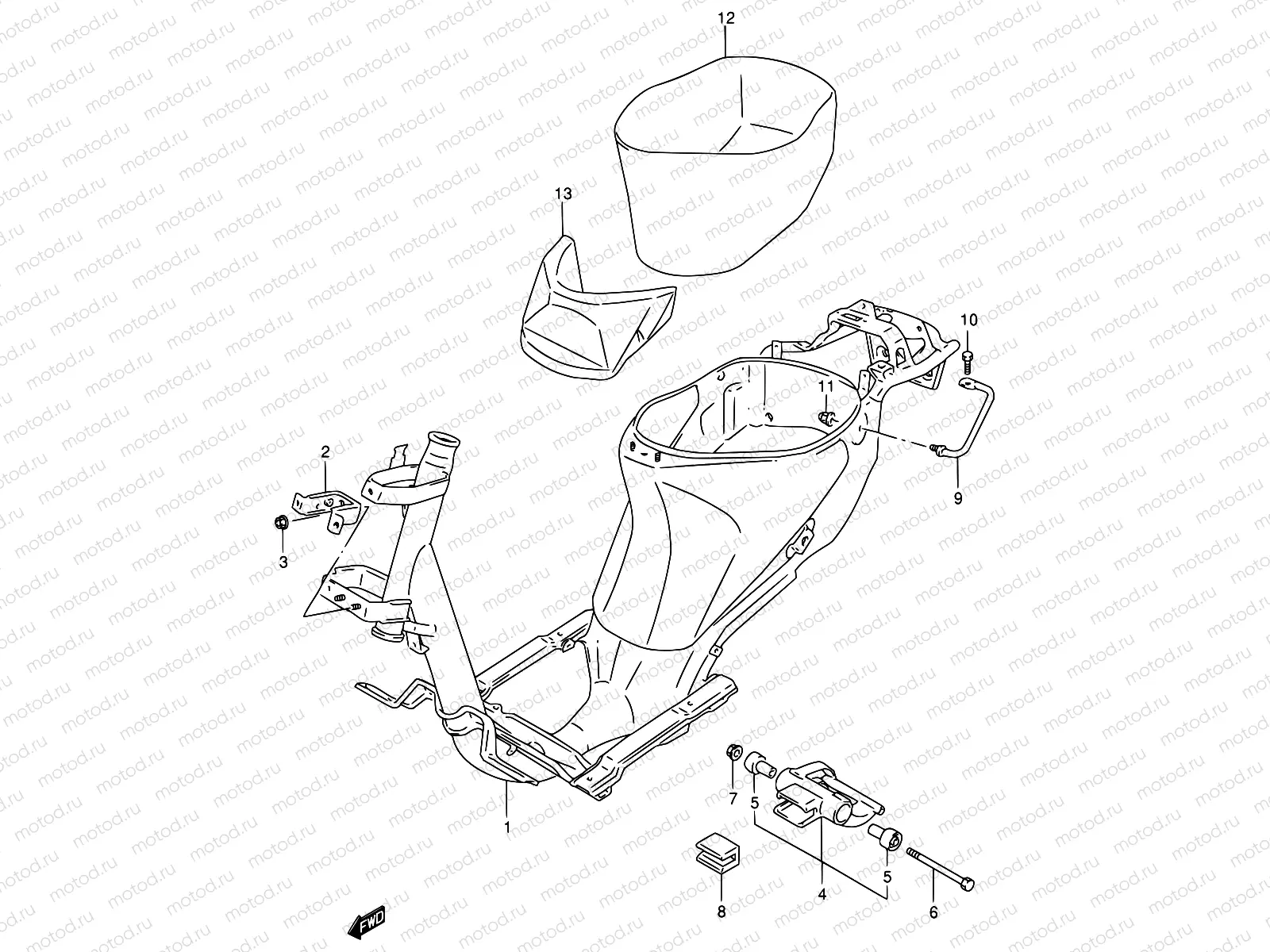

23 - FRAME

23 - FRAME

Например: 41100-41D00-28C

1

41100-41D00-28C

Frame (gray)

1

41100-41D00-17U

Frame (gray)

1

41100-41D00-13Z

Frame (black)

2

41150-39C51

BRACKET

3

08319-31067

Гайка

153 ₽/шт

4

41180-41810

Bracket set, crankcase

5

09319-12048

Втулка

18 770 ₽/шт

6

09103-12045

BOLT(12X140)

6 650 ₽/шт

7

08319-3112A

Гайка

211 ₽/шт

8

41185-41D00

CUSHION,SWING STOP

880 ₽/шт

9

43980-40D00-10V

Grip, stand (white)

9

43980-40D00-17U

Grip, stand (gray)

9

43980-40D00-13Z

Grip, stand (black)

10

01550-0812B

Болт

97 ₽/шт

11

08313-20087

Гайка

1 330 ₽/шт

12

92211-40D00-5LZ

Cover, helmet (blue)

13

92221-40D00

Guide, cover helmet
