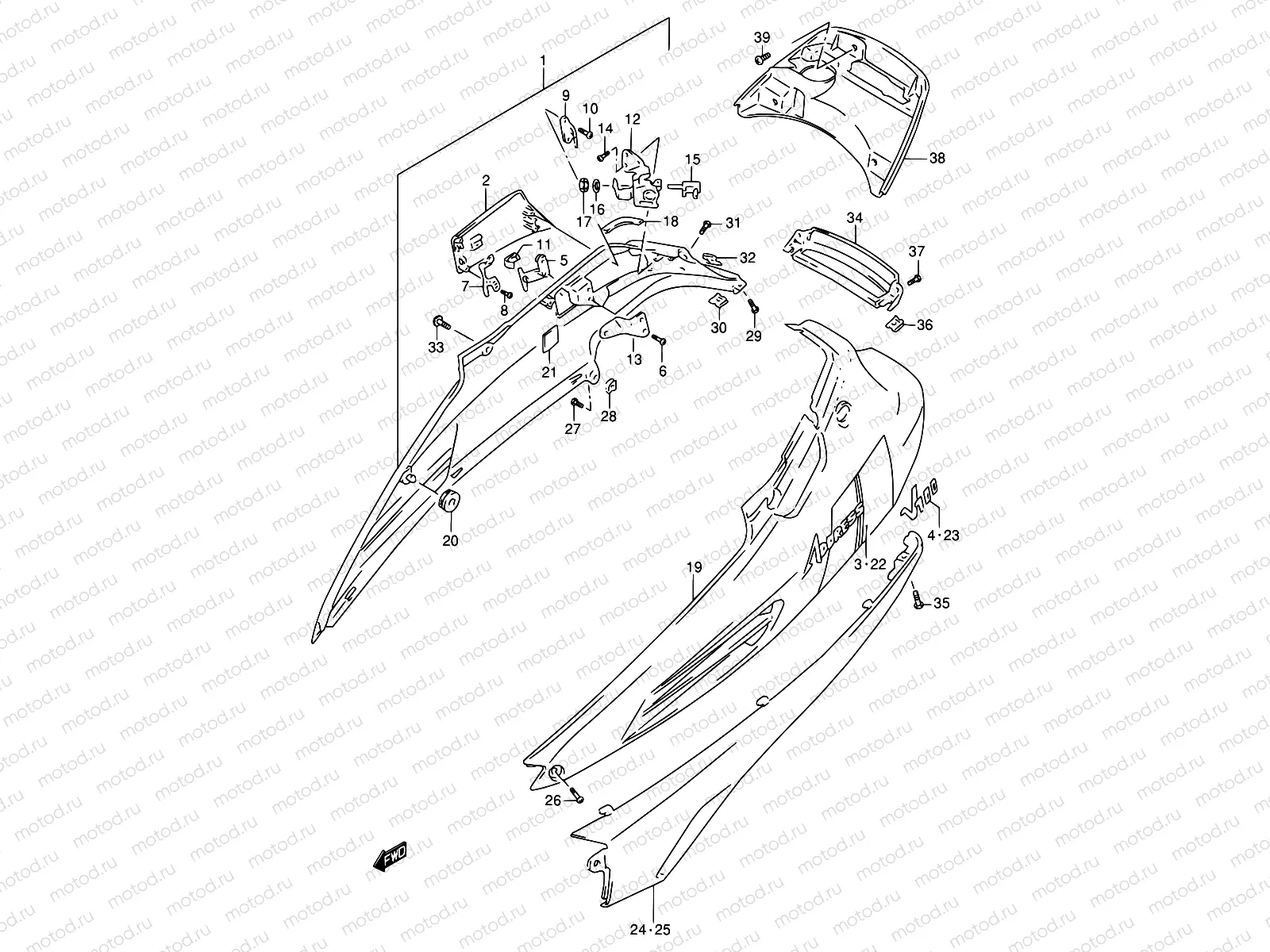

29 - FRAME COVER (MODEL M)

29 - FRAME COVER (MODEL M)

Например: 47100-41D00-10V

1

47100-41D00-10V

Cover assy, side rh (white)

1

47100-41D00-17U

Cover assy, side rh (gray)

1

47100-41D00-13Z

Cover assy, side rh (black)

2

47311-40D00-10V

LID,FUEL FILLER(WHITE)

5 474 ₽/шт

2

47311-40D00-17U

.lid, fuel filler (gray)

2

47311-40D00-13Z

.lid, fuel filler (black)

3

68131-41D00-1GP

.emblem, side cover rh

3

68131-41D00-1GN

.emblem, side cover rh

3

68131-41D00-1GM

.emblem, side cover rh

4

68132-41D00-1GV

.emblem, side "v100"

5

47312-40D11

HINGE,FUEL LID

1 771 ₽/шт

6

03541-0512B

Винт

81 ₽/шт

7

47313-40D20-10V

.plate, fuel lid (white)

7

47313-40D20-17U

.plate, fuel lid (gray)

7

47313-40D20-019

.plate, fuel lid (black)

8

03541-0410A

Болт

85 ₽/шт

9

47314-40D00

HOOK,FUEL LID

1 771 ₽/шт

10

03541-0512B

Винт

81 ₽/шт

11

47315-40D00

SPRING,FUEL LID RETURN

751 ₽/шт

12

47920-40D00

BRACKET,FUEL LID LOCK

1 075 ₽/шт

13

47922-40D00

.bracket, fuel lid no.2

14

03541-0510A

Болт

72 ₽/шт

15

76520-40D00

OPENER ASSY,FUEL LID

2 561 ₽/шт

16

08321-01107

Шайба, стопорная

85 ₽/шт

17

08310-00107

Гайка

85 ₽/шт

18

47161-40D00

Cushion, fuel lid tape

19

47211-40D00-10V

Cover, side lh (white)

19

47211-40D00-17U

Cover, side lh (gray)

19

47211-40D00-13Z

Cover, side lh (black)

20

09320-08049

САЙЛЕНТБЛОК

211 ₽/шт

21

63191-25C00

USHION

204 ₽/шт

22

68141-41D00-1GP

Emblem, side cover lh

22

68141-41D00-1GN

Emblem, side cover lh

22

68141-41D00-1GM

Emblem, side cover lh

23

68132-41D00-1GV

Emblem, side "v100"

24

47131-41D00-291

COVER,SIDE LWR,R

7 116 ₽/шт

24

47131-41D00-1GK

COVER,SIDE LWR,R

5 435 ₽/шт

25

47231-41D00-291

COVER,SIDE LWR,L

5 904 ₽/шт

25

47231-41D00-1GK

COVER,SIDE LWR,L

5 435 ₽/шт

26

02142-1512B

Болт

1 370 ₽/шт

27

03241-0516A

Винт

81 ₽/шт

28

09148-05020

Гайка

97 ₽/шт

29

03541-0412A

ШАЙБА

85 ₽/шт

30

09148-04024

Гайка

97 ₽/шт

31

03241-1516A

ШАЙБА

82 ₽/шт

32

09148-05013

Гайка

97 ₽/шт

33

02142-1612B

Болт

1 370 ₽/шт

34

47321-40D00-291

Крышка

1 673 ₽/шт

34

47321-40D00-1GK

Cover, rear (gray)

35

03241-0516A

Винт

81 ₽/шт

36

09148-05020

Гайка

97 ₽/шт

37

03241-M0512-A

Vis

38

47341-40D00

Cover, upper

39

02142-06127

Винт 6X12

81 ₽/шт
