Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GN 125 SUZUKI GN125 W SUZUKI (VIN: NF41A) 35 - HANDLE LEVER

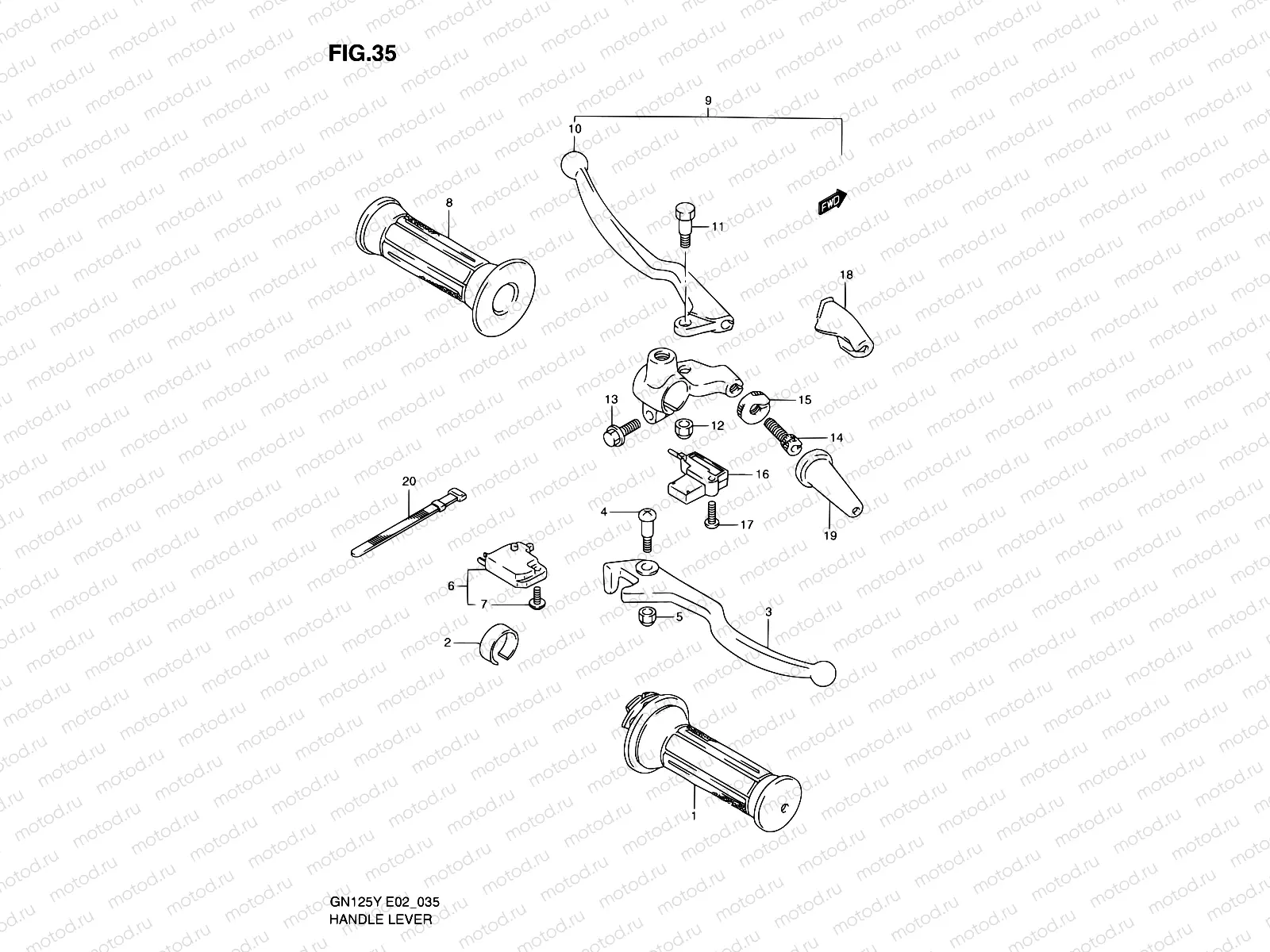

35 - HANDLE LEVER

35 - HANDLE LEVER

Например: 57110-34300

1

57110-34300

GRIP,THROTTLE

2 698 ₽/шт

2

56115-05300

SPACER,HANDLE SWITCH,R

360 ₽/шт

3

57421-13001

LEVER BRAKE

1 583 ₽/шт

4

09111-06075

Болт

4 380 ₽/шт

5

08319-2106A

Гайка

114 ₽/шт

6

57460-14J02

Switch Assy,stop

3 366 ₽/шт

7

57465-17C00

Болт

170 ₽/шт

8

57211-34300

Рукоятка, левая

1 103 ₽/шт

9

57500-05390

Levier embrayage

10

57620-05390

Рукоятка муфты

2 659 ₽/шт

11

57431-21D11

BOLT,LEVER PIVOT

544 ₽/шт

12

57433-09F00

Гайка

227 ₽/шт

13

01547-0620B

БОЛТ

81 ₽/шт

14

57441-45C01

Adjuster,wire

731 ₽/шт

15

57442-45C01

Nut,lock

708 ₽/шт

16

57560-05A00

ПЕРЕКЛЮЧАТЕЛЬ

816 ₽/шт

17

02122-0320A

Болт

82 ₽/шт

18

57661-31000

COVER CLUTCH REAR

442 ₽/шт

19

58273-31001

ПЫЛЬНИК ТРОСА СЦЕПЛЕНИЯ

187 ₽/шт

20

09407-12402

Струбцина

211 ₽/шт

Узлы для GN125 W SUZUKI (VIN: NF41A)

45A - REAR WHEEL (GN125EV/EW/EX/EY/EK1)

45A - REAR WHEEL (GN125EV/EW/EX/EY/EK1)

45 - REAR WHEEL (GN125V/W/X/Y/K1)

45 - REAR WHEEL (GN125V/W/X/Y/K1)

42 - FRONT MASTER CYLINDER

42 - FRONT MASTER CYLINDER

41 - FRONT CALIPER

41 - FRONT CALIPER

40A - FRONT WHEEL (GN125EV/EW/EX/EY/EK1)

40A - FRONT WHEEL (GN125EV/EW/EX/EY/EK1)

40 - FRONT WHEEL (GN125V/W/X/Y/K1)

40 - FRONT WHEEL (GN125V/W/X/Y/K1)

39 - STEERING STEM (MODEL V/W/X)

39 - STEERING STEM (MODEL V/W/X)

38 - FRONT DAMPER

38 - FRONT DAMPER

44 - REAR SHOCK ABSOBER

44 - REAR SHOCK ABSOBER

43 - REAR SWINGING ARM

43 - REAR SWINGING ARM

36 - REAR FENDER (MODEL V/W/X)

36 - REAR FENDER (MODEL V/W/X)

35 - HANDLE LEVER

35 - HANDLE LEVER

34 - HANDLEBAR - FRONT CABLE

34 - HANDLEBAR - FRONT CABLE

33 - FRONT FENDER - HEADLAMP HOUSING

33 - FRONT FENDER - HEADLAMP HOUSING

32 - FRAME COVER (MODEL V/W)

32 - FRAME COVER (MODEL V/W)

27 - STAND (MODEL V/W/X)

27 - STAND (MODEL V/W/X)

26 - FRAME (MODEL V/W/X)

26 - FRAME (MODEL V/W/X)

25 - HANDLE SWITCH

25 - HANDLE SWITCH

24A - WIRING HARNESS (MODEL V/W/X/Y/K1 E01,E30)

24A - WIRING HARNESS (MODEL V/W/X/Y/K1 E01,E30)

24 - WIRING HARNESS (MODEL V/W/X/Y/K1)

24 - WIRING HARNESS (MODEL V/W/X/Y/K1)

23D - REAR COMBINATION LAMP (MODEL Y/K1 E02,E04,E18,E21,E22,E71)

23D - REAR COMBINATION LAMP (MODEL Y/K1 E02,E04,E18,E21,E22,E71)

23C - REAR COMBINATION LAMP (MODEL V/W/X/Y/K1 E01,E30)

23C - REAR COMBINATION LAMP (MODEL V/W/X/Y/K1 E01,E30)

23B - REAR COMBINATION LAMP (MODEL V/W/X E18,E22)

23B - REAR COMBINATION LAMP (MODEL V/W/X E18,E22)

23A - REAR COMBINATION LAMP (MODEL V/W/X E02,E04,E21)

23A - REAR COMBINATION LAMP (MODEL V/W/X E02,E04,E21)

23 - REAR COMBINATION LAMP (MODEL V/W/X E01,E71,P09)

23 - REAR COMBINATION LAMP (MODEL V/W/X E01,E71,P09)

22B - TURN SIGNAL LAMP (MODEL V/W/X/Y/K1 E01,E30)

22B - TURN SIGNAL LAMP (MODEL V/W/X/Y/K1 E01,E30)

22A - FRONT TURN SIGNAL LAMP (MODEL Y/K1 E02,E04,E18,E21,E22,E71)

22A - FRONT TURN SIGNAL LAMP (MODEL Y/K1 E02,E04,E18,E21,E22,E71)

22 - TURN SIGNAL LAMP (MODEL V/W/X E01,E02,E04,E18,E21,E22,E71,P09)

22 - TURN SIGNAL LAMP (MODEL V/W/X E01,E02,E04,E18,E21,E22,E71,P09)

21C - HEADLAMP (MODEL V/W/X/Y/K1 E01,E30)

21C - HEADLAMP (MODEL V/W/X/Y/K1 E01,E30)

21B - HEADLAMP (MODEL Y/K1 E04,E18,E21,E22)

21B - HEADLAMP (MODEL Y/K1 E04,E18,E21,E22)

21A - HEADLAMP (MODEL V/W/X/K1 E04,E18,E21,E22)

21A - HEADLAMP (MODEL V/W/X/K1 E04,E18,E21,E22)

21 - HEADLAMP (MODEL V/W/X/Y/K1 E02,E71,P09)

21 - HEADLAMP (MODEL V/W/X/Y/K1 E02,E71,P09)

20A - SPEEDOMETER - TACHOMETER (MODEL V/W/X/Y/K1 E01,E30)

20A - SPEEDOMETER - TACHOMETER (MODEL V/W/X/Y/K1 E01,E30)

20 - SPEEDOMETER - TACHOMETER (MODEL V/W/X/Y/K1)

20 - SPEEDOMETER - TACHOMETER (MODEL V/W/X/Y/K1)

19 - ELECTRICAL

19 - ELECTRICAL

16 - STARTING MOTOR (MODEL V/W/X/Y)

16 - STARTING MOTOR (MODEL V/W/X/Y)

30 - FUEL TANK (MODEL V/W)

30 - FUEL TANK (MODEL V/W)

15 - GEAR SHIFTING

15 - GEAR SHIFTING

14 - TRANSMISSION

14 - TRANSMISSION

10 - AIR CLEANER

10 - AIR CLEANER

7 - CAM SHAFT - VALVE

7 - CAM SHAFT - VALVE

6 - STARTER CLUTCH

6 - STARTER CLUTCH

4 - CRANKCASE COVER

4 - CRANKCASE COVER

1 - CYLINDER HEAD

1 - CYLINDER HEAD
