Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GN 125 SUZUKI GN125 W SUZUKI (VIN: NF41A) 21A - HEADLAMP (MODEL V/W/X/K1 E04,E18,E21,E22)

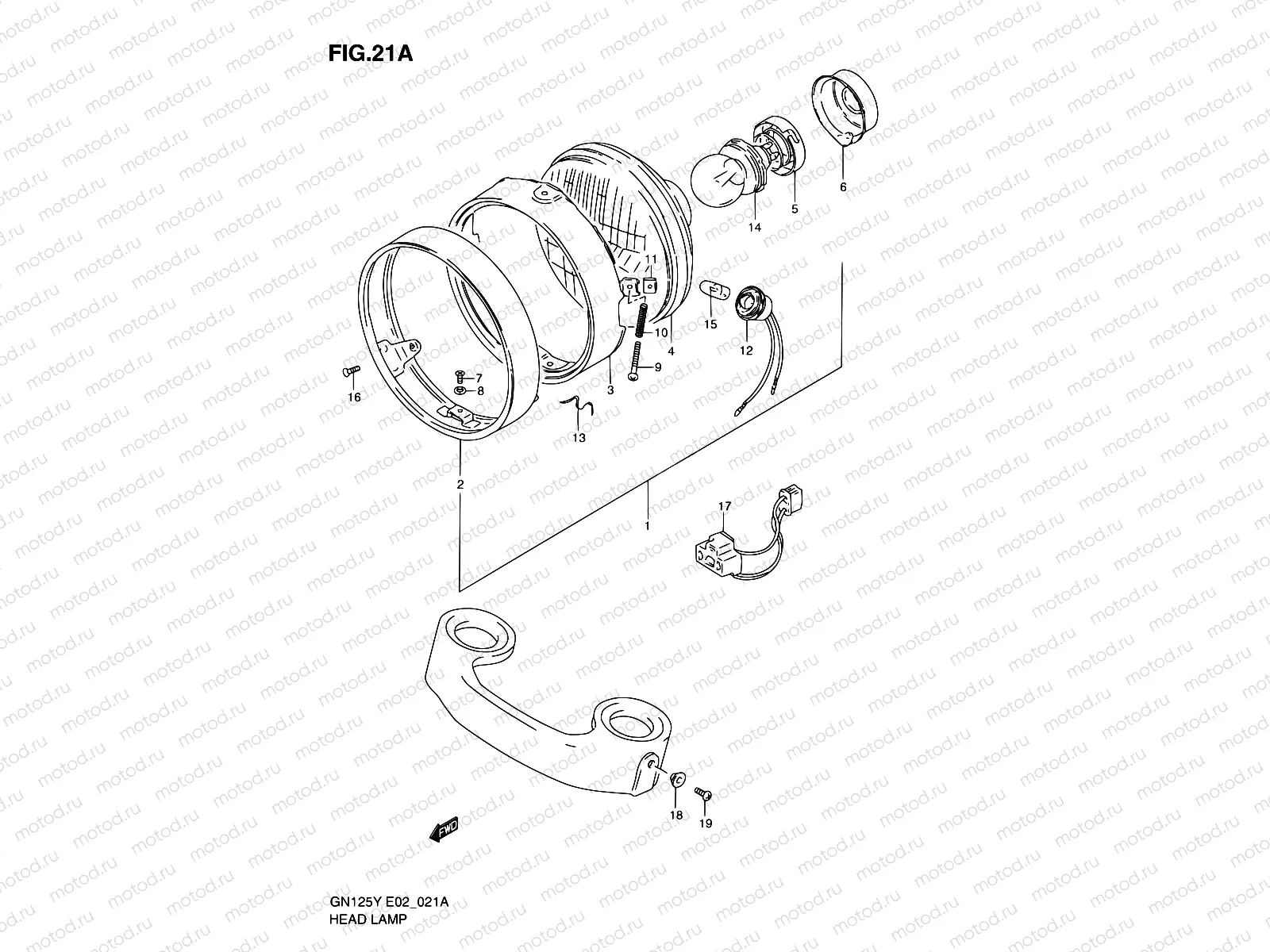

21A - HEADLAMP (MODEL V/W/X/K1 E04,E18,E21,E22)

21A - HEADLAMP (MODEL V/W/X/K1 E04,E18,E21,E22)

Например: 35100-44260-999

1

35100-44260-999

Optique de phare

2

35111-44250

Rim,head lamp

3

35127-29610

.ring

4

35121-44260

Unit,head lamp

5

35136-34670

Setter,head lam

6

35179-72600

.cover

7

35136-29610

SCREW,HEAD LAMP UNIT

8

08321-0105A

Пластина замка

81 ₽/шт

9

35151-31610

Vis

10

35154-33630

Spring

11

35152-15611

Гайка

231 ₽/шт

12

36118-30500

Socket,parking

13

35128-46720

Spring

14

997SO-12048

15

09471-12063-LCP

Bulb 6v/1,7w

16

02122-05127

Болт

1 090 ₽/шт

17

36853-30500

LEAD WIRE,HEADLAMP

938 ₽/шт

18

09169-05008

Шайба

162 ₽/шт

19

02142-05087

Винт 5X8 CROSS

85 ₽/шт
