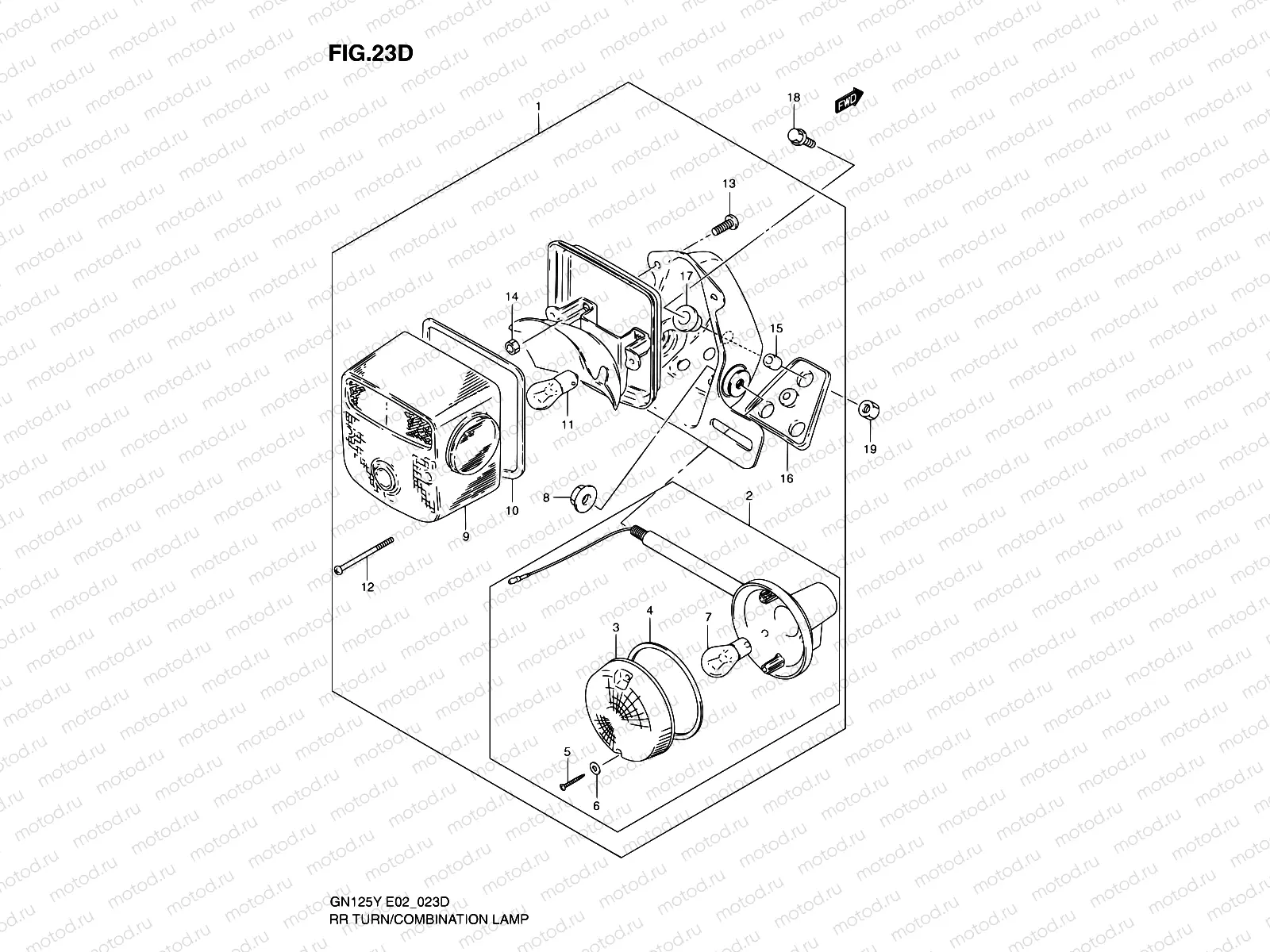

23D - REAR COMBINATION LAMP (MODEL Y/K1 E02,E04,E18,E21,E22,E71)

23D - REAR COMBINATION LAMP (MODEL Y/K1 E02,E04,E18,E21,E22,E71)

Например: 35710-383B0

1

35710-383B0

Lamp assy, rear & rear turn

2

35603-39380

Lamp,rr.turn

3

35652-02470

Линза

731 ₽/шт

4

35613-28620

Прокладка

239 ₽/шт

5

03211-04207

Болт

85 ₽/шт

6

35627-43010

GASKET

179 ₽/шт

7

40503-00838-120

Bulb (12V 21W BA15s)

8

08310-0010B

Гайка

85 ₽/шт

9

35712-38350

Линза

10 965 ₽/шт

10

35713-30510

Gasket

11

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

12

02112-04558

Болт

82 ₽/шт

13

02112-3616A

Болт

1 210 ₽/шт

14

08310-00067

Гайка

81 ₽/шт

15

35766-26470

Кольцо/шайба

141 ₽/шт

16

35765-26470

CUSHION

555 ₽/шт

17

35764-26470

CUSHION

172 ₽/шт

18

09116-06167

БОЛТ

145 ₽/шт

19

08319-31067

Гайка

153 ₽/шт
