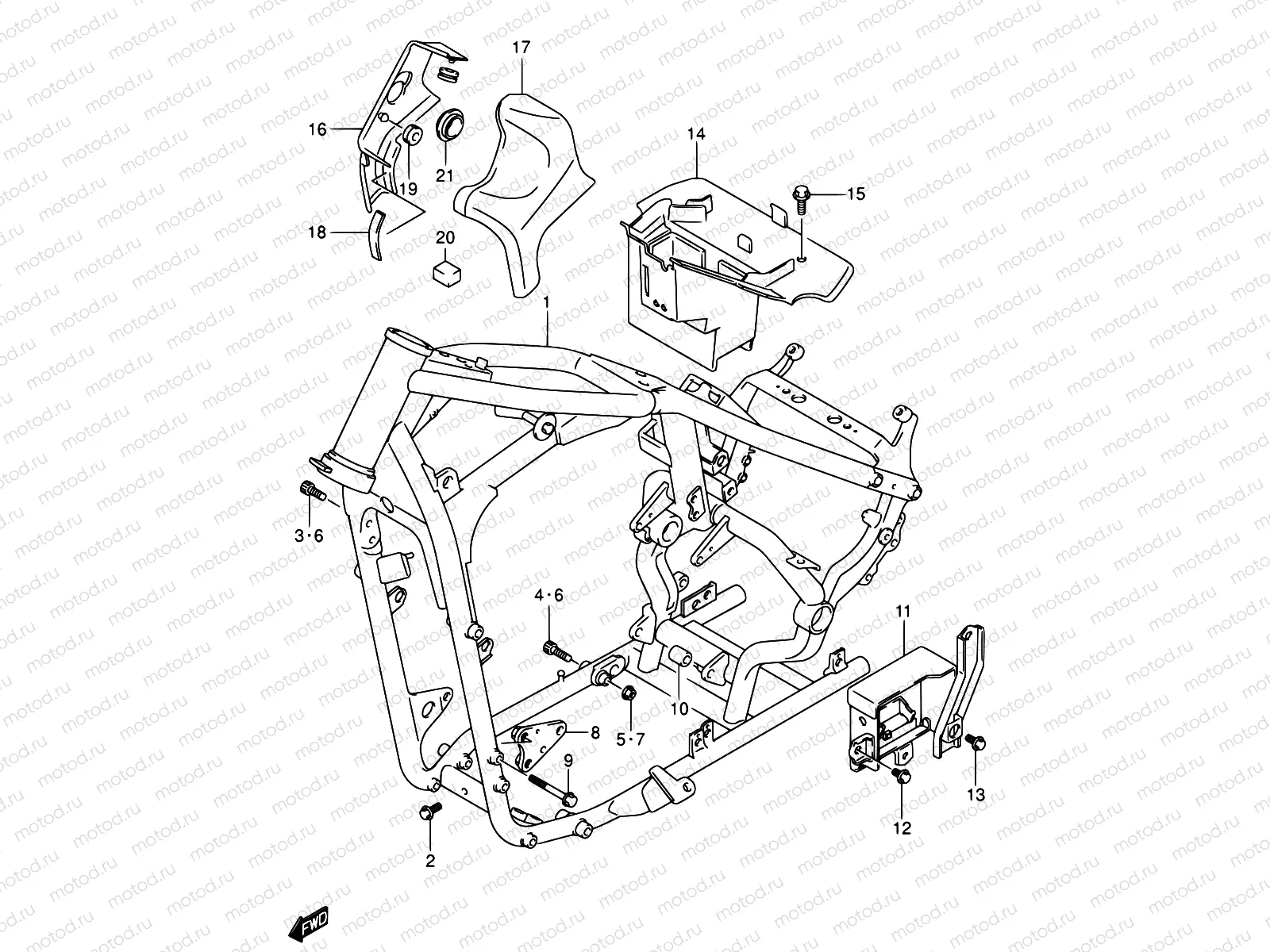

35 - FRAME

35 - FRAME

Например: 41100-41F11-019

1

41100-41F11-019

RAME(BLACK)

2

01550-0816B

Болт крепёжный

97 ₽/шт

6

07130-1035B

Болт

179 ₽/шт

7

08319-3110B

Гайка

1 920 ₽/шт

8

41920-41F00

PLATE,ENGINE MOUNT NO.1,L

1 380 ₽/шт

9

09112-08013

BOLT(8X65)

2 580 ₽/шт

10

41941-41F00

SPACER,ENG MTG LR

676 ₽/шт

11

41540-41F30

HOLDER,ELECTRIC PARTS

5 279 ₽/шт

12

01550-0612B

БОЛТ

81 ₽/шт

13

01550-0816B

Болт крепёжный

97 ₽/шт

14

47410-41F02

HOLDER,ELECTRIC PARTS

4 653 ₽/шт

15

09113-06001

БОЛТ

129 ₽/шт

16

47351-41F01-019

COVER,FRAME HEAD,R(BLACK)

6 460 ₽/шт

17

47361-41F02-019

COVER,FRAME HEAD,L(BLACK)

5 865 ₽/шт

18

53145-40A00

CUSHION,FR FENDER

170 ₽/шт

19

09320-08527

Cushion

1 640 ₽/шт

20

17798-39G00

ДЕТАЛЬ

204 ₽/шт

21

47355-41F01

CAP

578 ₽/шт
