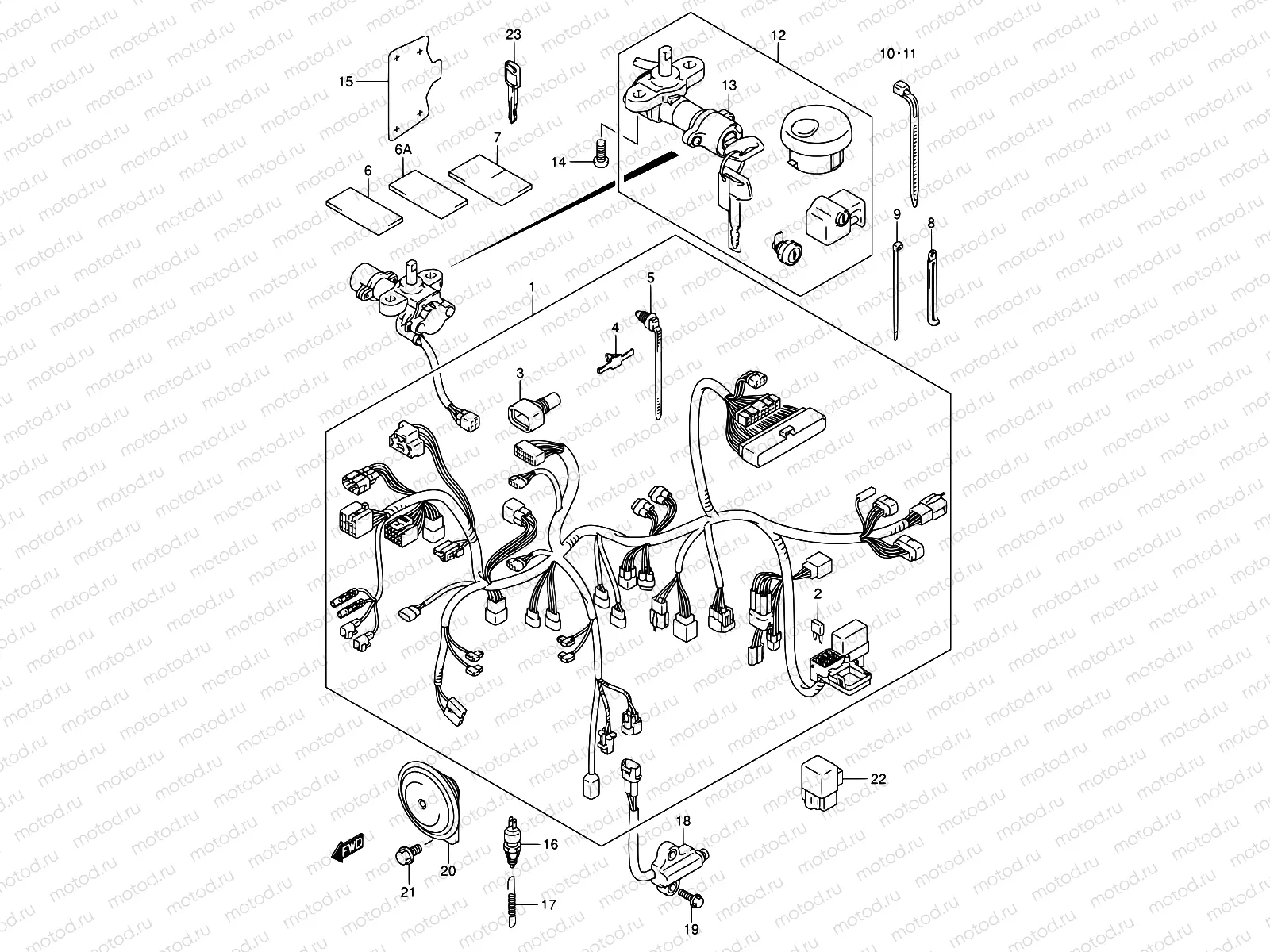

33C - WIRING HARNESS (VL800K5)

33C - WIRING HARNESS (VL800K5)

Например: 36610-41FD0

1

36610-41FD0

Harness,wiring

2

09481-10504

Ограничитель,10A

1 250 ₽/шт

2

09481-15501-LCP

Fusible (10A)

3

36618-33E00

COVER,SPEEDOMETER COUPLER

438 ₽/шт

4

09407-05410

CLAMP

2 970 ₽/шт

5

09407-17403

CLAMP ,L:154

306 ₽/шт

6

36611-16G00

TAPE,WIRING HARNESS(28X50X0.13

152 ₽/шт

6

36920-02200

COVER,HARNESS

192 ₽/шт

7

36920-33C00

PROTECTOR,HARNESS(30X50X3)

152 ₽/шт

8

09404-06036

Clamp(L:80)

194 ₽/шт

8

09404-06435

CLAMP(L:135)

226 ₽/шт

9

09407-14407

ЗАЖИМ

221 ₽/шт

10

09407-18402

Струбцина (L:165)

211 ₽/шт

11

09407-22403

CLAMP(L:220)

1 370 ₽/шт

12

37100-41850

Lock set

12

37101-41850

Lock set

13

37100-41F50

LOCK ASSY,STEERING

23 971 ₽/шт

13

37100-41F90

LOCK ASSY,STEERING

23 739 ₽/шт

14

09139-08016

БОЛТ ПЕТЛИ ДВЕРИ (8X20)

170 ₽/шт

15

37187-41F10

PROTECTOR,IGNITION SWITCH

962 ₽/шт

16

37740-45D00

SWITCH ASSY,STOP LAMP

1 224 ₽/шт

17

09443-06073

ПРУЖНА

226 ₽/шт

18

37840-41F01

Switch Assy,Side Stand

5 904 ₽/шт

19

01550-0620B

БОЛТ

81 ₽/шт

20

38500-41F10

Звуковой сигнал

5 943 ₽/шт

21

01550-0816B

Болт крепёжный

97 ₽/шт

22

38740-24X50

RELAY ASSY, HEAD LAMP

2 665 ₽/шт

23

37146-41F10

KEY,BLANK

1 779 ₽/шт
