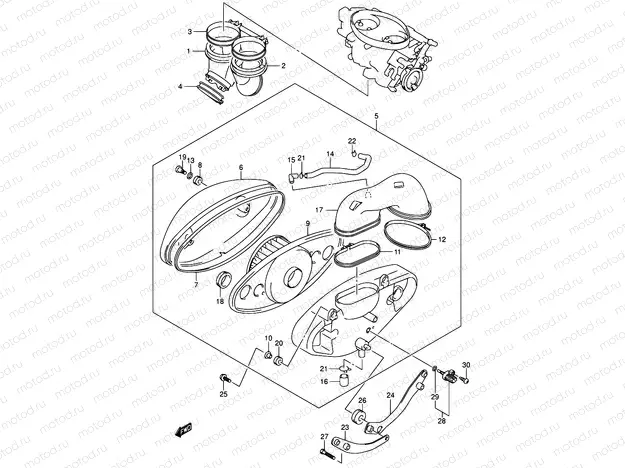

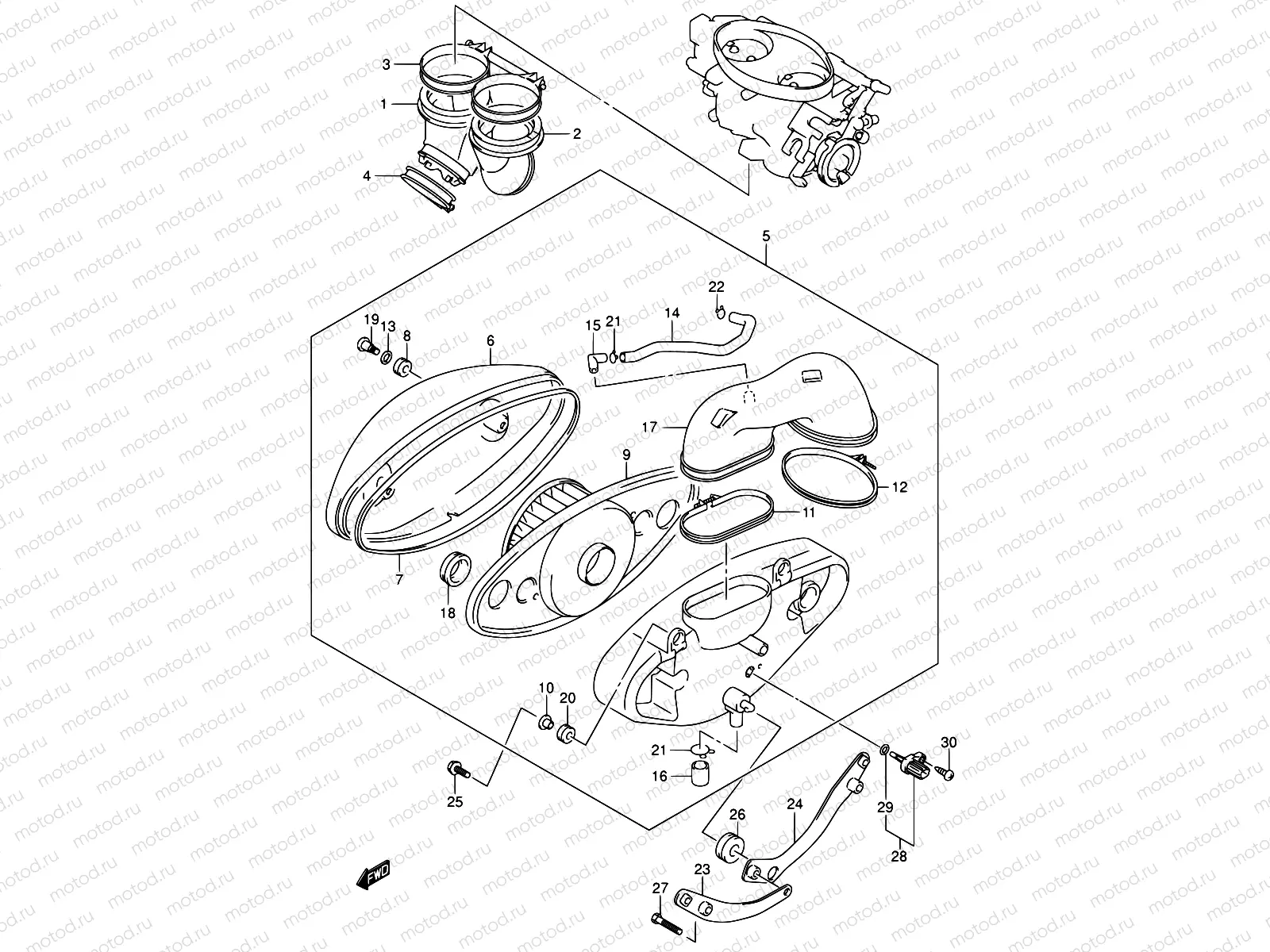

12A - AIR CLEANER (MODEL K5)

12A - AIR CLEANER (MODEL K5)

Например: 13111-41F01

1

13111-41F01

Pipe,intake No.1

4 080 ₽/шт

2

13121-41F01

Pipe,intake No.2

4 080 ₽/шт

3

13170-41F00

CLAMP,INTAKE PIPE

2 992 ₽/шт

4

13170-15G00

Лента

393 ₽/шт

5

13700-41F21

Cleaner Assy,air

47 529 ₽/шт

6

13741-41F00

Крышка

24 650 ₽/шт

7

13746-41F00

Прокладка

1 567 ₽/шт

8

13747-41F00

CUSHION

188 ₽/шт

9

13780-41F20

ILTER ASSY

7 521 ₽/шт

10

13812-29C50

OLLAR,CLEANER CASE

141 ₽/шт

11

13826-41F00

CLAMP

1 322 ₽/шт

12

13826-41F11

CLAMP

1 935 ₽/шт

13

13833-41F00

Шайба

250 ₽/шт

14

13853-41F11

Tube,breather

2 209 ₽/шт

15

13858-14D20

Соединение

782 ₽/шт

16

13859-41B10

Заглушка

323 ₽/шт

17

13881-41F11

Tube,outlet

8 446 ₽/шт

18

13891-41F20

Трубка впуска

1 143 ₽/шт

19

09139-06126

БОЛТ МЕТАЛЛ (6х20)

194 ₽/шт

20

09320-09016

РЕЗИНКА

162 ₽/шт

21

09401-14301

ХОМУТ МАЛЫЙ

226 ₽/шт

22

09401-16301

Хомут

1 370 ₽/шт

23

13760-41F00

BRACKET,AIR CLEANER FR

1 870 ₽/шт

24

13770-41F00

BRACKET,AIR CLEANER RR

2 720 ₽/шт

25

09139-06063

Винт

2 230 ₽/шт

26

09320-08527

Cushion

1 640 ₽/шт

27

01500-0625B

Болт

1 330 ₽/шт

28

13650-41F10

Сенсор температуры воздуха

4 335 ₽/шт

29

13655-41F10

O RING

567 ₽/шт

30

03511-0516B

Болт

82 ₽/шт
