Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI AN 250 Burgman SUZUKI AN250 X Burgman SUZUKI (VIN: JS1AN121, JS1AN131) 20 - TRANSMISSION (1)(MODEL W/X/Y)

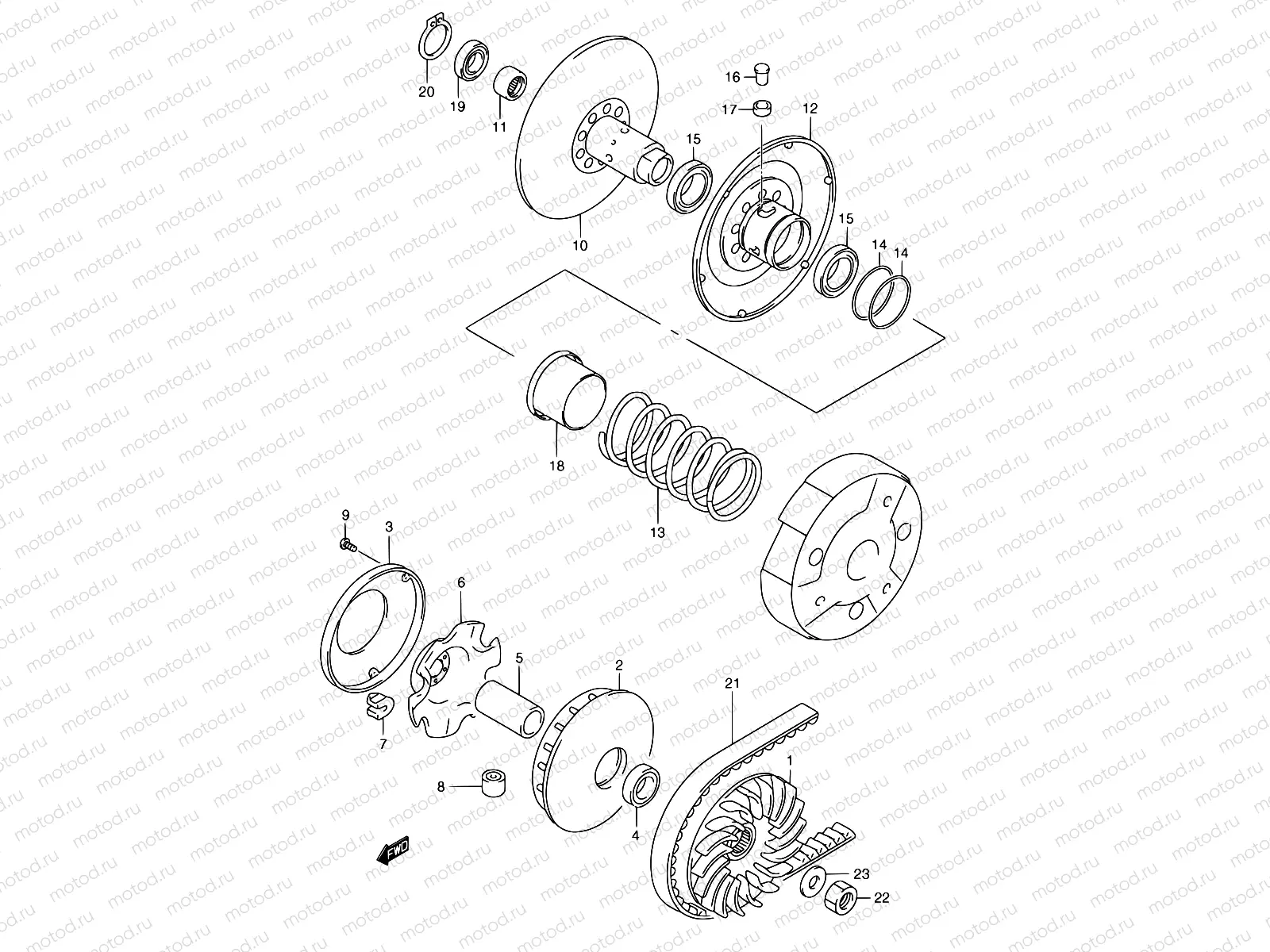

20 - TRANSMISSION (1)(MODEL W/X/Y)

20 - TRANSMISSION (1)(MODEL W/X/Y)

Например: 21110-14F01

1

21110-14F01

ACE,FIXED DRIVE

6 999 ₽/шт

2

21120-14F01

ACE,MOVABLE DRIVE

10 455 ₽/шт

3

21122-14F00

COVER,MOVABLE DRIVE

493 ₽/шт

4

21124-14F00

SEAL,MOVABLE DRIVE FACE OIL

549 ₽/шт

5

21125-14F00

SPACER,MOVABLE DRIVE

1 818 ₽/шт

6

21431-14F10

PLATE,MOVABLE DRIVE

1 447 ₽/шт

7

21481-14F00

Слайдер

339 ₽/шт

8

21650-14F10

Ролик ведущего вариатора

1 259 ₽/шт

9

02142-0410A

Винт

81 ₽/шт

10

21210-14F01

ACE,FIXED DRIVEN

14 467 ₽/шт

11

21214-14F01

Bearing,fixed Driven,r

2 248 ₽/шт

12

21240-14F01

ACE,MOVABLE DRIVEN

12 004 ₽/шт

13

21243-14F01

SPRING,MOVABLE DRIVEN

2 092 ₽/шт

14

21245-14F00

O RING,MOVABLE DRIVEN

293 ₽/шт

15

21247-14F00

SEAL,MOVABLE DRIVEN OIL

626 ₽/шт

16

21248-14F10

PIN,MOVABLE DRIVEN

332 ₽/шт

17

21249-14F00

SPACER,MOVABLE DRIVEN PIN

356 ₽/шт

18

21471-14F00

SHEET,MOVABLE DRIVEN

1 380 ₽/шт

19

09262-15053

Ball bearing 8

20

08331-41289

CIRCLIP

162 ₽/шт

21

27601-14F01

V-BELT,DRIVE

22 745 ₽/шт

22

09140-16005

Гайка

275 ₽/шт

23

08322-01167

Шайба

85 ₽/шт
