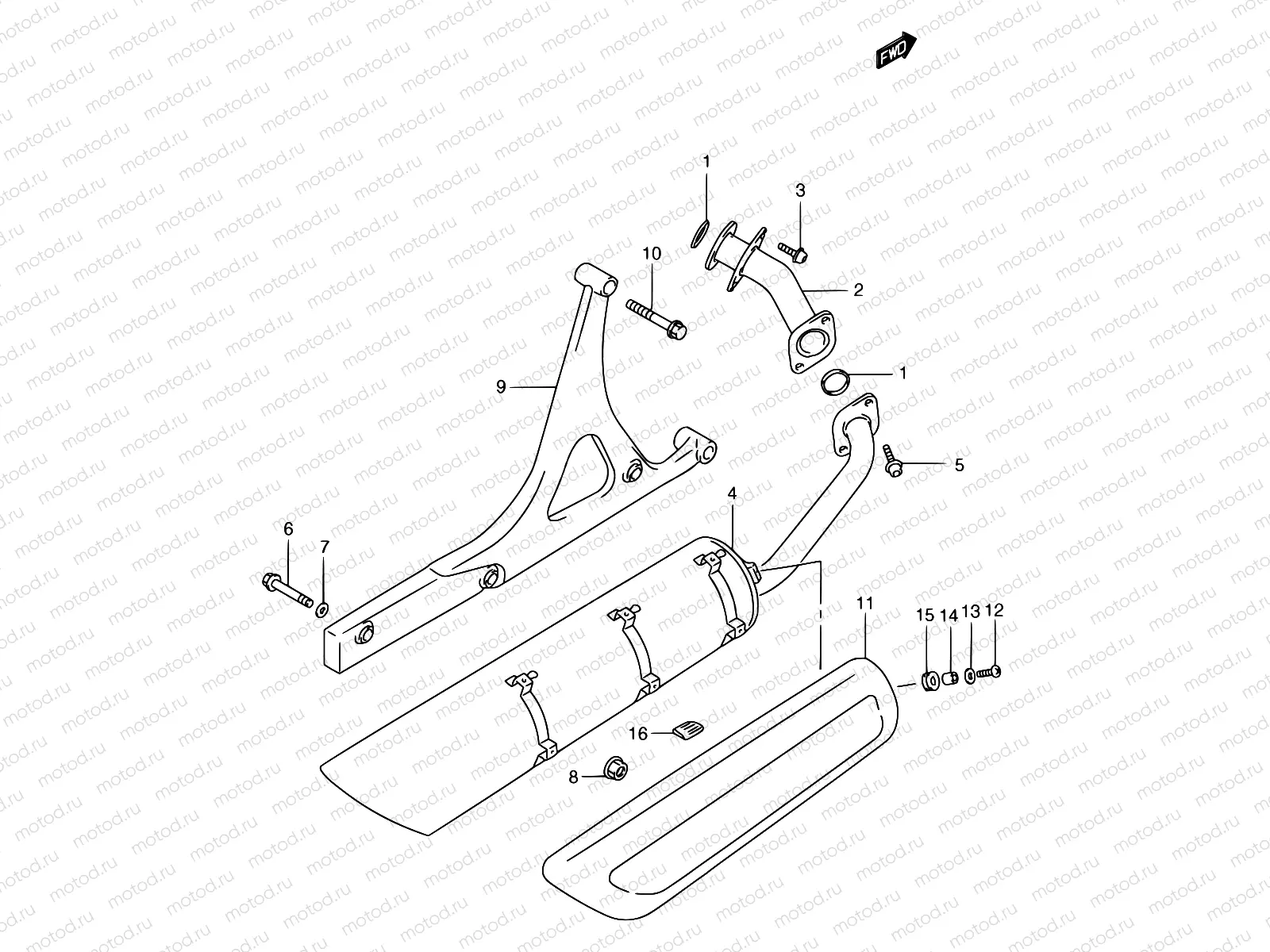

13 - MUFFLER (MODEL X/W/Y)

13 - MUFFLER (MODEL X/W/Y)

Например: 14181-18C00

1

14181-18C00

Прокладка трубы

436 ₽/шт

2

09159-08118

Гайка

7 190 ₽/шт

2

14150-14F23

Трубка выхлопная

15 405 ₽/шт

3

07120-0825B

БОЛТ

136 ₽/шт

4

14310-14F02

Exhaust

4

14310-14F12

Exhaust

5

07120-0830A

Болт

153 ₽/шт

6

01550-0860B

Болт

2 310 ₽/шт

7

08322-0108A

Шайба

85 ₽/шт

8

08319-3108A-000

Гайка

178 ₽/шт

9

14410-14F00

Bracket,muffler

10

01550-1060A

Болт

170 ₽/шт

11

14780-14F00

Крышка глушителя

16 461 ₽/шт

12

09139-06066

BOLT(6X12)

2 460 ₽/шт

13

09160-06056

WASHER(6.5X18X1)

82 ₽/шт

14

09180-06306

SPACER(6.5X9X5)

1 250 ₽/шт

15

09320-08066

САЙЛЕНТБЛОК

469 ₽/шт

16

14795-06F00

Втулка

465 ₽/шт
