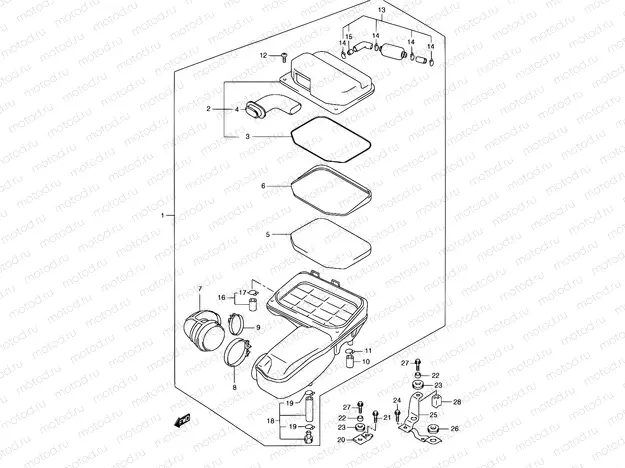

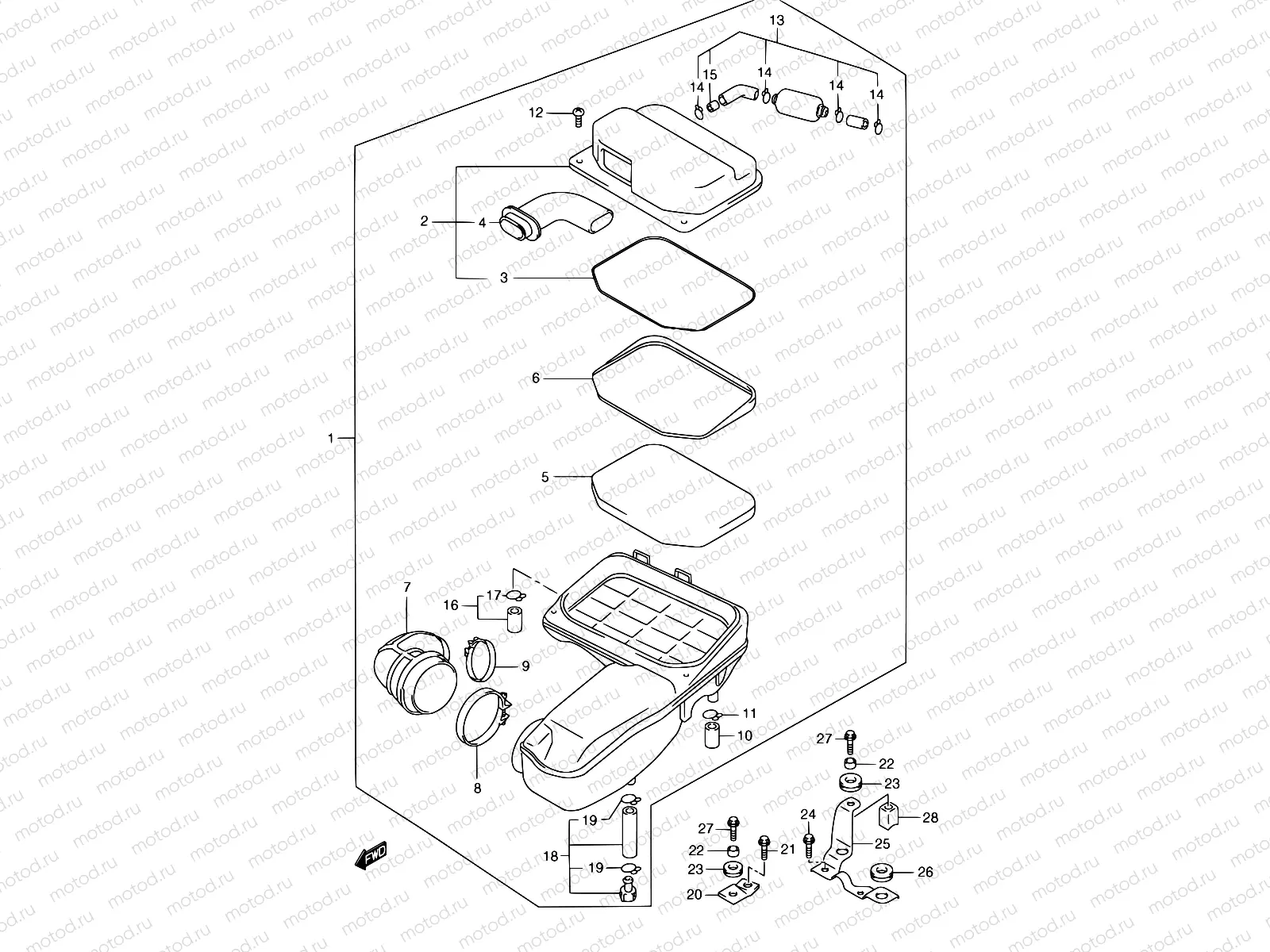

12A - AIR CLEANER (MODEL X)

12A - AIR CLEANER (MODEL X)

Например: 13700-14F50

1

13700-14F50

Cleaner assy,ai

2

13740-14F01

Крышка

3 988 ₽/шт

3

13746-14F00

Прокладка

352 ₽/шт

4

13891-14F00

Tube,inlet

5

13780-14F01

ILTER,AIR CLEANER

2 033 ₽/шт

6

13791-14F00

HOLDER,FILTER

1 017 ₽/шт

7

13881-14F01

Tube,outlet

3 245 ₽/шт

8

09402-72203

CLAMP

258 ₽/шт

9

09402-52208

ДЕРЖАТЕЛЬ

221 ₽/шт

10

13859-41B10

Заглушка

323 ₽/шт

11

09401-14301

ХОМУТ МАЛЫЙ

226 ₽/шт

12

02112-7516A

Болт

102 ₽/шт

13

13850-14F10

Tube,breather

14

09401-14301

ХОМУТ МАЛЫЙ

226 ₽/шт

15

13859-14D40

Jet,breather

16

13870-14F00

Заглушка дренажная

516 ₽/шт

17

09401-16401

Хомут

1 800 ₽/шт

18

13870-14F10

Трубка дренажная

915 ₽/шт

19

09401-14301

ХОМУТ МАЛЫЙ

226 ₽/шт

20

13760-14F00

BRACKET,AIR CLEANER FR

414 ₽/шт

21

09116-06168

БОЛТ

1 520 ₽/шт

22

09180-06286

Кольцо/шайба

162 ₽/шт

23

09320-10501

САЙЛЕНТБЛОК

321 ₽/шт

24

01550-0612B

БОЛТ

81 ₽/шт

25

13760-15F00

BRACKET ASSY,AIR CLNR RR

1 322 ₽/шт

26

09320-09043

CUSHION

1 920 ₽/шт

27

09116-06093

BOLT(6X25)

153 ₽/шт

28

13779-15F00

CUSHION,AIR CLEANER BRACKET

321 ₽/шт
