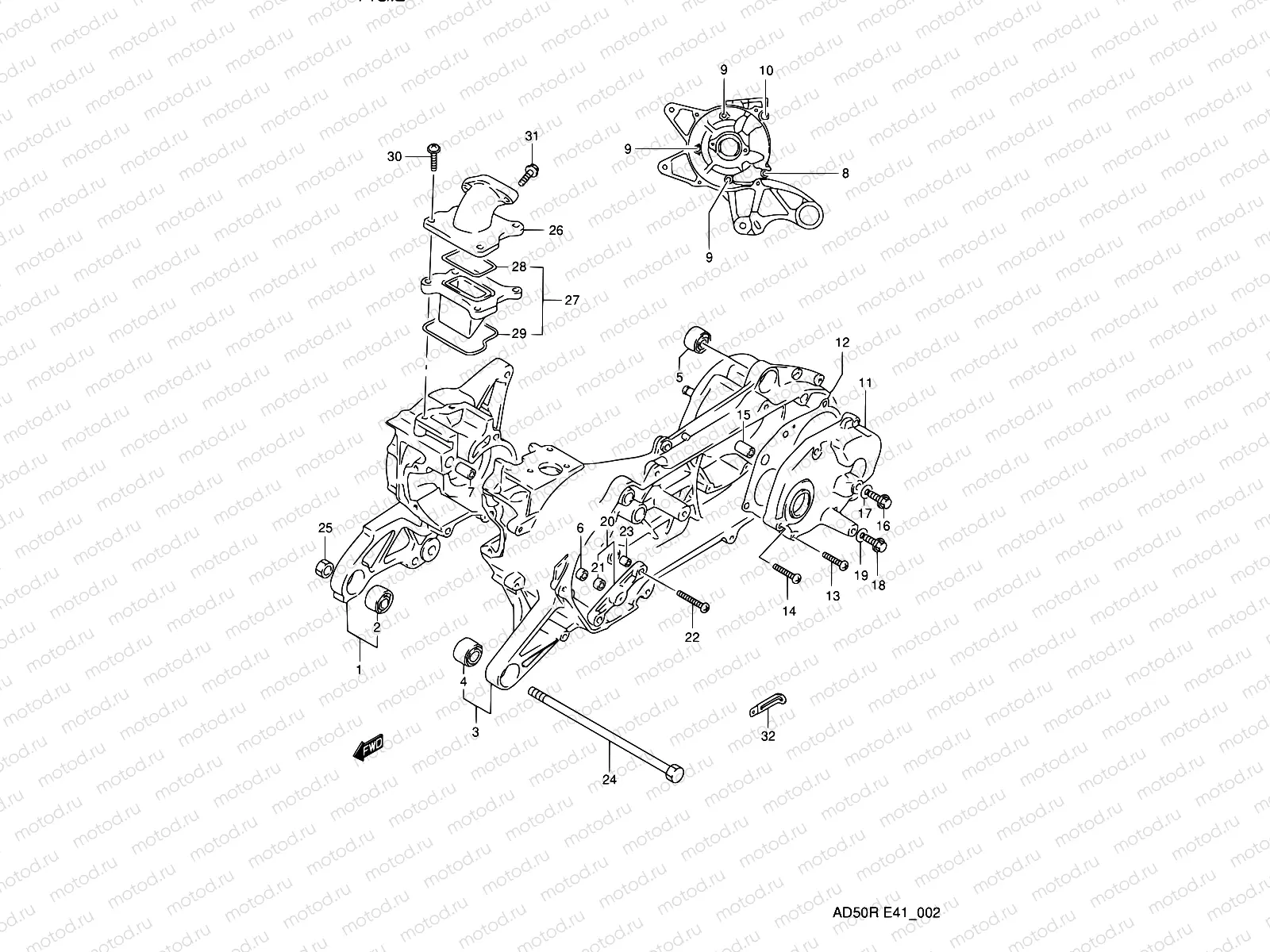

2 - CRANKCASE (MODEL L E41)

2 - CRANKCASE (MODEL L E41)
Например: 11310-29810
1
11310-29810
Crankcase set, rh
2
09319-10050
Втулка
2 584 ₽/шт
3
11320-29820
Crankcase set, lh
4
09319-10050
Втулка
2 584 ₽/шт
5
09319-10032
Втулка
580 ₽/шт
6
09300-08016
Втулка
119 ₽/шт
7
04211-11189
ШТИФТ
119 ₽/шт
8
02112-06407
Болт
85 ₽/шт
9
02112-06457
Винт 6X45
85 ₽/шт
10
02112-06857
Болт
119 ₽/шт
11
11431-37B02
GEAR BOX COVER
12
11484-41D30
GASKET,GEAR BOX COVER
594 ₽/шт
13
02112-0625A
Болт
85 ₽/шт
14
02112-06307
Болт
85 ₽/шт
15
04211-11189
ШТИФТ
119 ₽/шт
16
01550-0812B
Болт
97 ₽/шт
17
09168-08016
Прокладка
129 ₽/шт
18
01550-0612B
БОЛТ
81 ₽/шт
19
09168-06004
Кольцо прокладочное
113 ₽/шт
20
11380-37811
CAP SET,STARTER IDLE GEAR
2 737 ₽/шт
21
09300-08016
Втулка
119 ₽/шт
22
02112-06307
Болт
85 ₽/шт
23
04211-09109
Втулка
102 ₽/шт
24
09100-10267
BOLT(10X185)
7 860 ₽/шт
25
08310-00107
Гайка
85 ₽/шт
26
13111-29C20
Pipe d’admission
27
13150-37B01
Клапан
4 418 ₽/шт
28
13156-37B00
O RING,REED VALVE
29
13155-37B00
O RING,REED VALVE
266 ₽/шт
30
02112-36253
Vis
31
09128-06071
SCREW(6X19)
1 960 ₽/шт
32
09404-06039
Clamp(L:65)
194 ₽/шт
