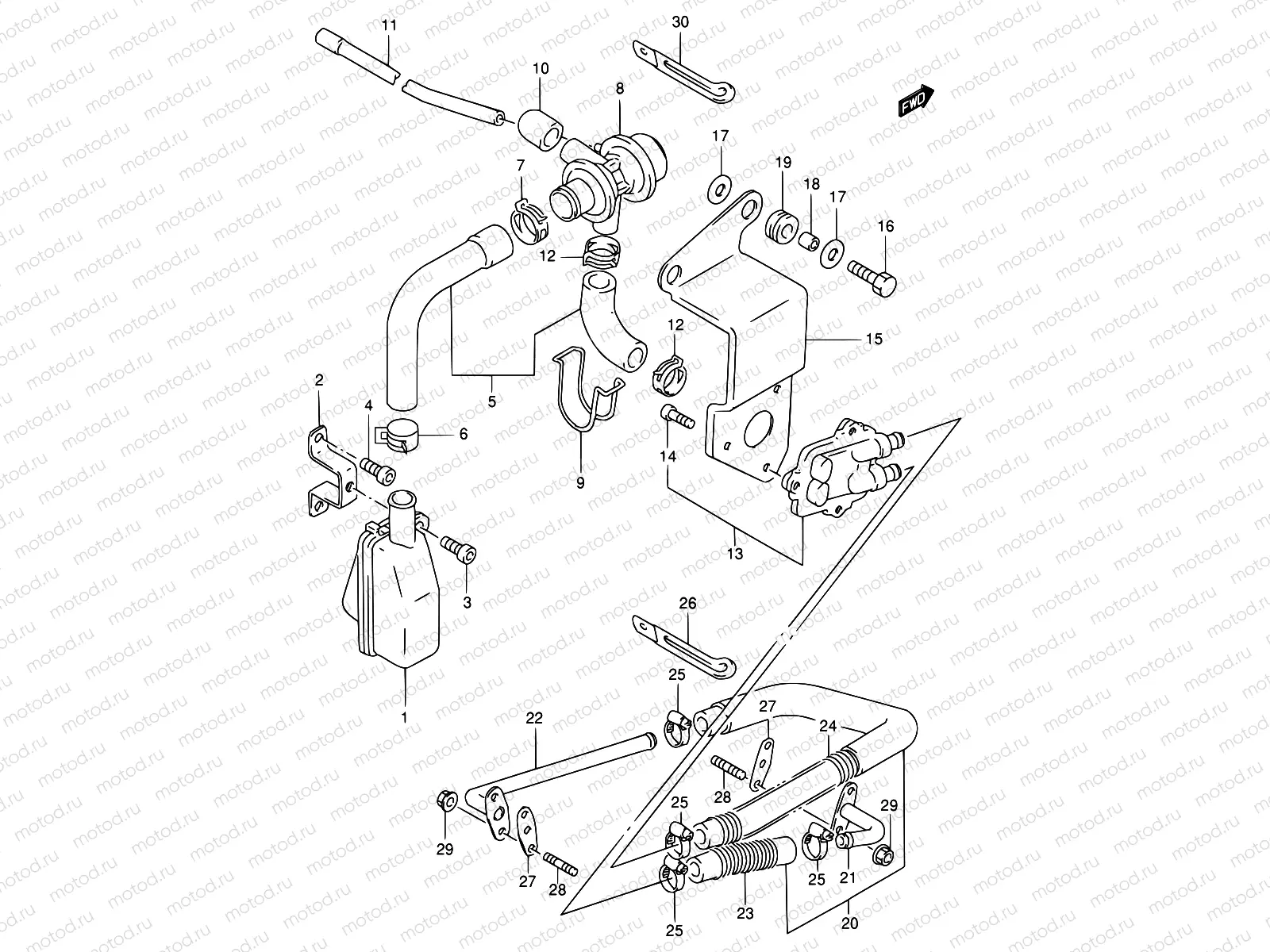

18A - SECOND AIR (E18,E39 F.NO.VS52A-100508~)

18A - SECOND AIR (E18,E39 F.NO.VS52A-100508~)
Например: 13800-27E00
1
13800-27E00
CLEANER ASSY,2ND AIR
3 480 ₽/шт
2
18750-39A01
Bracket, 2nd air cleaner
3
07120-06167
Болт
1 840 ₽/шт
4
07120-06207
Болт
1 840 ₽/шт
5
18420-39810
Hose set, 2nd air
6
09401-18406
CLIP
1 880 ₽/шт
7
09401-23403
CLIP
2 970 ₽/шт
8
18510-20C00
VALVE ASSY,AIR SWITCHING
9
18522-17C00
lamp, switching valve
10
18483-39A00
Cap, switching valve
11
09359-45855-600
Hose(4.5X8.5X300)
1 024 ₽/шт
12
09401-20405
ХОМУТ МАЛЫЙ
2 070 ₽/шт
13
18450-48B00
Valve assy, 2nd air reed
14
07130-05167
Болт
1 520 ₽/шт
15
18520-39A00
Bracket, 2nd air valve
16
01204-06307
BOLT
980 ₽/шт
16
01550-06307
Болт
102 ₽/шт
17
09160-06066
Шайба
102 ₽/шт
18
09180-06310
SPACER
178 ₽/шт
19
09320-10015
САЙЛЕНТБЛОК
226 ₽/шт
20
18410-39810
Hose set, 2nd air
21
18420-39A01
Pipe, 2nd air front
22
18430-39A10
Pipe, 2nd air rear
23
18434-39A00
Spring, front hose
24
18433-39A00
Spring, rear hose
25
09402-22512
ХОМУТ РУЛ. НАК.
4 300 ₽/шт
26
09404-06036
Clamp(L:80)
194 ₽/шт
27
18441-45C01
Прокладка
446 ₽/шт
28
01421-0616A
Болт заклепка
114 ₽/шт
29
08319-31067
Гайка
153 ₽/шт
30
09404-06036
Clamp(L:80)
194 ₽/шт
