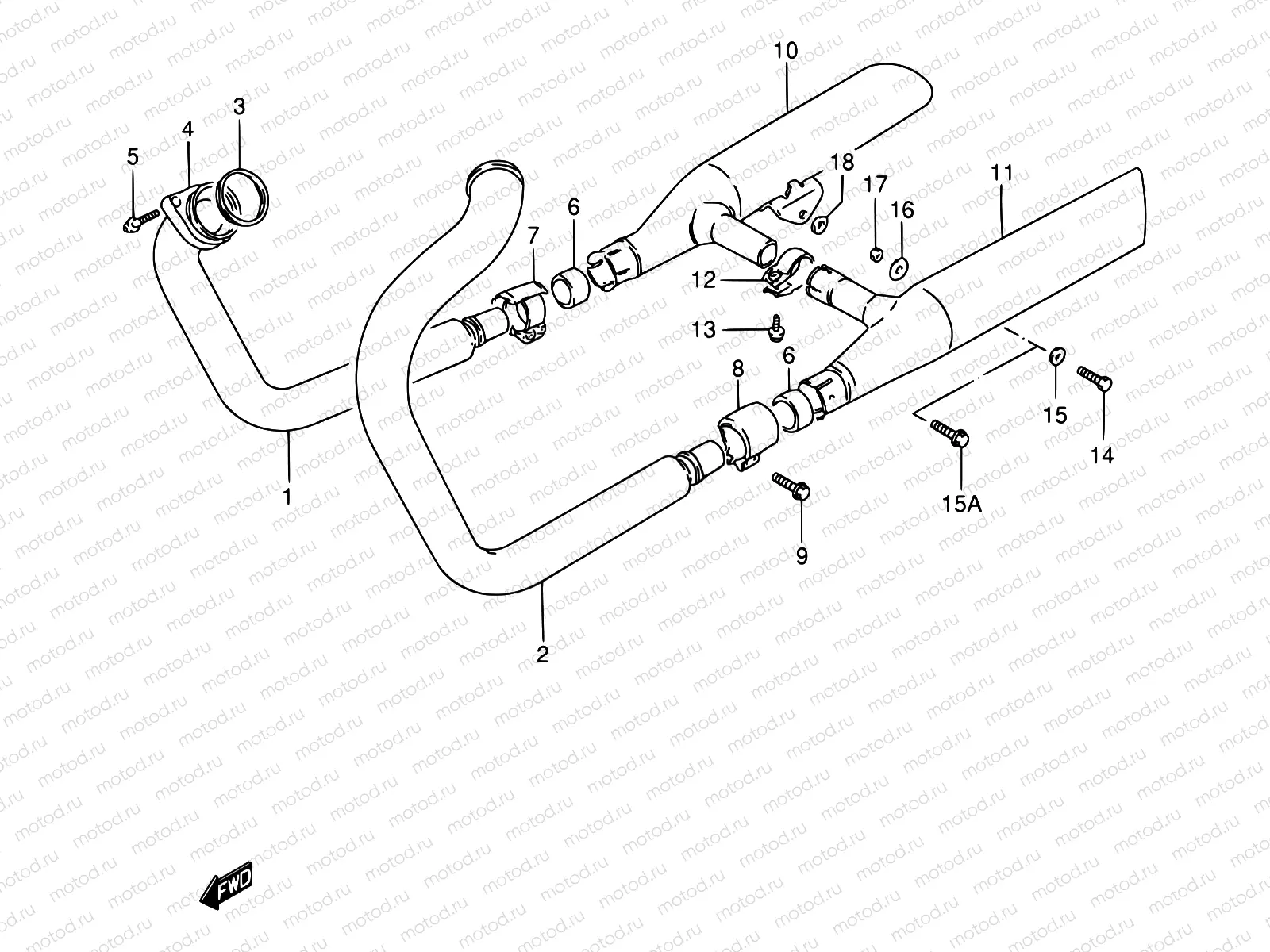

14 - MUFFLER

14 - MUFFLER
Например: 14150-38A01
1
14150-38A01
PIPE,EXHAUST,R
21 114 ₽/шт
2
14160-38A02
PIPE,EXHAUST,L
21 701 ₽/шт
3
14181-45C00
Прокладка трубы
646 ₽/шт
4
14182-38A02
CLAMP,EXHAUST PIPE
2 229 ₽/шт
5
09104-08026
BOLT(8X35)
194 ₽/шт
6
14771-05A02
CONNECTOR,EXHAUST PIPE
3 485 ₽/шт
7
14459-38A00
CLAMP,MUFFLER CONNECTOR,R
1 024 ₽/шт
8
14469-38A00
CLAMP,MUFFLER CONNECTOR,L
1 024 ₽/шт
9
01547-06307
Болт
102 ₽/шт
10
14310-38A52
BODY,MUFFLER,R
37 341 ₽/шт
10
14310-38A61
Muffler, rh
11
14340-38A52
Глушитель,L
37 341 ₽/шт
11
14340-38A61
Глушитель,L
31 085 ₽/шт
12
14772-38B00
CLAMP,EXHAUST COUPLER
645 ₽/шт
13
01550-0625A
Болт
102 ₽/шт
14
01500-08307
Болт
97 ₽/шт
15
08322-01087
Шайба
81 ₽/шт
16
09160-08134
Шайба
97 ₽/шт
17
08316-20087
Гайка
1 370 ₽/шт
18
09160-08122
Шайба
1 370 ₽/шт
