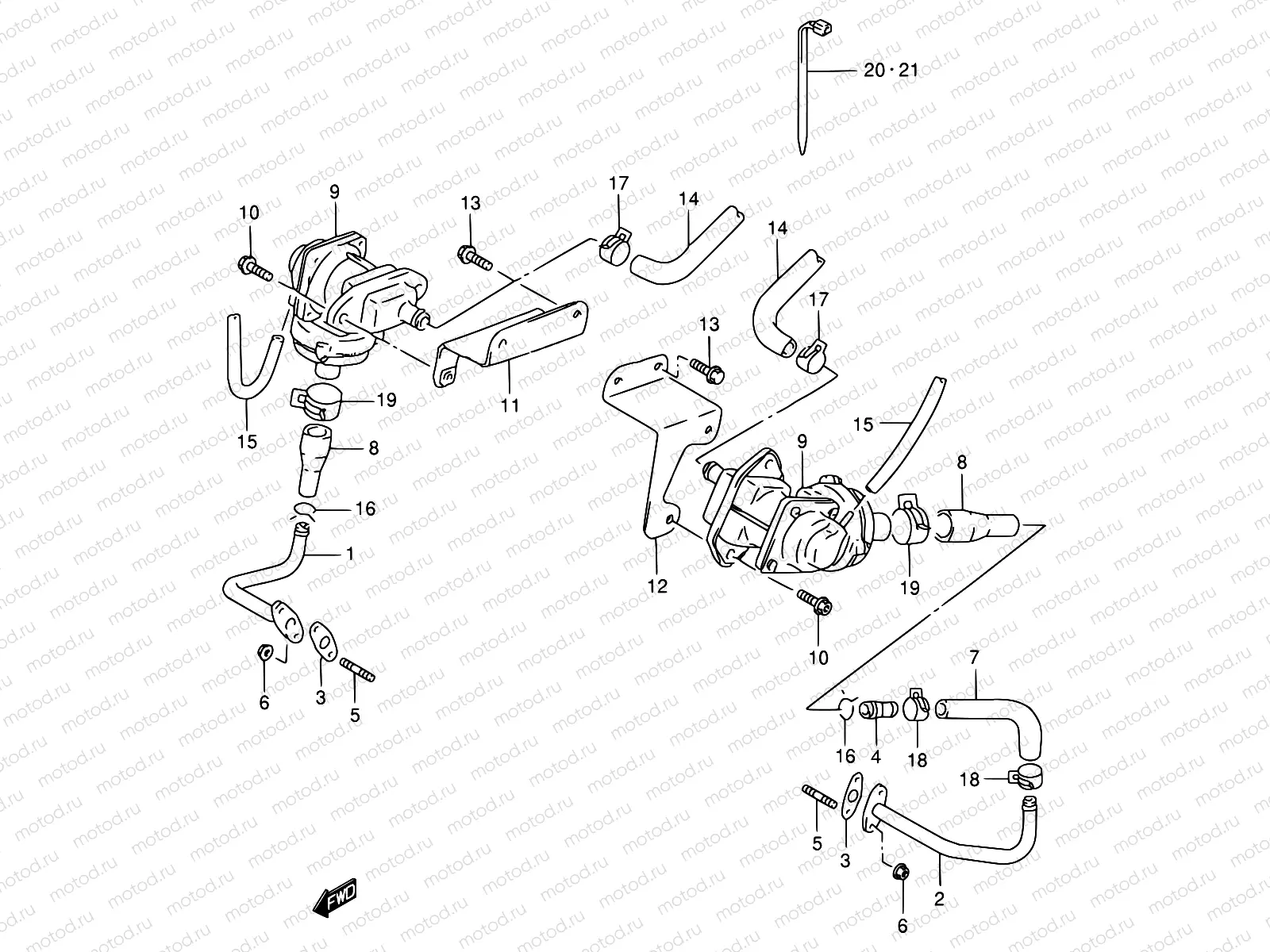

18 - SECOND AIR (E18,E39 ~F.NO.VS52A-100507)

18 - SECOND AIR (E18,E39 ~F.NO.VS52A-100507)
Например: 18420-39A01
1
18420-39A01
Pipe, 2nd air front
2
18430-39A10
Pipe, 2nd air rr
3
18441-45C01
Прокладка
446 ₽/шт
4
18432-14D00
Union, 2nd air hose
5
01421-0616A
Болт заклепка
114 ₽/шт
6
08319-31067
Гайка
153 ₽/шт
7
18443-45C00
Hose, 2nd air rr no.2
8
18446-31D00
HOSE,2ND AIR
9
18450-45C00
Valve, 2nd air reed
10
07120-0620B
Болт
102 ₽/шт
11
18470-39A00
Bracket, fr
12
18480-39A00
Bracket, rr
13
01550-0616B
БОЛТ
81 ₽/шт
14
09352-12164-600
Hose(12X16X600)
1 421 ₽/шт
15
09359-40701-00B
Hose(4x7x2000)
16
09401-15301
CLIP
1 720 ₽/шт
17
09401-15404
ХОМУТ МАЛЫЙ
242 ₽/шт
18
09401-16403
ХОМУТ ПЫЛЬНИКА РУЛЕВОЙ ТЯГИ
1 370 ₽/шт
19
09401-23403
CLIP
2 970 ₽/шт
20
09407-14403
КЛЕММА
221 ₽/шт
21
09407-18402
Струбцина (L:165)
211 ₽/шт
