Главная Каталог товаров Harley-Davidson EPC 2020 Harley-Davidson CVO/CUSTOM Harley-Davidson 2020 CVO TRI GLIDE - FLHTCUTGSE Harley-Davidson 2020 CVO/CUSTOM WHEELS, FRONT

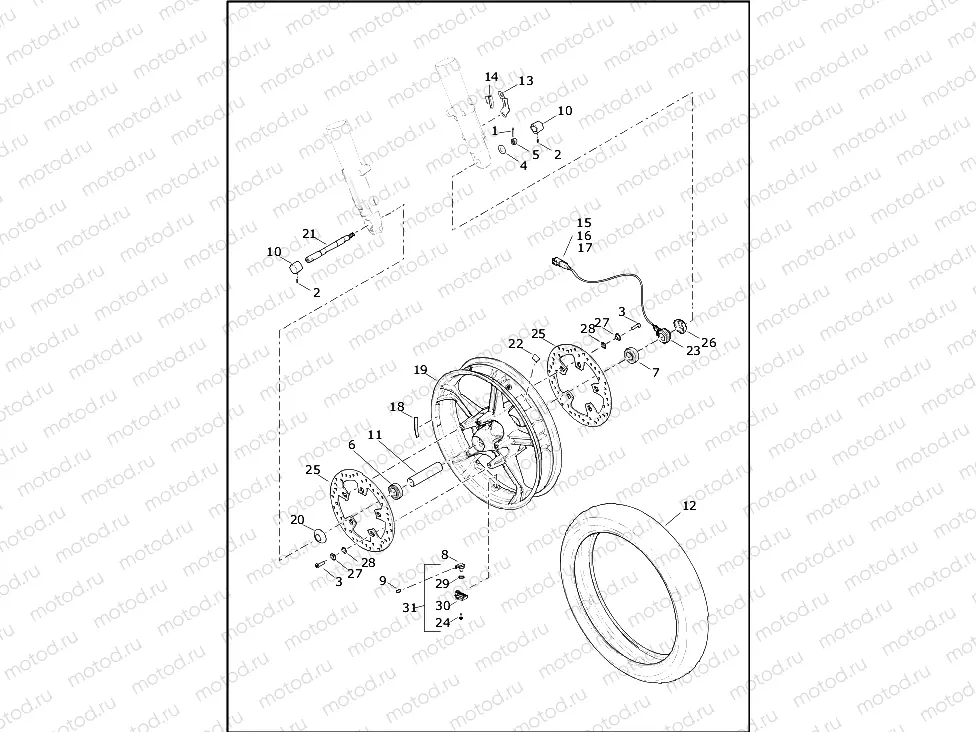

WHEELS, FRONT

WHEELS, FRONT

Например: 520W

1

520W

pc - COTTER PIN

2

3267

CUP POINT HEX DRIVE SET SCREW

3

41500-020

BOLT,FRT ROTOR

4

6594

WASHER, 5/8 ID X 1.125 OD

5

7823

Nut

6

9252A

Roulement (25mm ID/18mm WD/)

7

9276B

EARING,ROLL ELEM,NON-ABS WHEE

8

42300-112

VALVE STEM,90 DEG,BLK

9

42300-093

CAP,VALVE STEM,ACORN,GBLK

10

43475-08

COVER, AXLE NUT

11

41900-08

SLEEVE, FRNT & RR WHEEL

12

43100-045

TIRE FRONT D408F 130/60B19 61H

13

70493-08

BRACKET, WSS-RTG

14

70494-08

WIRE CLIP,WHL SPEED SENSOR

15

72607-08

HOUSING, 2-WAY PIN

16

72608-08

TERMINAL, PIN #16-20 AWG

17

72639-10

SECONDARY LOCK,2-WAY SCKT,COND

18

14101-128

MEDALLION,WHEEL,FR,RED

19

43300-703

WHL ASSY,FR,S/5SPK,GRA/SATIN I

19

43300-737

WHL ASSY,FR,S/5SPK,GBLK/GCLR,1

20

44583-08

SPACER, FRT WHL, MUSHROOM STYL

21

83889-09

AXLE, FRT

22

42300-001A

WEIGHT,WHL,.50OZ,BAR&SHLD,BLK

23

32700-015

SENSOR,WHL SPEED(WSS)

24

10201-167

SCREW,TPMS

25

41500-017

BRAKE ROTOR, FRONT

26

40786-08

COVER, SENSOR, ABS

27

41500-018

BUSHING,FRT ROTOR

28

41500-019

WAVE WASHER

29

11900-155

O-RING,TPMS,-112

30

42300-142

MONITOR,TIRE PRESS,ASSY,434MHZ

30

42300-143

MONITOR,TIRE PRESS,ASSY,315MHZ

31

42300-142

MONITOR,TIRE PRESS,ASSY,434MHZ

31

42300-143

MONITOR,TIRE PRESS,ASSY,315MHZ
