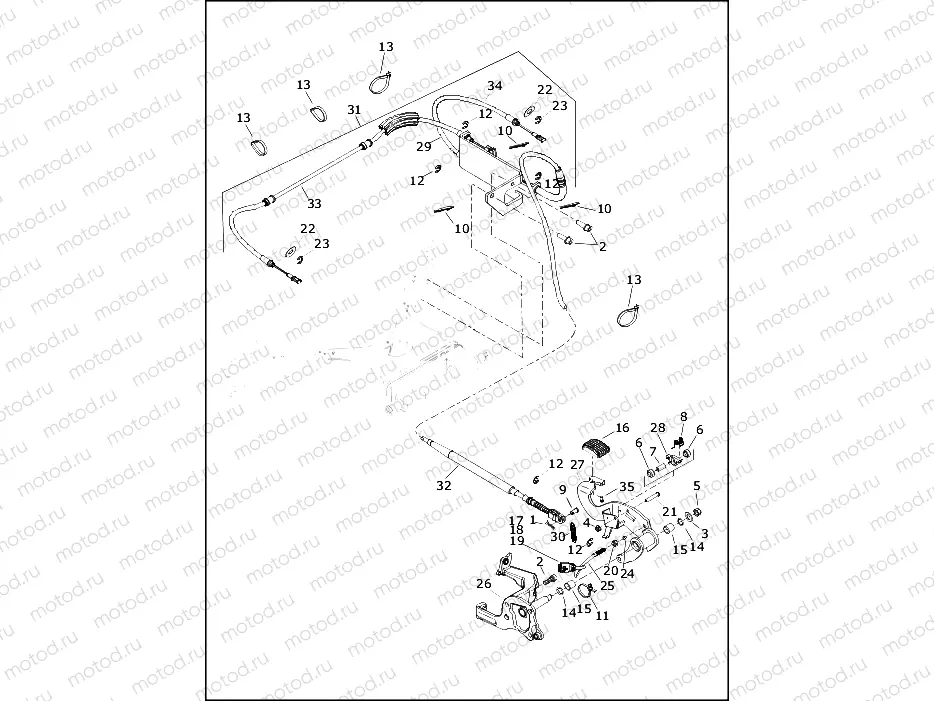

PARKING BRAKE

PARKING BRAKE

Например: 509

1

509

COTTER PIN

2

4688

SCREW,HEX SCKT,SEMS,3/8-16X1-1

3

6334

Rondelle

4

7716

20 pc - NUT, HEX FLANGE, FLHTC-UC

5

7825

NUT, FLEX

6

8351

SPACER,LH-PAWL

7

8353

BUSHING,PAWL

8

8357

SPRING,PAWL RETURN

9

8368

CLEVIS PIN

10

10039

CABLE STRAP

11

10177

CABLE STRAP, PLUG IN

12

11012

RETAINING RING

13

11321

CABLE STRAP

14

11364

O-Ring

15

57217-02A

BUSHING

16

50600-426

KIT,BRK PDL,PRKG,SVCE,CHRM

17

72168-07

TERMINAL, SOCKET #18-20 AWG

18

72473-07

SEAL PIN (PLUG)

19

72512-07BK

HOUSING, 3-WAY SOCKET, BLACK

20

10100-006

Nut

21

10200-001

SCREWS,HEX SCKT,BTNHD,BLACK

22

10300-003

FLAT WASHER

23

12200-177

RING,RETG,E-CLIP,9MM

24

12700-032

MAGNET, SENSOR

25

32700-011

SENSOR ASY,PROXIMITY

26

41700-469

BRACKET,PARKING BRAKE,BLACK,W/

27

83000-014

PEDAL ASY,BLK

28

83000-018A

BRAKE,PRKG,PAWL

29

83000-026

BRACKET,EQUALIZER ASY

30

83000-030A

SPRING,BRAKE PEDAL RETURN

31

83000-136

BRAKE,PRKG,CABLE,ASSY

32

83000-137

BRAKE,PRKG,CABLE,PRIMARY

33

83000-138

BRAKE,PRKG,CABLE,SECONDARY,LH

34

83000-139

BRAKE,PRKG,CABLE,SECONDARY,RH

35

10200-422

SCREW,BTN,TORX,W/WASHER
