Главная Каталог товаров DUCATI EPC 2004 DUCATI Monster 1000 S DUCATI 2004 (VIN: ZDMM404) VERTICAL HEAD

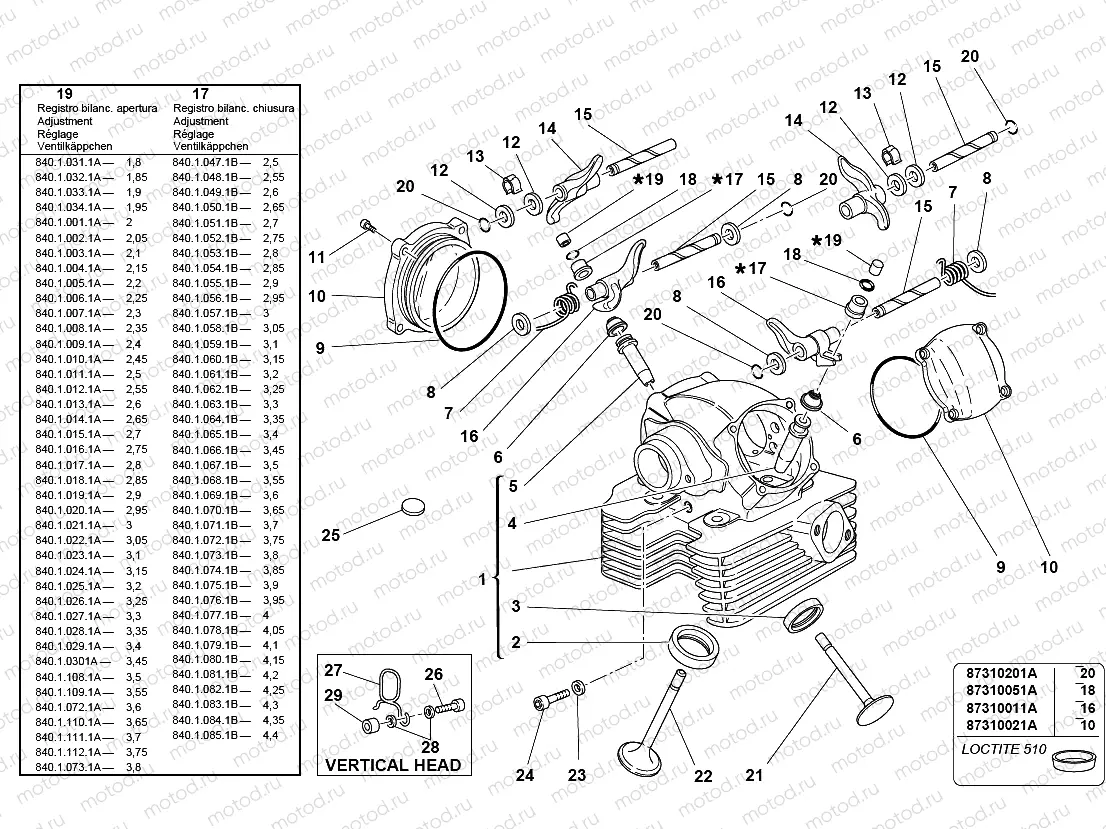

VERTICAL HEAD

VERTICAL HEAD
Например: 30120921D
1
30120921D
VERTICAL HEAD
2
30410421B
SEAT, INTAKE VALVE
2
30410421BB
SEAT, INLET VALVE +0.03 MM
2
30410421BC
SEAT, INLET VALVE +0.06 MM
3
30410731A
SEAT, EXHAUST VALVE
3
30410731AB
SEAT, EXHAUST VALVE +0.03 MM
3
30410731AC
SEAT, EXHAUST VALVE +0.06 MM
4
30310411A
GUIDE-VALVE, INTAKE
4
30310681AA
GUIDE, VALVE +0.03 MM
4
30310411AB
GUIDE INTAKE VALVE +0.06 MM
4
30310411AC
GUIDE INTAKE VALVE +0.09 MM
5
30310681A
INT.EXH.VALVE GUIDE
5
30310681AA
GUIDE, VALVE +0.03 MM
5
30310681AB
GUIDE, VALVE +0.06 MM
5
30310681AC
GUIDE, VALVE +0.09 MM
6
76410871A
Joint de tige de soupape
7
79910613A
SPRING, CLOSING ROCKER ARM
8
076592205
.THRUST WASHER 10.5X15X0.2
8
067092190
5 pc - Rondelle (10.5x15x2)
8
076592190
.THRUST WASHER 10.5X15X0.5
8
076592190
.THRUST WASHER 10.5X15X0.5
8
076592195
.THRUST WASHER 10.5X15X0.1
8
076592205
.THRUST WASHER 10.5X15X0.2
9
88641381A
O-Ring
10
24020261B
VALVE COVER
11
77150668B
Vis
12
064770010
Rondelle (THRUST)
13
037592210
pc - Spring
14
208Z0011A
OPEN. ROCKER ARM
15
82111112A
ROCKER ARM PIN
16
20910411A
CLOSE ROCKER ARM
18
66910011E
C RING
20
88650151A
pc - O-Ring
21
21110401A
Valve (EX)
22
21010421A
Valve (IN)
23
85250231A
Rondelle
24
77911331A
Vis
25
70010401A
VIBRATION DAMPER PAD
26
77110471A
pc - Vis
27
88110231A
RING
28
85211761A
0 pc - Rondelle
29
71312411A
0 pc - Entretoise (6.2X10X7)
