Главная Каталог товаров DUCATI EPC 2004 DUCATI Monster 1000 S DUCATI 2004 (VIN: ZDMM404) HORIZONTAL HEAD

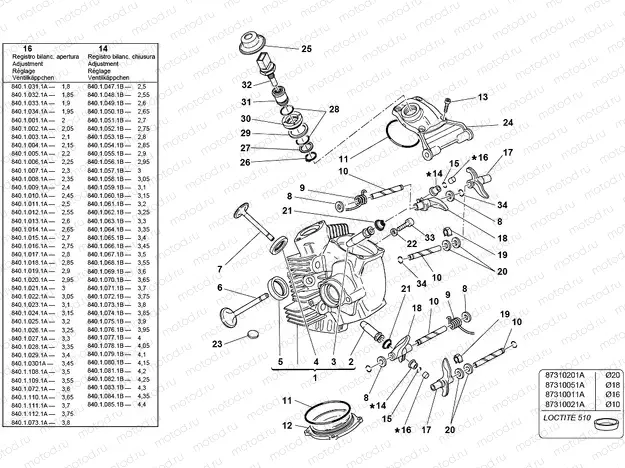

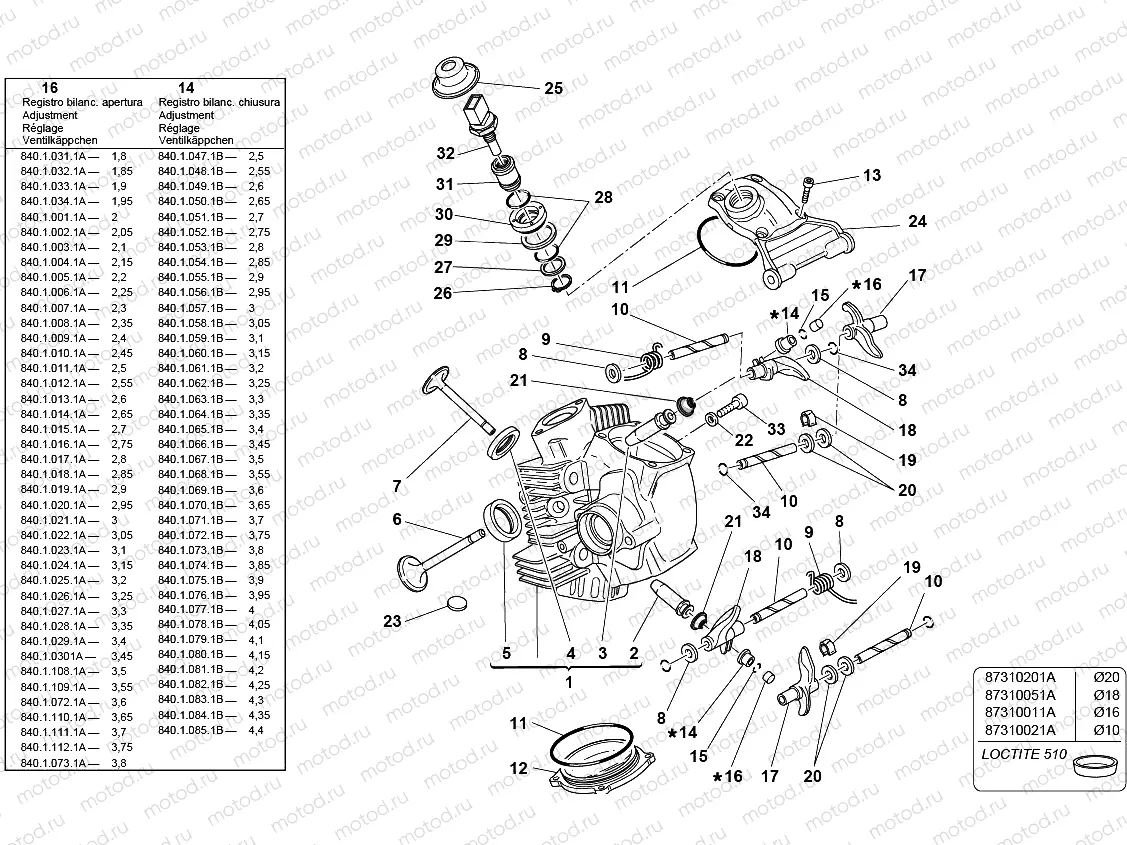

HORIZONTAL HEAD

HORIZONTAL HEAD
Например: 30120931D
1
30120931D
HORIZONTAL HEAD
2
30310681A
INT.EXH.VALVE GUIDE
2
30310681AA
GUIDE, VALVE +0.03 MM
2
30310681AB
GUIDE, VALVE +0.06 MM
2
30310681AC
GUIDE, VALVE +0.09 MM
3
30310411A
GUIDE-VALVE, INTAKE
3
30310681AA
GUIDE, VALVE +0.03 MM
3
30310411AB
GUIDE INTAKE VALVE +0.06 MM
3
30310411AC
GUIDE INTAKE VALVE +0.09 MM
4
30410421B
SEAT, INTAKE VALVE
4
30410421BB
SEAT, INLET VALVE +0.03 MM
4
30410421BC
SEAT, INLET VALVE +0.06 MM
5
30410731A
SEAT, EXHAUST VALVE
5
30410731AB
SEAT, EXHAUST VALVE +0.03 MM
5
30410731AC
SEAT, EXHAUST VALVE +0.06 MM
6
21110401A
Valve (EX)
7
21010421A
Valve (IN)
8
076592205
.THRUST WASHER 10.5X15X0.2
8
067092190
5 pc - Rondelle (10.5x15x2)
8
076592190
.THRUST WASHER 10.5X15X0.5
8
076592190
.THRUST WASHER 10.5X15X0.5
8
076592195
.THRUST WASHER 10.5X15X0.1
8
076592205
.THRUST WASHER 10.5X15X0.2
9
79910613A
SPRING, CLOSING ROCKER ARM
10
82111112A
ROCKER ARM PIN
11
88641381A
O-Ring
12
24020261B
VALVE COVER
13
77150668B
Vis
15
66910011E
C RING
17
208Z0011A
OPEN. ROCKER ARM
18
20910411A
CLOSE ROCKER ARM
19
037592210
pc - Spring
20
064770010
Rondelle (THRUST)
21
76410871A
Joint de tige de soupape
22
85250231A
Rondelle
23
70010401A
VIBRATION DAMPER PAD
24
24020311A
COVER, INTAKE VALVE
25
67210341A
pc - .BOOT, RUBBER
26
735001747
.SEEGER RING 17 DIN 471
27
71311371A
SPACER 17X22X2
28
88640281A
O-Ring
29
78710081A
.ALUMINIUM GASKET
30
70310191A
RING NUT
31
82912351A
HOLDER SENSOR
32
55240131A
Water temperature switch
33
77911331A
Vis
34
88650151A
pc - O-Ring
