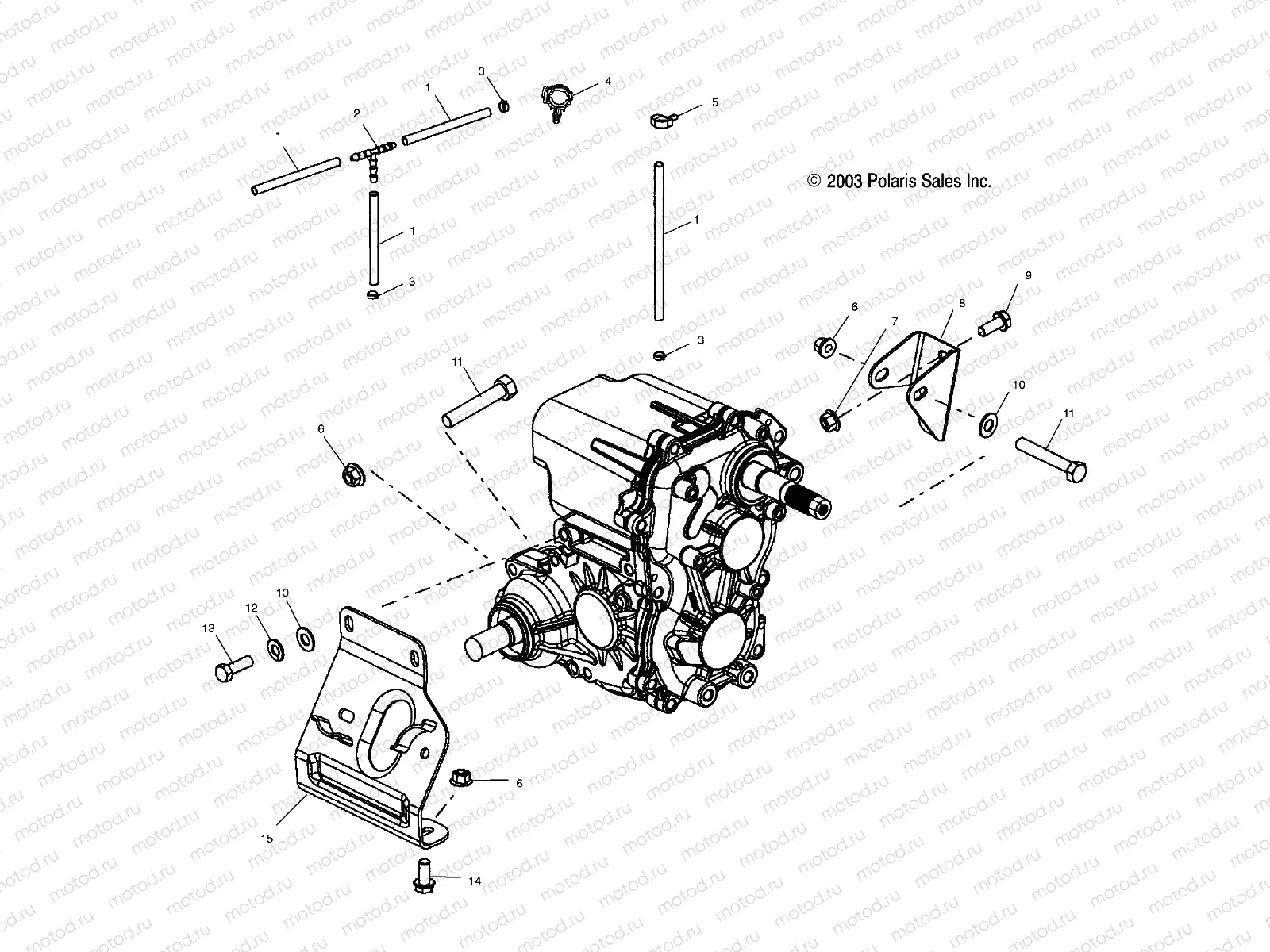

TRANSMISSION MOUNTING - A04CH59AF/AH/AJ/AT/AV (4986108610C12) | TRANSMISSION MOUNTING - A04CH59AF/AH/AJ/AT/AV (4986108610C12)

TRANSMISSION MOUNTING - A04CH59AF/AH/AJ/AT/AV (4986108610C12) | TRANSMISSION MOUNTING - A04CH59AF/AH/AJ/AT/AV (4986108610C12)

Например: 8450003-1525

1

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

2

7052075

FITTING TEE

3

7080307

CLAMP HOSE

4

7080756

CLIP SNAP-IN

5

7670102

CLIP

6

7547108

Nut

7

7542321

NUT FLANGE

8

5244599-067

Mount, Rear Transmission

9

7515398

Vis

10

7555976

WASHER FLAT

11

7515417

Vis

12

7552603

Rondelle (Lock)

13

7515522

Vis

14

7517289

Vis

15

5247348

BRKT-MNT TRANS REAR PLTD

15

1013134-067

MOUNT ENGINE REAR BLK
