Главная Каталог товаров Polaris EPC 2004 Polaris ATV Polaris 2004 A04CH59AF SPORTSMAN 600 - A04CH59AF/AH/AJ/AT/AV Polaris 2004 ATV MAGNETO - A04CH59AF/AH/AJ/AT/AV (4986108610D13) | MAGNETO - A04CH59AF/AH/AJ/AT/AV (4986108610D13)

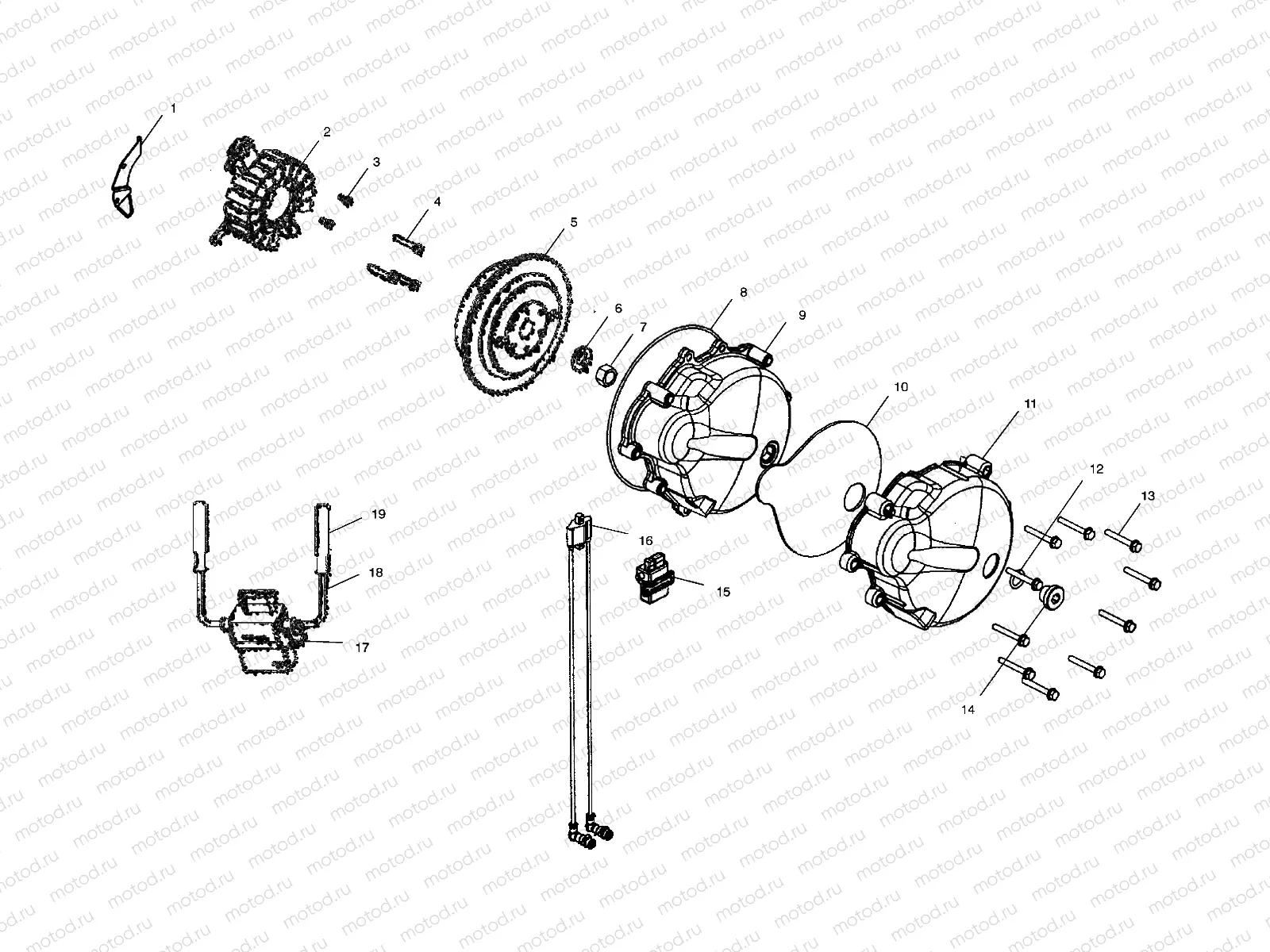

MAGNETO - A04CH59AF/AH/AJ/AT/AV (4986108610D13) | MAGNETO - A04CH59AF/AH/AJ/AT/AV (4986108610D13)

MAGNETO - A04CH59AF/AH/AJ/AT/AV (4986108610D13) | MAGNETO - A04CH59AF/AH/AJ/AT/AV (4986108610D13)

Например: 5245364

1

5245364

STATOR-BRACKET WIRE-HOLD-DOWN

2

4010901

ASM-STATOR KOKUSAN

2

2202603

KIT-IGNITION 600 KOK ATV

3

7517847

SCR-M5X0.8X10 SOC/CP-D

4

7517848

SCR-M6X1.0X35 SOC/CP-Y/D

4

7517714

Vis

5

4060152

FLYWHEEL IGN. TWIN ATV

5

4010899

ASM-FLYWHEEL IGNITION KOK

6

7555907

Rondelle

7

7546909

Nut

8

5812359

SEAL-O-RING .128X7.895

9

1204345

ASM-COVER STATOR SVC

10

5812283

COVER-SOUND DAMPENING

11

5434310

Cover, Outer

12

5411564

O-Ring

13

7517950

SCR-M6X1.0X45 HX-FL-Y/D

14

5433820

PLUG HOLE TMNG 3/4-16 NYLON

15

4010920

CONTROLLER-IGN 600 ATV KOK

16

4010898

COIL-IGNITION KOK

17

4010785

CONTROLLER-IGN 600 ATV

18

4010124-66

Wire, Ignition

19

4010910

PLUG WIRE W/BOOT 59CM (23IN)
