Главная Каталог товаров YAMAHA EPC 350 cm³ - 699 cm³ YAMAHA MT-07 YAMAHA MT-07 (1WSB) 2015 YAMAHA MT-07 Transmission

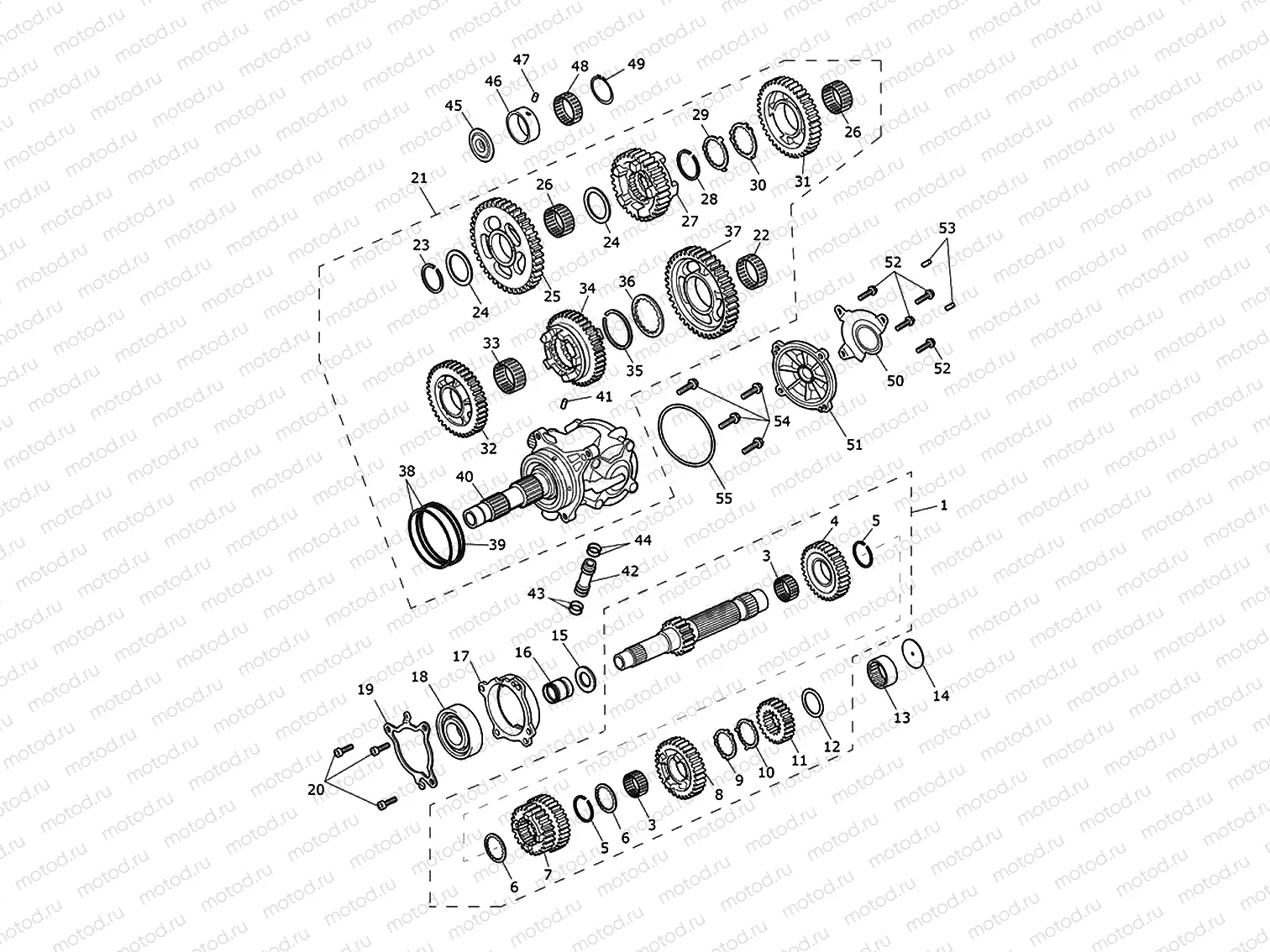

Transmission

Transmission

Например: Input Shaft Assem

1

Input Shaft Assem

3

Bearing, Split

4

Gear, Input, 5th,

5

Snap Ring

6

Thrust Washer

7

Gear, Input, 3rd/

8

Gear, Input, 6th,

9

Washer, Splined,

10

Washer, Splined,

11

Gear, Input, 2nd,

12

Washer

13

Bearing, Needle

14

Washer, Restricto

15

Spacer, Clutch, 25 x 43 x 2.7

16

Bush, Clutch, 25 x 32 x 37

17

Housing, Bearing,

18

Bearing

19

Keeper Plate, Inp

20

Screw, Cap/HD, M6 x 20, Enc

21

Output Assembly,

22

Bearing, NRB

23

Snap Ring

24

Thrust Washer

25

Gear, Output, 1st

26

Bearing, NRB, Spl

27

Gear, Ouput, 5th,

28

Snap Ring

29

Washer, Splined,

30

Washer, Splined,

31

Gear, Output, 3rd

32

Gear, Output, 4th

33

Bearing, NRB, Spl

34

Gear, Output, 6th

35

Snap Ring

36

Thrust Washer

37

Gear, Output, 2nd

38

O Ring, ID 87 x 2

39

O Ring, ID 92 x 3

40

Bevel Box Assembl

41

Dowel, Dia 6.0 x 16

42

Spigot, Drain, FB

43

O Ring, ID 16.2 x

44

O Ring, ID 15.2 x

45

Washer, Restricto

46

Sleeve, Needle, B

47

Dowel, Dia 6 x 10.8

48

Bearing, Needle

49

Circlip, Tabbed,

50

Protector, FBB, C

51

Cover, Side, FBB

52

Bolt, RHHF, M6 x

53

Dowel, 4 x 10

54

Bolt, HHF, M8 x 3

55

O Ring, ID 98 x 2
