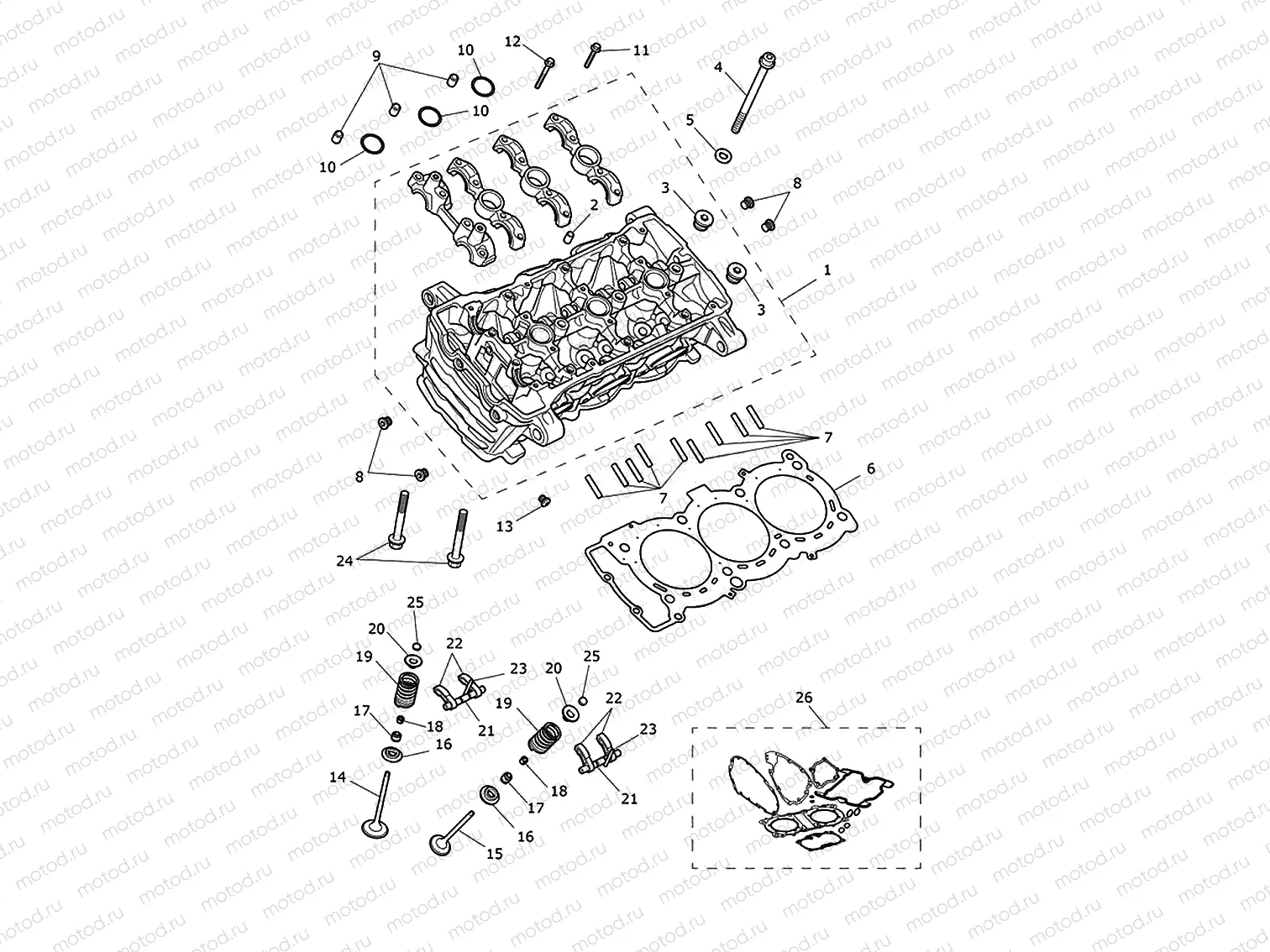

Cylinder head & valves

Cylinder head & valves

Например: Cylinder Head, 3

1

Cylinder Head, 3

2

Dowel, Hollow, 8 x 14

3

Plug, Sealing, In

4

Bolt, Cylinder He

5

Washer, 10.25 x 19.5 x 2

6

Gasket, Cylinder

7

Stud, M6 x 30, Sl

8

Plug, Sealing, In

9

Dowel, Hollow, 10 x 14

10

O Ring, Fluorocarbon

11

Bolt, HHF, Lghtd,

12

Bolt, HHF, Lghtd, M6 x 50, Slv

13

Plug, Sealing, In

14

Inlet Valve, Holl

15

Exhaust Valve

16

Platform, Spring

17

Seal, Oil Valve S

18

Collet, Valve, 5.

19

Spring Valve

20

Retainer, Spring

21

Shaft, Finger Fol

22

Finger Follower

23

Pin

24

Screw, Pan/Hd, TX

25

Shim, Dia 9.5, 2.475 mm

25

Shim, Dia 9.5, 2.500 mm

25

Shim, Dia 9.5, 3.100 mm

25

Shim, Dia 9.5, 2.975 mm

25

Shim, Dia 9.5, 1.850 mm

25

Shim, Dia 9.5, 2.000 mm

25

Shim, Dia 9.5, 2.950 mm

25

Shim, Dia 9.5, 2.700 mm

25

Shim, Dia 9.5, 2.600 mm

25

Shim, Dia 9.5, 2.200 mm

25

Shim, Dia 9.5, 2.250 mm

25

Shim, Dia 9.5, 3.050 mm

25

Shim, Dia 9.5, 2.325 mm

25

Shim, Dia 9.5, 2.850 mm

25

Shim, Dia 9.5, 2.650 mm

25

Shim, Dia 9.5, 1.950 mm

25

Shim, Dia 9.5, 2.875 mm

25

Shim, Dia 9.5, 1.725 mm

25

Shim, Dia 9.5, 2.625 mm

25

Shim, Dia 9.5, 2.750 mm

25

Shim, Dia 9.5, 1.800 mm

25

Shim, Dia 9.5, 2.375 mm

25

Shim, Dia 9.5, 2.075 mm

25

Shim, Dia 9.5, 1.750 mm

25

Shim, Dia 9.5, 2.425 mm

25

Shim, Dia 9.5, 1.925 mm

25

Shim, Dia 9.5, 2.800 mm

25

Shim, Dia 9.5, 2.350 mm

25

Shim, Dia 9.5, 2.525 mm

25

Shim, Dia 9.5, 2.925 mm

25

Shim, Dia 9.5, 2.400 mm

25

Shim, Dia 9.5, 1.975 mm

25

Shim, Dia 9.5, 2.225 mm

25

Shim, Dia 9.5, 2.675 mm

25

Shim, Dia 9.5, 1.825 mm

25

Shim, Dia 9.5, 2.575 mm

25

Shim, Dia 9.5, 3.025 mm

25

Shim, Dia 9.5, 2.550 mm

25

Shim, Dia 9.5, 2.050 mm

25

Shim, Dia 9.5, 2.725 mm

25

Shim, Dia 9.5, 2.125 mm

25

Shim, Dia 9.5, 2.900 mm

25

Shim, Dia 9.5, 2.150 mm

25

Shim, Dia 9.5, 3.000 mm

25

Shim, Dia 9.5, 2.175 mm

25

Shim, Dia 9.5, 2.100 mm

25

Shim, Dia 9.5, 2.275 mm

25

Shim, Dia 9.5, 2.300 mm

25

Shim, Dia 9.5, 2.825 mm

25

Shim, Dia 9.5, 1.900 mm

25

Shim, Dia 9.5, 3.075 mm

25

Shim, Dia 9.5, 2.025 mm

25

Shim, Dia 9.5, 1.875 mm

25

Shim, Dia 9.5, 1.775 mm

25

Shim, Dia 9.5, 2.450 mm

25

Shim, Dia 9.5, 2.775 mm

26

Gasket Kit, Full
