Главная Каталог товаров HUSQVARNA EPC 2014 HUSQVARNA Offroad HUSQVARNA 2014 FC 350 HQV (F2201N1) [EU] HUSQVARNA 2014 Offroad TIMING DRIVE|Engine|36

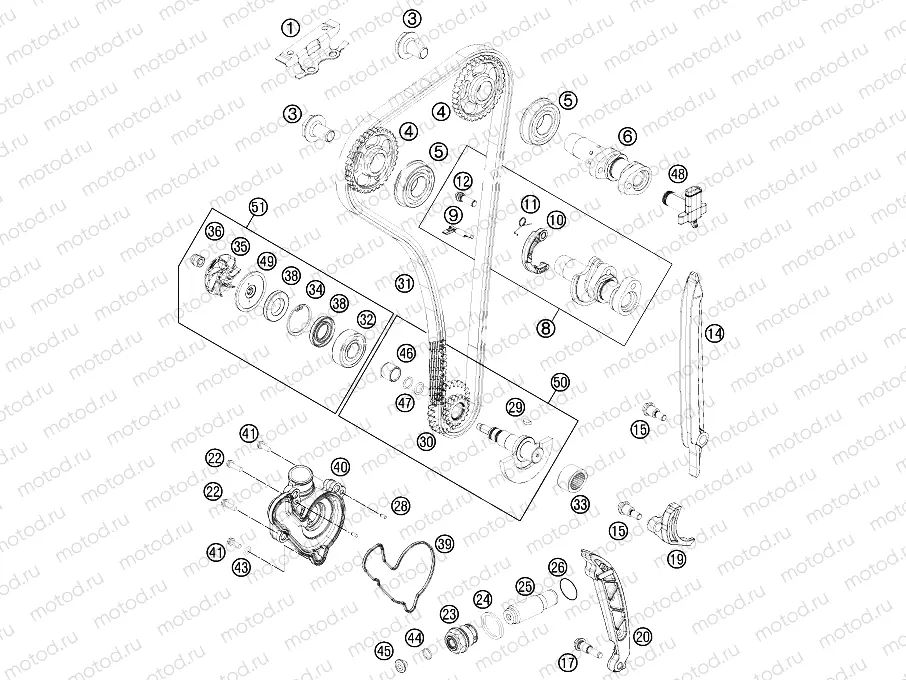

TIMING DRIVE|Engine|36

TIMING DRIVE|Engine|36
Например: 77236004100
1
77236004100
TIMING CHAIN GUIDE TOP
3
77036012100
CAMSHAFT GEAR SCREW 08
4
77236011000
CAMSHAFT GEAR
5
0625060043
Roulement (6004 NR C3 ´05)
6
77236009000
CAMSHAFT INTAKE
8
77836010044
CAMSHAFT EXHAUST CPL.
9
77236015100
Auto decompression
10
77036016100
AUTO DECO WEIGHT
11
77236017000
SPRING FOR AUTO DECOMPR.
12
77236019000
BUSHING SCREW AUTODEC.
14
77236001000
TIMING CHAIN GUIDE
15
77236001160
BUSHING SCREW M6
17
77236002160
BUSHING SCREW M8
19
77236005000
SECURING PROTECTION
20
77236002000
TENSIONING RAIL
22
0025060406
Vis
23
77336008000
HOLDING BOLT M24X1,5
24
0603242920
CU SEAL-RING DIN7603 A24X29X2
25
77036003000
CHAIN ADJUSTER HYD. 05
26
0770180020
O-Ring
28
0402040980
NEEDLE ROL.DIN5402 NRB 4X9,8
29
0888030037
Woodruff key (3X3,7)
30
77236076000
TIMING VALVE TWIN WHEEL
31
77236013000
Chaîne distribution
32
0625062022
Roulement (6202 C0 2)
33
77230058000
NEEDLE BEARING NK16/16
34
0472300120
CIRCLIP 30X1,2
35
81235055020
WATER PUMP ROTOR
36
61230045000
CAP NUT M6 STAINLESS STEEL
38
07601530451
SHAFT SEAL RING 15X30X4.5 BAUD
39
77735053000
Gasket - water pump
40
77735052000
WATERPUMP COVER
41
0025060256
Vis
43
0603061001
CU-SEAL RING DIN7603-6X10X1
44
0770010010
o-ring 10.00x1.00 NBR70
45
77236080100
SCREW PLUG
46
77236072120
Wear bushing 12/15/12,5
47
07700900151
O-Ring
48
77236081000
ANGLE PIECE F. BREATHER SYSTEM
49
81235055110
DISC WATER PUMP
50
77536072033
BALANCER SHAFT CPL.
51
77235055010
Water pump repair Kit
