Главная Каталог товаров HUSQVARNA EPC 2014 HUSQVARNA Offroad HUSQVARNA 2014 FC 350 HQV (F2201N1) [EU] HUSQVARNA 2014 Offroad SHIFTING MECHANISM|Engine|34

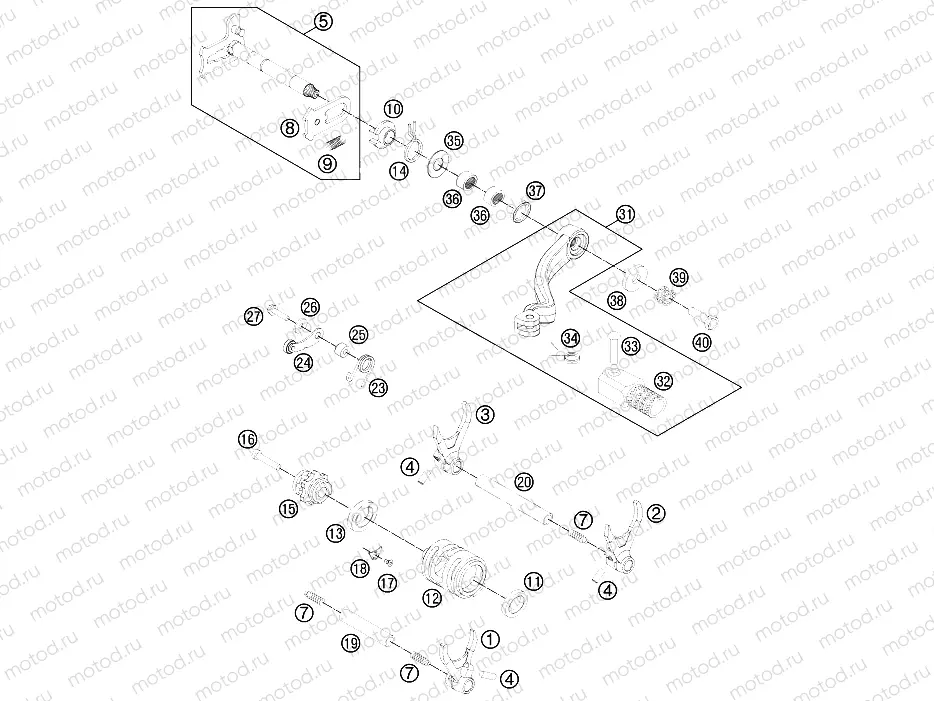

SHIFTING MECHANISM|Engine|34

SHIFTING MECHANISM|Engine|34
Например: 54834001000
1
54834001000
SHIFTING FORK 4TH/5TH GEAR 03
2
54834002000
SHIFTING FORK 2ND GEAR 03
3
54834003000
SHIFTING FORK 1ST/3RD GEAR 03
4
0402061480
NEEDLE ROLLER DIN5402 6X14,8
5
50534005044
Shift shaft cmpl.
7
58038023200
PRESSURE SPRING 0,9MM
8
61234008044
SLIDING PLATE
9
56534013100
TENSIONING SPRING 0,8MM
10
54634020000
SPRING GUIDE
11
0625069034
Roulement
12
54834012000
SHIFT ROLLER 03
13
0625618050
Roulement (61805 C3)
14
54834014000
RETURN SPRING 03
15
77234015000
SHIFT LOCATING DRUM CPL.
16
0912060353
AH SCREW DIN0912-M 6X35
17
0019050106S
INT. TORX FLAT HEAD M5X10 10.9
18
75030085100
GasGas Retaining bracket crankshaft bear
19
54834019000
SHIFT. RAIL MAIN SHAFT 250/300
20
54834020000
SHIFT. RAIL C. SHAFT 250/300
23
60034023000
ARRESTING LEVER SPRING 03
24
50334024144
LOCATING LEVER CPL. 08
25
54634052300
SLEEVE FOR LOCKING LEVER
26
0021050003
washer DIN 9021 A - 5.3
27
0025050206
Vis
31
54734031000
Gear change pedal
32
54634131000
STEP PLATE FOR SHIFT LEVER 250
33
54634031050
BOLT 6X25 FOR SHIFT LEVER
34
54634032100
SHIFTING LEVER SPRING 250
35
54634050000
STOP DISK 14X30X1
36
54632095000
Needle bearing (14x20x12)
37
0760142460
radial shaft seal 14x24x6 B
38
50232050001
Rondelle (6,4x17x3)
39
50233041000
pc - Rondelle (Lock)
40
59009062016
Vis (spec)
