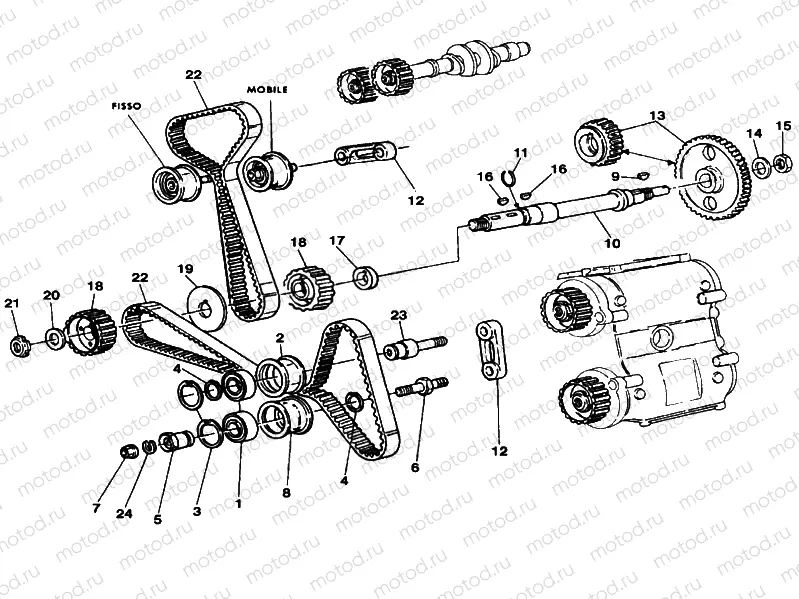

TIMING BELT » UNCLASSIFIED

TIMING BELT » UNCLASSIFIED
Например: 70250015A
1
70250015A
Roulement
2
45110081A
BUSHING
3
735033380
Seeger
4
735001747
.SEEGER RING 17 DIN 471
5
45110021A
ECCENTRIC TENSIONER
6
45110012A
MOVABLE TENSIONER ROLLER PIN
7
74940081A
2 pc - Nut
8
45110071A
PULLEY, MOVABLE TENSIONER
9
68010131A
pc - KEY, WOODRUFF 4X5X10
10
14710142A
LAYSHAFT TIMING
11
88210031A
5 pc - .SNAP RING
12
71310251A
TENSIONER SPACER
13
17120201A
TIMING GEARS SET
14
85110131A
pc - Rondelle (Lock)
15
75011601A
.NUT M14X1X7
16
68010131A
pc - KEY, WOODRUFF 4X5X10
17
71310082A
Entretoise
18
25510051A
PULLEY, TIMING
19
85610441A
BELT ROLLER SEPARATING WASHER
20
85211731A
0 pc - Rondelle
21
70350062A
ELASTIC-STOP RING NUT
22
73710091B
2 pc - Timing drive toothed belt (Z=95)
23
45110042A
STRETCHING PIN
24
85310021A
pc - Rondelle (spring)
