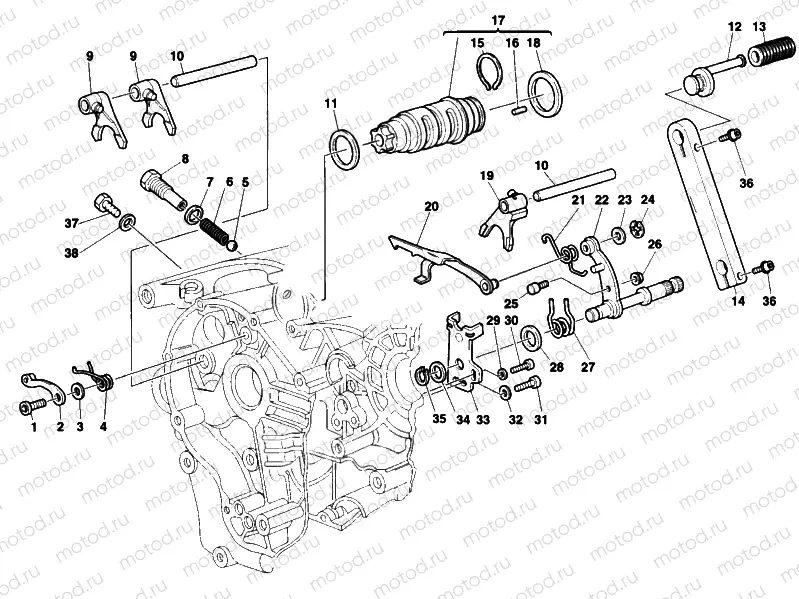

GEAR CHANGE MECHANISM » UNCLASSIFIED

GEAR CHANGE MECHANISM » UNCLASSIFIED
Например: 77910391A
1
77910391A
Vis (M8x21,5)
2
45520181A
GEAR FIXING CLICK ASSEMBLY
3
85210532A
Rondelle
4
79910491A
2 pc - SPRING, RETURN
5
768351134
0 pc - .BALL 11MM
6
066013143
pc - GEAR SELECTOR SPRING
7
027291090
pc - .GASKET 16.2X24X2
8
77912033A
.SCREW M16X1.5
9
180Z0031A
GEAR SELECTOR FORK,1ST/4TH-2ND/3RD
10
82113881A
FORK PIN
11
85210051A
pc - .THRUST WASHER 1 MM
11
85210061A
. THRUST WASHER 02MM
11
85210071A
. THRUST WASHER 0.3 MM
12
82110691A
ECCENTRIC PIN
13
76510171A
Damper
14
45610021A
Gear change pedal
15
88210061A
.NEEDLE RETAINING RING
16
82110701A
.SPECIAL ROLLER
17
18220062B
FORK DRUM
18
066013060
.THRUST WASHER 45.2X49X1.0
18
066013061
.THRUST WASHER 45.2X49X0.2
18
066013062
.THRUST WASHER 45.2X49X0.3
18
85210941A
pc - .THRUST WASHER 45.2X49X0.9
19
180Z0041A
FORK-SHIFT, 5TH&6TH
20
18020261A
CONTROL FORK
21
79912961A
Return spring
22
82110011A
GEAR SELECTOR SHAFT
23
076592205
.THRUST WASHER 10.5X15X0.2
24
88450341B
pc - . SPRING RING
25
066013165
.GEARCHANGE LEVER PIN
26
74810401A
20 pc - Nut
27
79915061A
SPRING, SHIFT RETURN
28
88110121A
CENTERING RING
29
85211721A
Rondelle (6x14.2x1.3)
30
77150678B
pc - Vis
31
77151238C
0 pc - Vis (M8x18)
32
85310021A
pc - Rondelle (spring)
33
82610261A
STOPPER PLATE
34
040029126
.THRUST WASHER 15.5X22X0.5
35
735001542
Seeger
36
77150668B
Vis
37
709312116
SCREW M8X1.00X14
38
42020008A
10 pc - Rondelle
