Главная Каталог товаров KTM EPC 2013 KTM Street KTM 2013 Naked Bike KTM 2013 Street 990 SUPER DUKE R (F9803M8) [EU] KTM TANK, SEAT

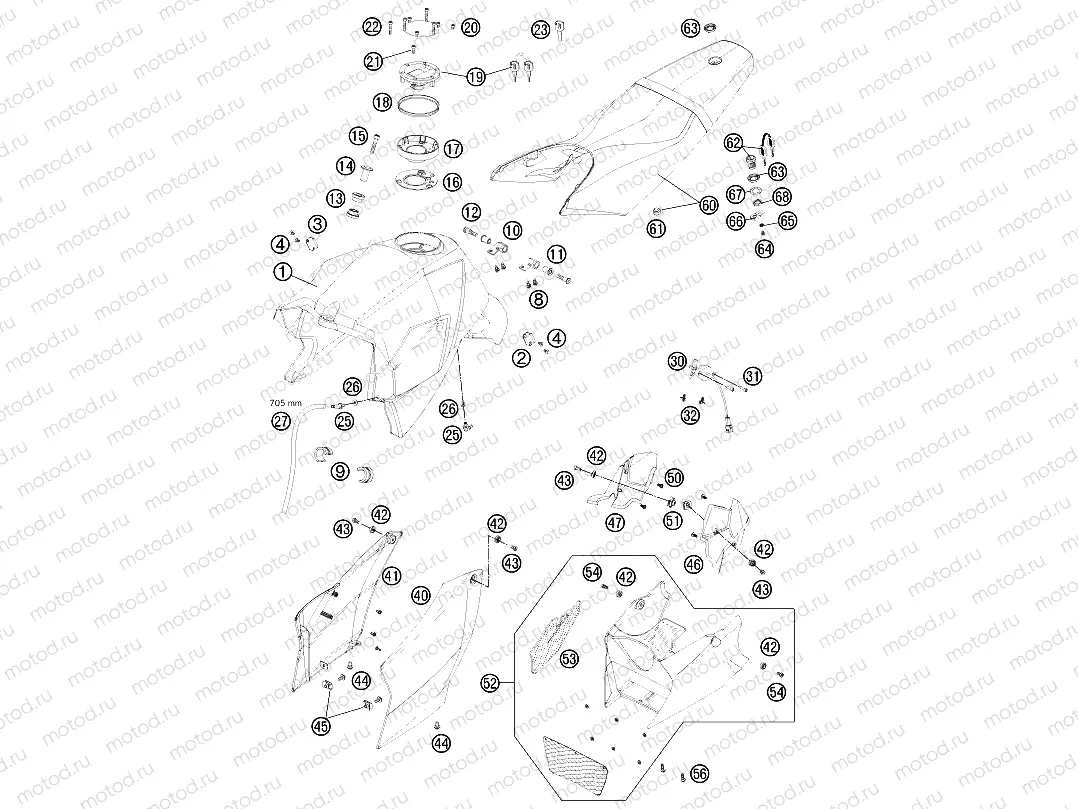

TANK, SEAT

TANK, SEAT
Например: 6110701300033A
1
6110701300033A
FUEL TANK SD-R 07
2
61007041000
BRACKET SEAT L/S 05
3
61007042000
BRACKET SEAT R/S 05
4
0991050102
FLAT H.SCEW DIN7991-M5X10 10.9
8
0025060126
Vis
9
61007014000
SPACER FUEL TANK 05
10
61007025000
BRACKET FUEL TANK 05
11
61007027000
RUBBER BEARING FUEL TANK 05
12
61007026000
Vis (spec)
13
61007065000
collar bushing, front tank holder
14
6100716000001
BEARING SLEEVE, EXTERNAL
15
0912080403
SHCS DIN 912 M8x40
16
60007008051
SEAL. FLANGE F.TANK INSERT 03
17
60007008150
TANK INSERT 05
18
60007008052
SEAL. RING F. TANK INSERT 03
19
61007008000
TANK PLUG CPL. 05
20
0912050083
Vis
21
0912050123
AH SCREW DIN0912-M 5X12
22
0912050303
AH SCREW DIN0912-M 5X30
23
40011166100
Clé Vierge
25
60007024000
CONNECT.PIECE F.OVERFLOW M7 03
26
60007024050
GASKET FOR CONNECTING PIECE 03
27
60007126001
HOSE 5,4X9,4 NBR, METER
30
58207080200
GAS LEVEL SENSOR 07
31
0912050163
AH SCREW DIN0912-M 5X16
32
61011094000
CABLE TIE WITH PLUG M6
40
6110805000020B
SPOILER L/S WHITE
41
6110805100020B
SPOILER R/S WHITE
42
60008045000
SPECIAL WASHER D=16,5MM 03
43
0012060123
AH SCREW DIN6912 M6X12
44
0024060136
Vis
45
54603048100
clip nut M6
46
61108050050
INNER COVER SPOILER LEFT 07
47
61108051050
INNER COVER SPOILER RIGHT 07
48
0021060003
Rondelle
50
0081050121
EJOT PT screw K50x12
51
50235033300
SNAP-NUT HOLDER M6 KP142
52
6100802014420B
FRONT-END SPOILER CPL. WHITE
53
61008020150
THERMAL PROTECTION FOIL 07
54
0012060164
AH SCREW DIN6912 M6X16 SL
56
0017060205
Vis
60
6100704000047
Seat black logo orange 07
20 097 ₽/шт
61
58407040060
PLUG FOR SEAT
62
61007050000
SEAT LOCK 05
63
61007052000
SPACER RING SEAT LOCK 05
64
61007050020
SCREW M4 AF32 05
65
61007050010
WASHER AF150 05
66
61007050040
CLOSING PANEL TR248 05
67
61007050050
WASHER TR12.01 05
68
61007050030
NUT M19 X1 AF36 05
