Главная Каталог товаров KTM EPC 2013 KTM Street KTM 2013 Naked Bike KTM 2013 Street 990 SUPER DUKE R (F9803M8) [EU] KTM FRAME

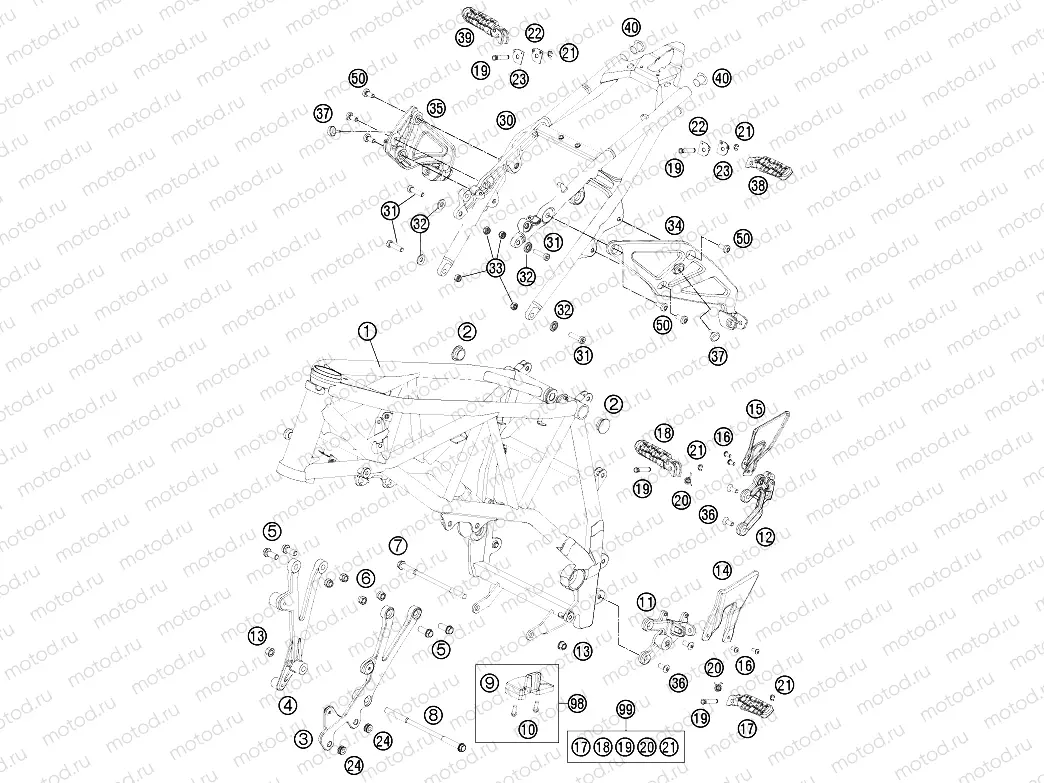

FRAME

FRAME
Например: 6110300120004
1
6110300120004
FRAME ''FG08''ORANGE 990SD-R08
2
61003088000
PLUG SFL28 05
3
6100300500033S
ENGINE SUPPORT L/S 07
4
6100300600033S
ENGINE SUPPORT R/S 07
5
0015100243
Vis
6
54310086100
SELF LOCKING NUT M10 CU WS=14
7
60003013000
Vis (M10x172)
8
60003014000
ENGINE BRAC. SCREW M10X206 03
9
60004076100
CHAIN SLIDING BLOCK 05
10
0017060206
SCREW F. PLASTIC K60X20AL SW6
11
6100303800033S
FOOT REST BRACKET FR. LE. 07
12
6100303900033S
FOOT REST BRACKET FRONT R/S 05
13
55530044000
Nut
14
61134032000
HEEL PROTECTOR L/S 07
15
61113032000
HEEL PROTECTOR R/S 07
16
0738060101
COU.SUNK SCR. AH ISO7380 M6X10
17
61003050000
FOOTREST FRONT L/S CPL. 05
18
61003051000
FOOTREST FRONT R/S CPL. 05
19
60003044100
footrest bolt, rear
20
61003042000
SPRING FOOTREST FRONT 05
21
0799060003
retaining washer DIN 6799 - 6
22
60003152000
ENGAGE PANEL FOOTREST L/S 03
23
60003052000
ENGAGE PANEL FOOTREST R/S 03
24
60003098000
RUBBER SLEEVE 03
30
6110300210033
SUB FRAME BLACK MATT 07
31
0012080303
AH SCREW DIN6912-M 8X30
32
61003002058
STEPPED WASHER 8,5X20X3,5 05
33
0926080003
STOP NUT DIN6926 M8 SS
34
6100304800033S
FOOTREST BRACKET REAR
35
6100304900033S
FOOTREST BRACKET REAR
36
0019080206S
Vis (Flat M8x20)
37
60006001021
DISTANCE RUBBER AIRBOX 03
38
60003050000
FOOTREST CPL. L/S REAR 03
39
60003051000
FOOTREST CPL. R/S REAR 03
40
61003089000
PLUG SFL 22X1,8-3,5
50
61003052000
Vis (spec)
98
60004076110
CHAIN SLIDING KIT BELOW
99
61003040010
FOOTPEG KIT 990 SD/SDR
