Главная Каталог товаров KTM EPC 2012 KTM Street KTM 2012 Travel KTM 2012 Street 990 ADVENTURE WHITE ABS 11 (9860L6) [AU, GB] KTM TANK, SEAT

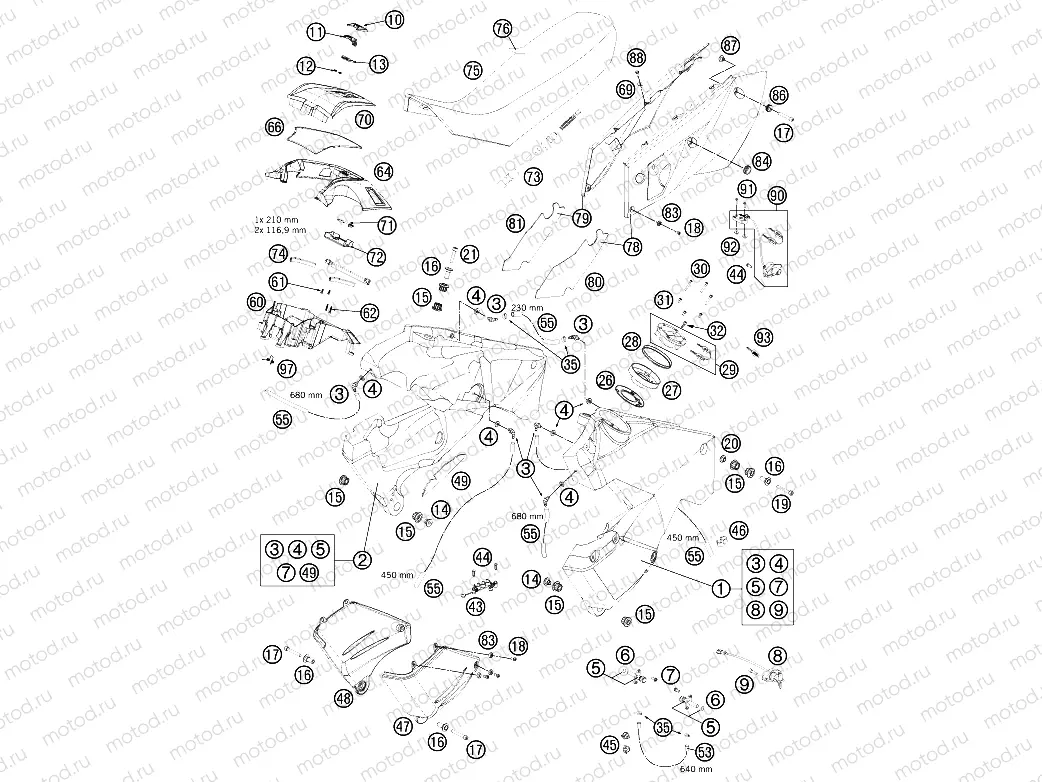

TANK, SEAT

TANK, SEAT

Например: 6010701324428A

1

6010701324428A

Fuel tank l/s cpl. white 09

206 186 ₽/шт

2

6010711323328A

Fuel tank r/s cpl. white 08

206 186 ₽/шт

3

60007024000

CONNECT.PIECE F.OVERFLOW M7 03

4

60007024050

GASKET FOR CONNECTING PIECE 03

5

58507003200

Robinet d'essence

6

0770020130

O-Ring

7

0025060126

Vis

8

58207080000

GAS-LEVEL SENSOR ADV. 2002

9

0912050163

AH SCREW DIN0912-M 5X16

10

60107020051

COVER PUSH BUTTON

11

60107020052

PUSH BUTTON

12

60107020053

COIL SPRING

13

60107020054

PUSH BUTTON SUPPORT

14

60007062000

BEAR.BUSH.INSIDE L=15,5MM 03

15

60007065000

TANK RUBBER BUSHING 03

16

60007060000

BEARING BUSHING OUTSIDE 03

17

0912080553

AH SCREW DIN912 M8X55

18

0984060163

Vis (M6x16)

19

0912080503

AH SCREW DIN912 M8X50

20

60007061000

BEARING BUSHING INSIDE 03

21

0912080403

SHCS DIN 912 M8x40

26

60007008051

SEAL. FLANGE F.TANK INSERT 03

27

60007008150

TANK INSERT 05

28

60007008052

SEAL. RING F. TANK INSERT 03

29

60007108000

TANK PLUG

30

0912050303

AH SCREW DIN0912-M 5X30

31

0912050083

Vis

32

0912050123

AH SCREW DIN0912-M 5X12

35

58031005000

Collier (12 mm)

43

60011057000

HOSE HOLDER TRIPLE 03

44

0081050181

SCREW FOR PLASTIC K50X18 T20

45

57013072100

WIRING HOLDER 16MM

46

55011022100

CLAMP D=6/8MM, BLACK

47

60107013050

TANK PROTECTOR L/S 06

48

60107113050

TANK PROTECTOR R/S 06

49

60007095100

THERMAL PROTECT. FOIL TANK 07

53

60007416640

FUEL HOSE 6,4X3,2 L=640

55

78015019000

HOSE EPA D=6/10 L=2000MM

60

60107023000

STORAGE BOX BOTTOM PART

61

0081030103

SCREW K30X10 T10

62

0081030163

SCREW K30X16 T10

64

6010701900033

Stor.box cent.part black 09

2 743 ₽/шт

66

60107020070

COVER GASKET

69

60007020040

PLASTIC WASHER 03

70

6010702000033

Cover for storage box 09

2 332 ₽/шт

71

60107019082

LOCK BOLT STORAGE COMPARTMENT

72

60107019080

SUPPORT F. LOCK BOLT

73

60107032000

STORAGE BOX CABLE

74

58312085100

EDGE PROTECTOR PER METER

75

60007040400

SEAT BLACK 2012

76

60007040450

SEAT COVER ADV. 2012

78

6010804100028A

Side Cover L/s Rear White 12

28 842 ₽/шт

79

6010804200028A

Side Cover R/s Rear White

30 889 ₽/шт

80

60008041150

THER.PROT.FOIL SI. CO. L/S 07

81

60008042150

THER.PROT.FOIL SI. COV. R/S 07

83

60008045000

SPECIAL WASHER D=16,5MM 03

84

60107053000

RUBBER SLEEVE F.SEAT LOCK 09

86

41001052000

Damper (D=12 mm)

87

60012008002

COLLAR BUSHING 8,2X12X20X9 03

88

0017060205

Vis

90

60107050000

SEAT LOCK

91

0738060301

COU.SUNK SCR. AH ISO7380 M6X30

92

60008013050

DISTANCE BUSH. 7X12X18X3,7 03

93

40011166100

Clé Vierge

97

60107023080

STORAGE COVER BOX SPRING
