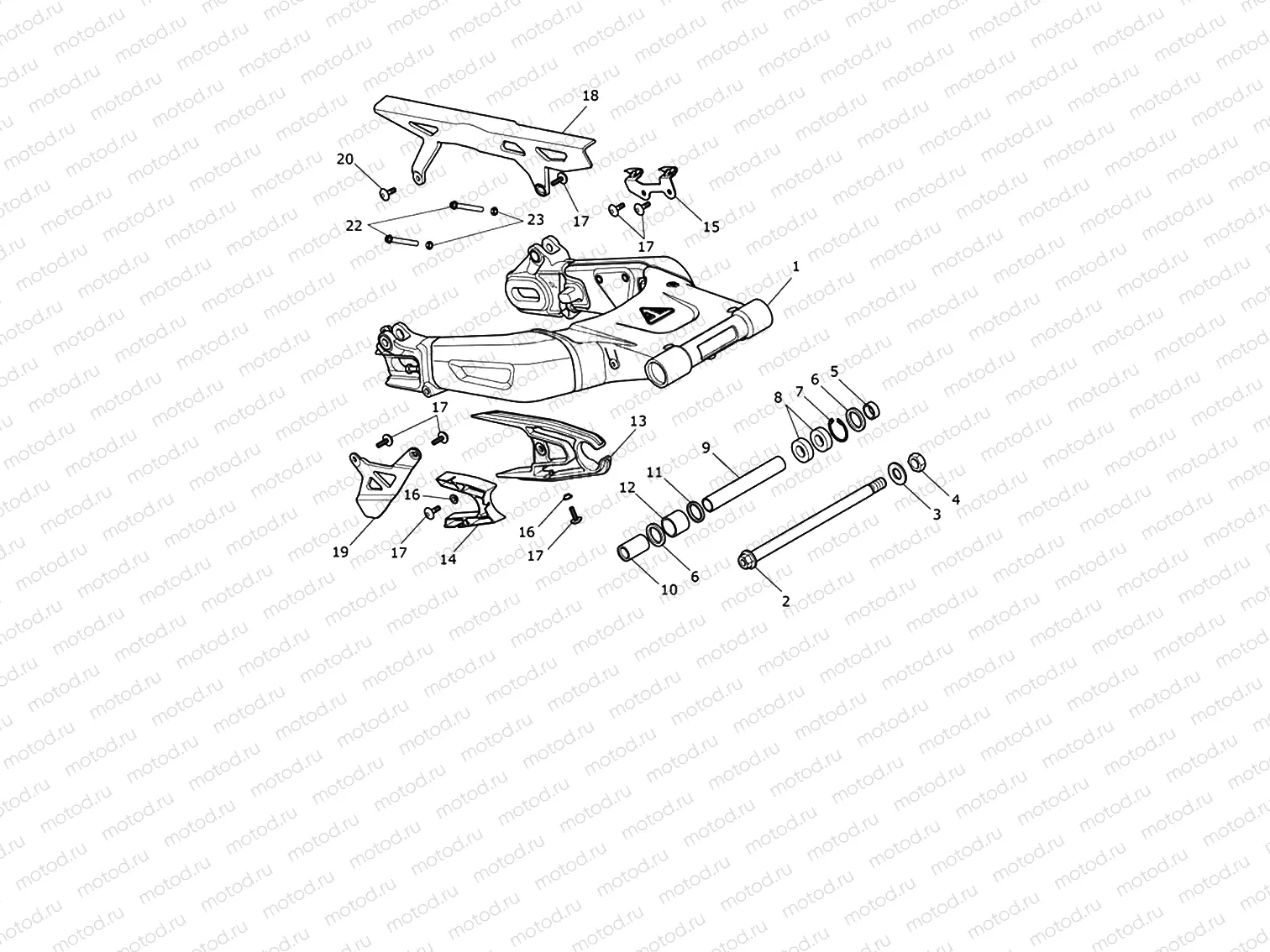

Swingarm Assembly

Swingarm Assembly

Например: T2054809

1

T2054809

Rear arm

1 шт. в узле

2

T2050518

Spindle, Swingarm

1 шт. в узле

3

T3551240

Washer, M16 x 34 x 3

1 шт. в узле

4

T3350155

Locknut, Thin, M16

1 шт. в узле

5

T2054063

Spacer, 25 x 17 x 8.5

1 шт. в узле

6

T3600044

Oil Seal, 35 25 4

2 шт. в узле

7

T3500204

Circlip, Int, 35 x 1.5

1 шт. в узле

8

T3800081

Bearing, Ball, 17 35 10

2 шт. в узле

9

T2051225

Spacer, Internal, 22x 149.5

1 шт. в узле

10

T2050231

Sleeve, Ground, 25 17 40

1 шт. в узле

11

T3600201

Seal, SD 25 32 04

1 шт. в узле

12

T3800014

Roller bearing

1 шт. в узле

13

T2050425

Guard chain sliding shoe

1 шт. в узле

14

T2050489

Damper, Rubbing Strip

1 шт. в узле

15

T2050533

Moulding, Brake Line

1 шт. в узле

16

T3010061

Flanged Sleeve, M6 x 9 x 3.25

2 шт. в узле

17

T3330727

Vis (M6x20)

7 шт. в узле

18

T2050454

Chainguard, Plastic

1 шт. в узле

19

T2050409

Chainguard, Lower

1 шт. в узле

20

T3331010

Bolt, But/Hd, Skt, M6 x 16, S/

1 шт. в узле

22

T3203204

Screw, H/Hd, M8 x 55, Slv

2 шт. в узле

23

T3350303

Nut, M8, Silver

2 шт. в узле
