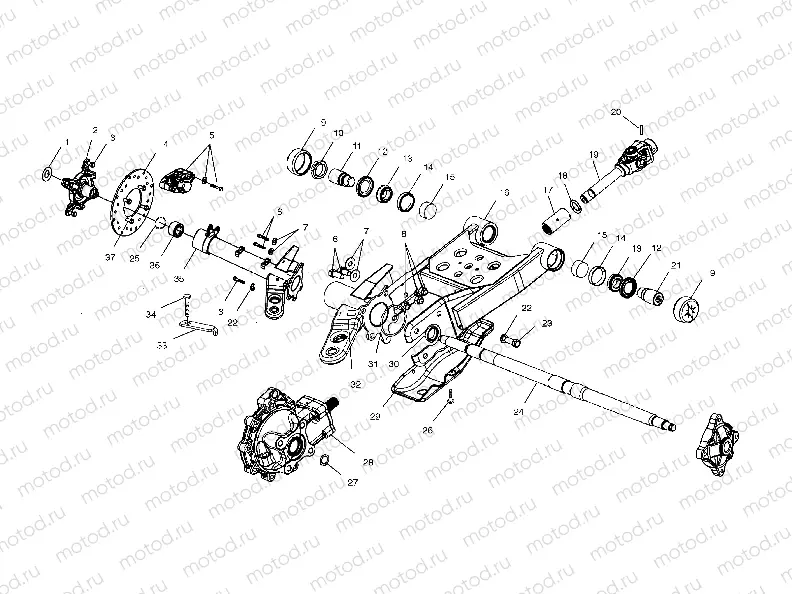

SWING ARM/REAR GEARCASE MOUNTING - A02CD50AA/AB/FB (4970197019D03) | SWING ARM/REAR GEARCASE MOUNTING - A02CD50AA/AB/FB (4970197019D03)

SWING ARM/REAR GEARCASE MOUNTING - A02CD50AA/AB/FB (4970197019D03) | SWING ARM/REAR GEARCASE MOUNTING - A02CD50AA/AB/FB (4970197019D03)

Например: 5412022

1

5412022

O-RING-0.739X0.879X0.070

2

5135207

HUB-WHEEL 4WD MACH

3

7515523

STUD

4

5244882

DISC-BRAKE REAR 8.125X.188

5

7515481

Vis

5

1910680

ASM-CALIPER DH4P W/INS PADS

5

7552603

Rondelle (Lock)

6

7517604

Vis

7

7555721

Rondelle

8

7547065

NUT-1/2-20 NYLOK Y

9

5411532

CAP,SWINGARM PIVOT

10

5131863

NUT JAM SWINGARMPIVOT

11

5131864

PIVOT SWINGARM THREADED

12

3610072

SEAL,SWINGARM PIVOT

13

3554506

BRG TAPER.ROLL.CONE

14

3554507

BRG TAPER ROLL CUP

15

5411602

SEAL-SWINGARM PIVOT

16

1541577

SWINGARM,ASM. (Incl. 14,15)

17

7080433

FITTING LUBRICATION THREADED(1

17

5132201

COUPLING-PROP SHAFT GREASED

18

5411092

O-RING

19

1380137

PROPSHAFT ASM REAR

20

7661913

PIN SPRING

21

5132683

PIVOT-SWINGARM RH

22

7553201

Rondelle (Lock)

23

7517585

BOLT-1/2-13X1 1/4 HXHD GR5-Z

24

5132699

AXLE-REAR

25

7710507

RING RET. 2.500 INTERNAL

26

7517612

Vis

27

5411531

O-Ring

28

LR--

CALIPER, BRAKE, RH

29

1012881

SKID PLATE,REAR

29

5811716

PAD-RUBBER

29

5242851-067

PLATE-SKID,REAR HOUSING,BLK

30

5132698

COLLAR-AXLE LOCK

31

5411707

O-Ring

32

7078261

DECAL-HITCH (1225)

33

5245050

CLAMP-BRAKE LINE REAR

34

7512017

Vis

35

1013264-067

AXLE TUBE LH BLK VL

36

3514634

BEARING-WHEEL 35X64X37MM

37

7512325

Vis
