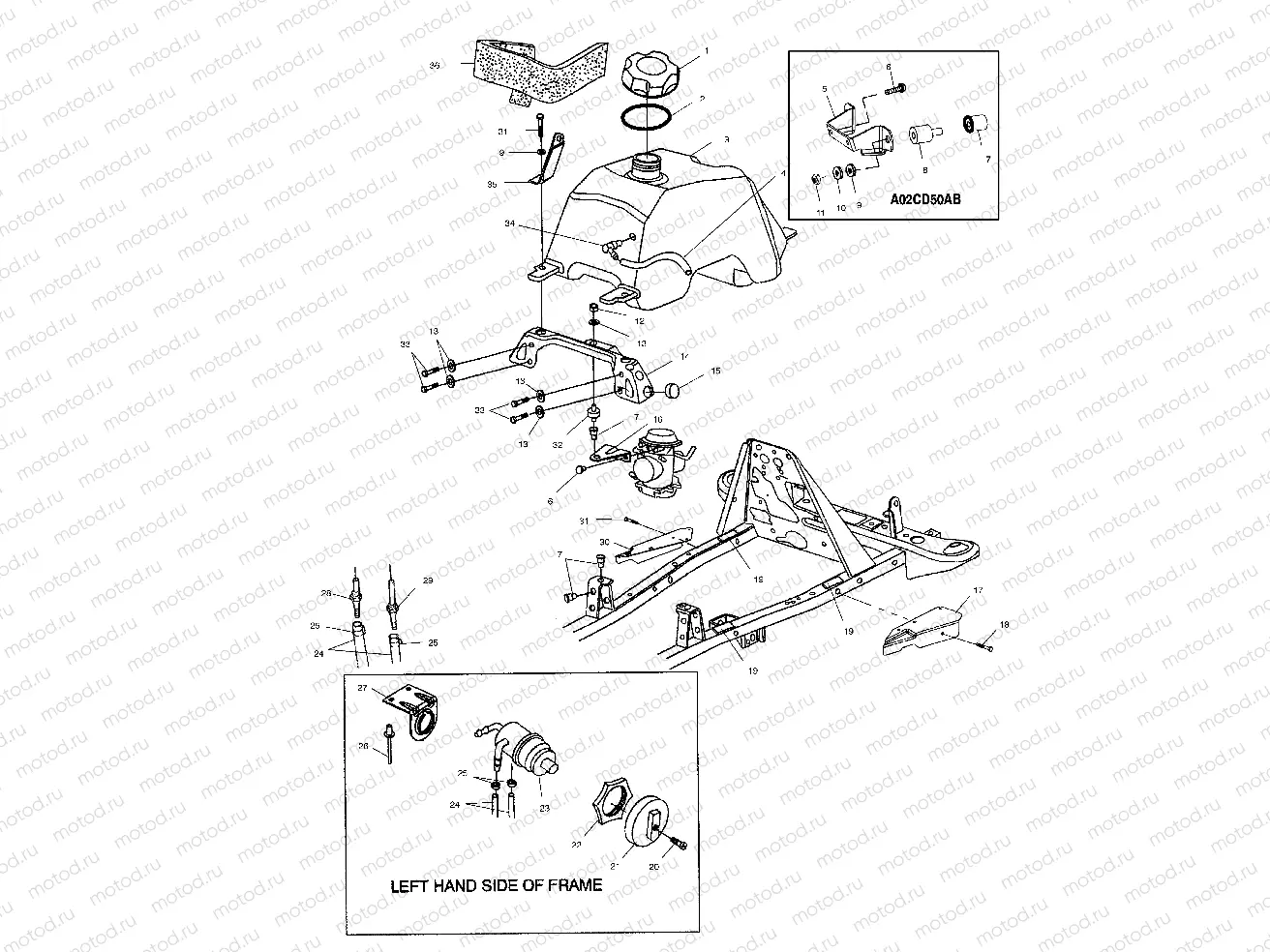

FUEL TANK AND CARBURETOR MOUNTING - A02CD50AA/AB/FB (4970197019B01) | FUEL TANK AND CARBURETOR MOUNTING - A02CD50AA/AB/FB (4970197019B01)

FUEL TANK AND CARBURETOR MOUNTING - A02CD50AA/AB/FB (4970197019B01) | FUEL TANK AND CARBURETOR MOUNTING - A02CD50AA/AB/FB (4970197019B01)

Например: 5450389

1

5450389

Fuel cap

2

5812123

Gasket

3

2520143

TANK ASM,FUEL Substituted by 2520174 (Incl. 5,19,20)

4

8360009-600

LINE FUEL 1/8 ID 600 CM.

5

5240609-067

BRKT CARB.MT.

6

3084205

ASM. SCREW & WASHER

7

7547069

NUTSERT HEX

8

3021086

MOUNT RUBBER CARB

9

7558301

WASHER FLAT

10

7552605

Rondelle

11

7542105

NUT HEX

12

7542122

NUT-NYLOK

13

7555859

WASHER FLAT

14

5245672-067

BRKT-CARB SUPPORT,BLK (AA)

15

5410414

BUMPER RUBBER

16

5245673-067

MOUNT-425/500 CARB,BLK

17

5245533-067

SHIELD-SPLASH RH BLK

18

7517386

Vis

19

5810317

PAD,FUELTANK BRKT. Substituted by 8360026

20

7517505

Vis

21

5432559

KNOB FUEL VALVE

22

5432733

NUT FUEL VALVE

23

7052161

VALVE 3-WAY

24

8450040-600

LINE FUEL 1/4 ID(600 CM.)

25

7080003

CLAMP HOSE

26

7661637

RIVET INTERLOCK Z

27

5240577-067

BRKT,FUELVALVE,BLK

28

7052150

FITTING FUEL OUT MAIN 4 Y

29

7052149

FITTING FUEL OUT RES. Z

30

5245394-067

SHIELD-SPLASH LH BLK

31

7512277

Vis

32

3110050

MOUNT CARBURETOR

33

7512276

Vis

34

5431053

VENT TANK

35

5222155

BRKT-FUEL COVER MNT RH PLTD

35

5222154

BRKT-FUEL COVER MNT LH PLTD

36

5811899

FOAM-SEAL,17"
