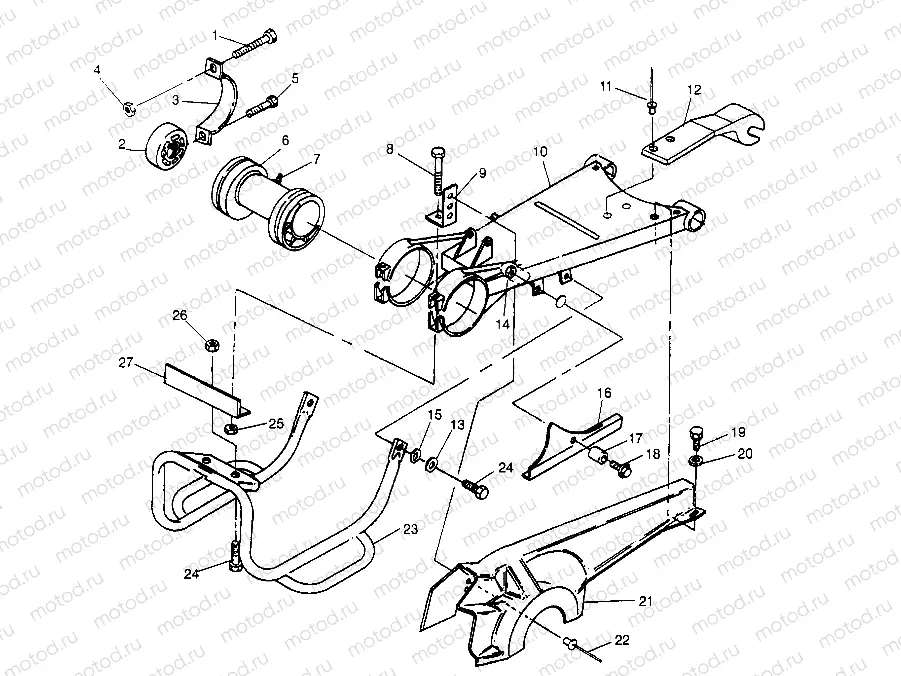

SWING ARM/GUARD MOUNTING 6x6 300 W948730 (4926792679C004) | SWING ARM/GUARD MOUNTING 6x6 300 W948730 (4926792679C004)

SWING ARM/GUARD MOUNTING 6x6 300 W948730 (4926792679C004) | SWING ARM/GUARD MOUNTING 6x6 300 W948730 (4926792679C004)

Например: 7512569

1

7512569

BOLT(10)

2

5130945

HOUSING SWING ARM

3

1580067-067

WELD-BRKT SWING ARM EXT BLK

4

7542522

NUT FLANGE

5

7512520

Vis

6

5130663

HOUSING, AXLE

7

7080306

FITTING LUBE.W/BALL CK.

8

7512576

Vis

9

5222220-067

BRKT CHAIN GUARD BLK.

10

1580063-067

DESC NOT_AVAILABLE

11

7621433

RIVET

12

5431310

GUIDE CHAIN

13

7552901

Rondelle (Lock)

14

7542321

NUT FLANGE

15

7558402

WASHER FLAT

16

5430776

GUARD CHAIN

17

5332828

BUSHING

18

7515304

SCREW-FLANGED

19

7512252

SCREW(10)

20

7558301

WASHER FLAT

21

2640009

"""GUARD CHAIN"""

22

7621301

RIVET

23

1040183-067

"""GUARD RACK"""

24

7512325

Vis

25

7542503

NUT FLEXLOCK

26

7542324

Nut (SELF-LOCKING)

27

5222221-067

MOUNT-ROCK GUARD BRKT BLK
