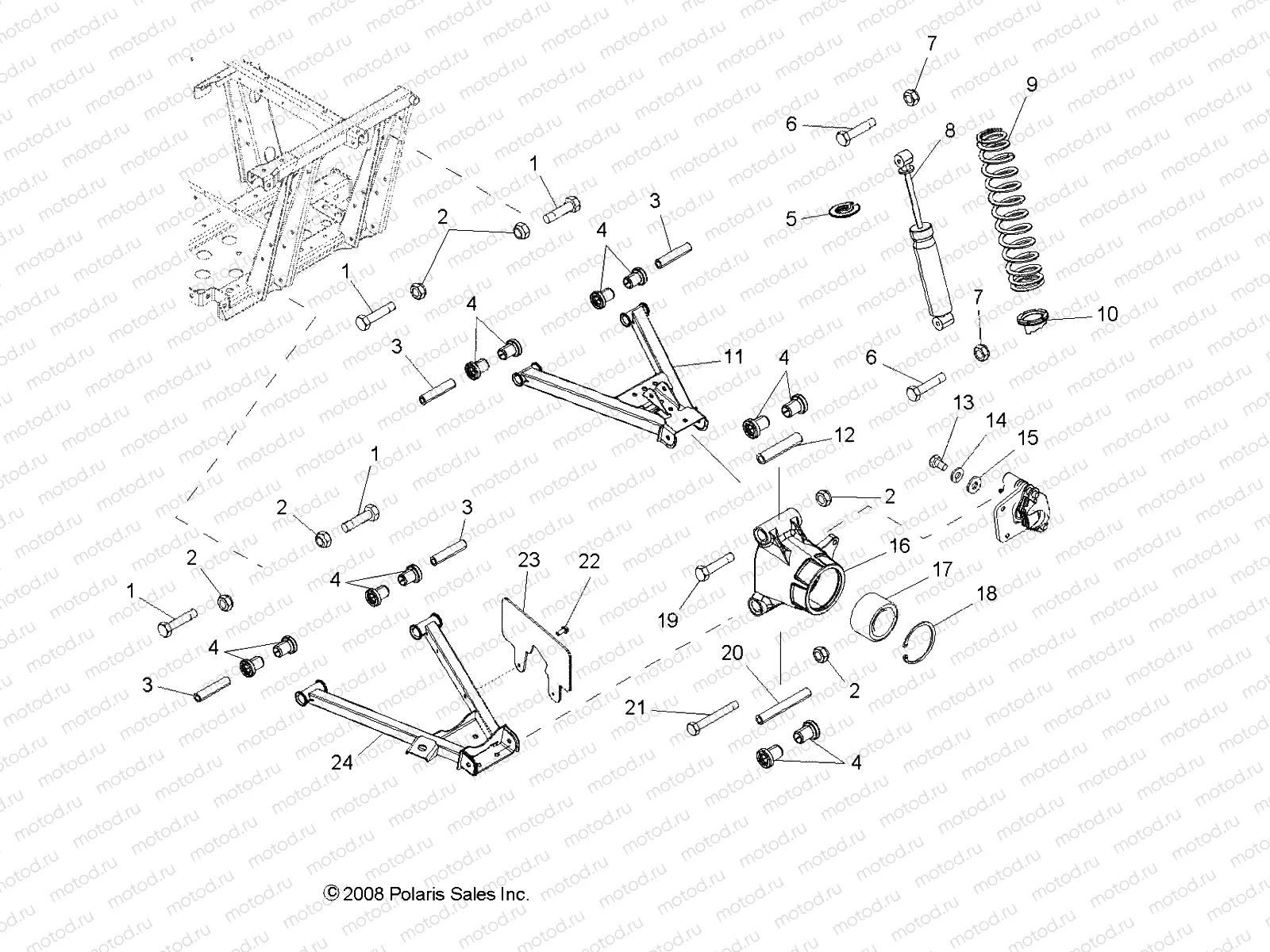

SUSPENSION | SUSPENSION, REAR - R09RB50AF (49RGRSUSPRR097004X4)

SUSPENSION | SUSPENSION, REAR - R09RB50AF (49RGRSUSPRR097004X4)

Например: 7519043

1

7519043

SCR-HXFL-M10X1.25X95 10.9 ZOD(

2

7547333

NUT-M10X1.25 FLG NYLOC-OLIVE D

3

5137591

SHAFT-PIVOT 73.96MM ZINC OLIVE

4

5439270

BUSHING-A-ARM-SHORT BLK

5

5251753

RETAINER-SPRING STEEL

6

7518563

BOLT-M10X1.25X60 HXFLG-OLIVE D

8

7043491

SHOCK-REAR 411.5MM EXT

9

7042334-067

SPRING-240#/12.75 BLK

10

5630551

CAM ADJUST SPRING

11

1016730-067

WELD-CONTROL ARM UPPER BLK

12

5137592

SHAFT-PIVOT 89.71MM ZINC YEL

13

7512365

SCREW CAP

14

7552901

Rondelle (Lock)

15

7558402

WASHER FLAT

16

5134741

CARRIER-BEARING WHEEL LH(MACH)

16

5134531

CARRIER-BEARING WHEEL (MACH)

17

3514635

BEARING-WHEEL 40X74X40MM

18

7710440

RING RETAINING

19

7518566

BOLT-M10X1.25X115 HXFLG-OLIVED

20

5137593

SHAFT-PIVOT 115.11MM ZINC YEL

21

7518562

BOLT-M10X1.25X140 HXFLG-OLV D

22

7512084

Vis

23

5437816-070

SHIELD-CV REAR BLK

24

1016814-067

WELD-CONTROL ARM LWR RH BLK

24

1016813-067

WELD-CONTROL ARM LWR LH BLK
