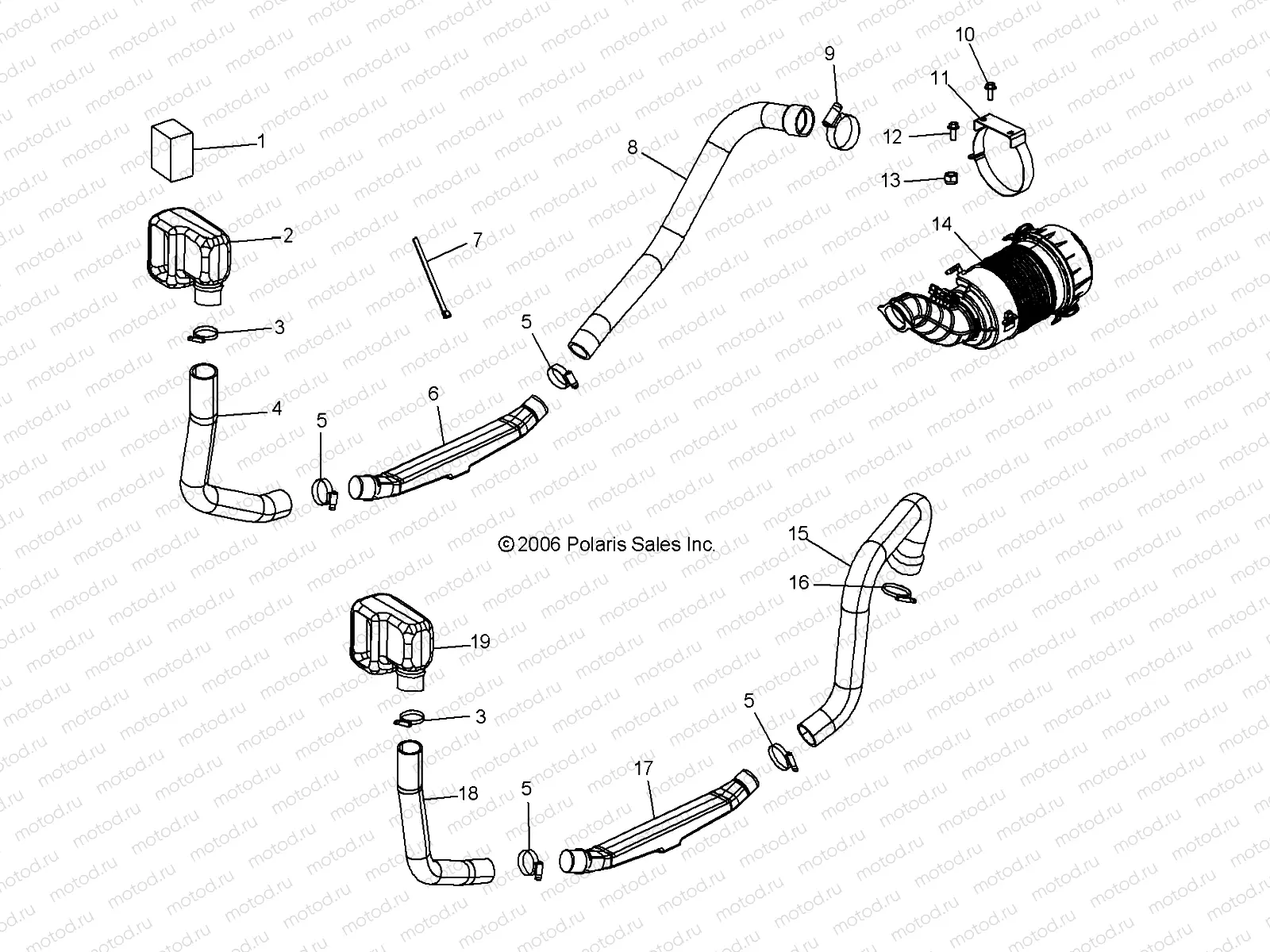

ENGINE | ENGINE, CLUTCH AIR INTAKE - R09RB50AF (49RGRAIRINTAKE08500)

ENGINE | ENGINE, CLUTCH AIR INTAKE - R09RB50AF (49RGRAIRINTAKE08500)
1
5812253
FILTER-INTAKE
2
5436962
BOX-AIR BAFFELING ENGINE
3
7080451
CLAMP HOSE S.S.
4
1910997
HOSE-AIRBOX FRONT
5
7080909
CLAMP NARROW BAND(1.77/2.75)
6
5436961
Duct, Air Intake, Engine
7
7080761
CABLE TIE 14
8
1910998
HOSE-AIRBOX REAR
9
7080560
CLAMP HOSE S.S.
10
7512399
Vis
11
1240101
WELD-AIR CLEANER HANGER
12
7515398
Vis
13
7542324
Nut (SELF-LOCKING)
14
LR--
CALIPER, BRAKE, RH
15
1911000
HOSE-CLUTCH INTAKE REAR
16
7080511
CLAMP NARROW BAND
17
5436959
DUCT-AIR INTAKE
18
1910999
HOSE-CLUTCH INTAKE FRONT
19
5436939
BOX-AIR BAFFELING

Узлы для RANGER 2X4 500 CARB (R09RB50AF) Polaris 2009 RANGER
