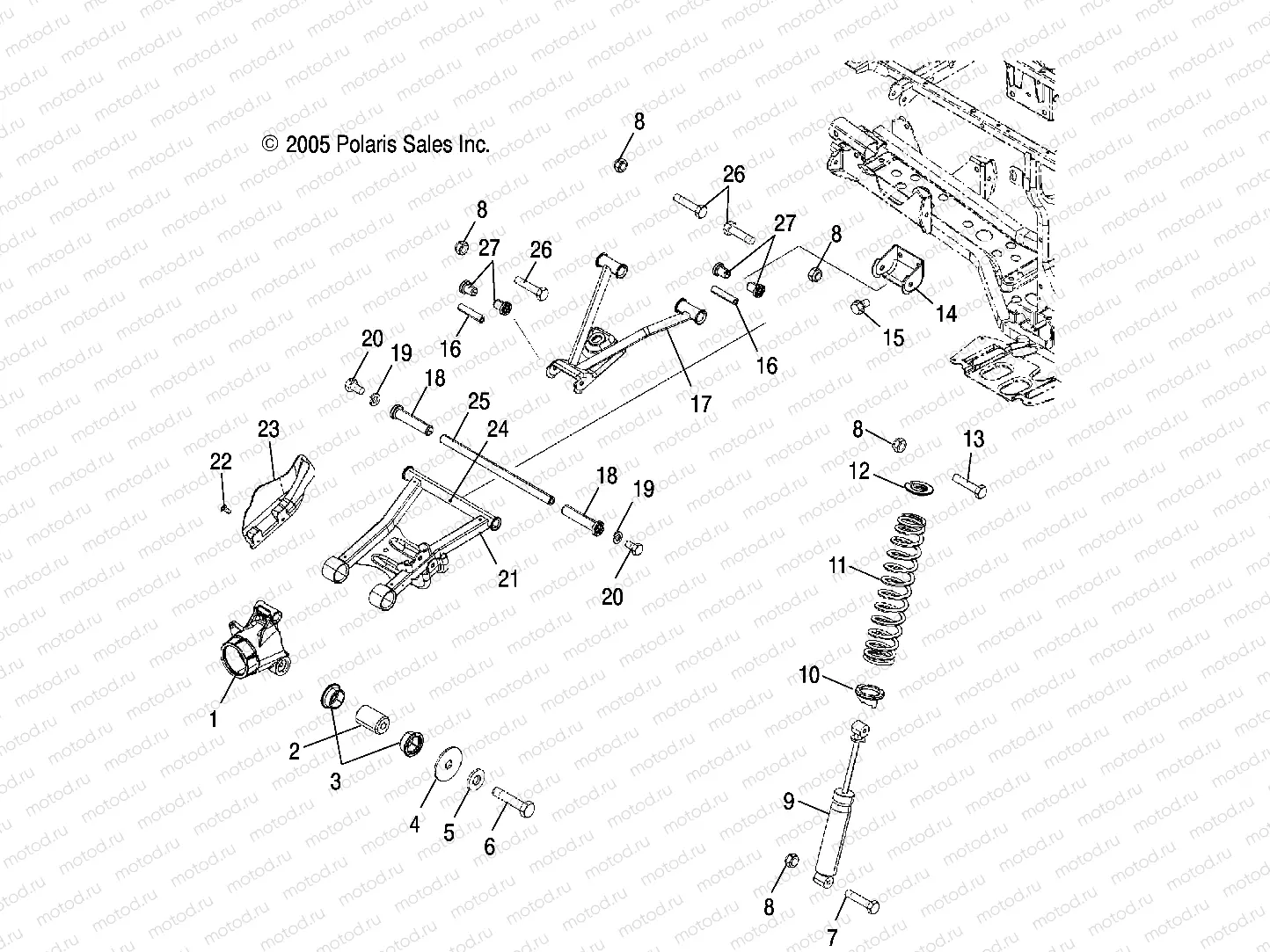

SUSPENSION | SUSPENSION, REAR - A06MH50FB (4999206649920664C10)

SUSPENSION | SUSPENSION, REAR - A06MH50FB (4999206649920664C10)

Например: 5134206

1

5134206

CARRIER-BEARING WHEEL(MACH)

2

5632291

BUSHING-BRNG CARRIER PM 7/16

3

5438902

BUSHING-CONTROL LOWER BLK

4

7555740

Rondelle

5

7552614

Rondelle (Lock)

6

7517873

BOLT-7/16-14 UNC-2AX2.75 GR5

7

7515415

Vis

8

7542439

Nut (SELF-LOCKING)

9

7043100

SHOCK-RR IRS

10

5631014

CAM SPRING ADJUST 1-3/8

10

5630551

CAM ADJUST SPRING

11

7043091-067

SPRING-COMP REAR 100# 15LG BLK

12

5251753

RETAINER-SPRING STEEL

13

7515433

Vis

14

5247345

BRKT-A-ARM PIVOT PLTD

15

7518364

Vis

16

5020826

SHAFT A-ARM SHORT

17

1014320-067

WELD-UPPER CONTROL ARM LH BLK

17

1014321-067

WELD-UPPER CONTROL ARM RH BLK

18

5436973

BUSHING-A-ARM LONG 102.36MM(10

19

7552603

Rondelle (Lock)

20

7512492

Vis

21

1015889-067

WELD-CONTROL LOWER RH BLK

21

1015888-067

WELD-CONTROL LOWER LH BLK

22

7512084

Vis

23

5435009-070

SHIELD-CV REAR BASIC BLK RH

23

5435008-070

SHIELD-CV REAR BASIC BLK LH

24

7080433

FITTING LUBRICATION THREADED(1

25

5133806

SHAFT-A-ARM

26

7515472

Vis

27

5439270

BUSHING-A-ARM-SHORT BLK
