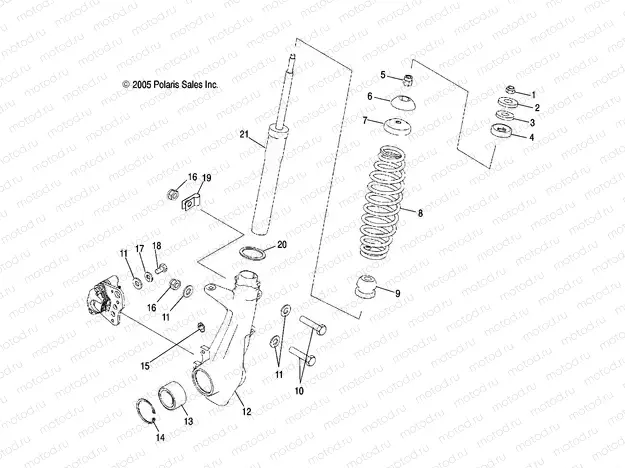

STRUT | STRUT, FRONT - A06CD32AA/AB/AC (4999201699920169B06)

STRUT | STRUT, FRONT - A06CD32AA/AB/AC (4999201699920169B06)

Например: 7547104

1

7547104

NUT

2

7555749

Rondelle

3

5810291

SPACER RUBBER

4

5432872

PIVOT BALL TOP

5

5132062

SPACER-1/2-20

6

5432871

PIVOT BALL BOTTOM

7

5243364

RETAINER-SPRING

8

7042312-067

SPRING-COMP 64-113# 11.6 BLK

9

5412665

BUMPER-MCU 17.8MM ID

10

7515339

Vis

11

7558402

WASHER FLAT

12

1822654

HUBSTRUT ASM RH

12

1822653

HUBSTRUT ASM LH

13

3514634

BEARING-WHEEL 35X64X37MM

14

7710507

RING RET. 2.500 INTERNAL

15

7080306

FITTING LUBE.W/BALL CK.

16

7542324

Nut (SELF-LOCKING)

17

7552901

Rondelle (Lock)

18

7512365

SCREW CAP

19

7080367

CLAMP CABLE

20

5211115

Rondelle

21

7041761

STRUT-FRONT 18X30MM 153.8MM ST
