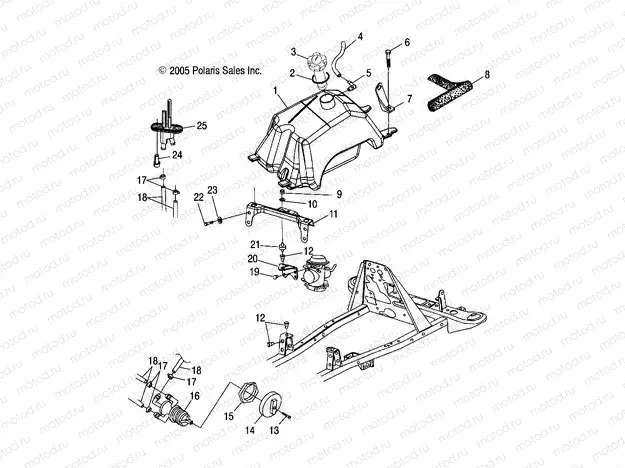

Главная Каталог товаров Polaris EPC 2006 Polaris ATV Polaris 2006 MAGNUM 330 4X4 (A06CD32AA) Polaris 2006 ATV FUEL SYSTEM and CARBURETOR MOUNTING - A06CD32AA/AB/AC (4999201699920169B01) | FUEL SYSTEM and CARBURETOR MOUNTING - A06CD32AA/AB/AC (4999201699920169B01)

FUEL SYSTEM and CARBURETOR MOUNTING - A06CD32AA/AB/AC (4999201699920169B01) | FUEL SYSTEM and CARBURETOR MOUNTING - A06CD32AA/AB/AC (4999201699920169B01)

FUEL SYSTEM and CARBURETOR MOUNTING - A06CD32AA/AB/AC (4999201699920169B01) | FUEL SYSTEM and CARBURETOR MOUNTING - A06CD32AA/AB/AC (4999201699920169B01)

Например: 2520409

1

2520409

ASM-FUEL TANK

2

5812123

Gasket

3

2871442

CAP FUEL GAUGE LONG

4

8360009-600

LINE FUEL 1/8 ID 600 CM.

5

5431053

VENT TANK

6

7512277

Vis

7

5222155

BRKT-FUEL COVER MNT RH PLTD

7

5222154

BRKT-FUEL COVER MNT LH PLTD

8

5811899

FOAM-SEAL,17"

9

7542105

NUT HEX

10

7552801

Rondelle (Lock)

11

5245671-067

Bracket, Carburetor Support

12

7547069

NUTSERT HEX

13

7517505

Vis

14

5432559

KNOB FUEL VALVE

15

5432733

NUT FUEL VALVE

16

7052161

VALVE 3-WAY

17

7080003

CLAMP HOSE

18

8450117-250

FUEL HOSE-250 CM

19

3084205

ASM. SCREW & WASHER

20

5245674-067

MOUNT CARBURETOR BLK

21

3110050

MOUNT CARBURETOR

22

7512276

Vis

23

7558301

WASHER FLAT

24

7515136

Vis

25

7052364

Fitting, Fuel Outlet, Dual
