Главная Каталог товаров Triumph EPC 2022 Triumph Scrambler 1200 XE Triumph 2022 Side Panels

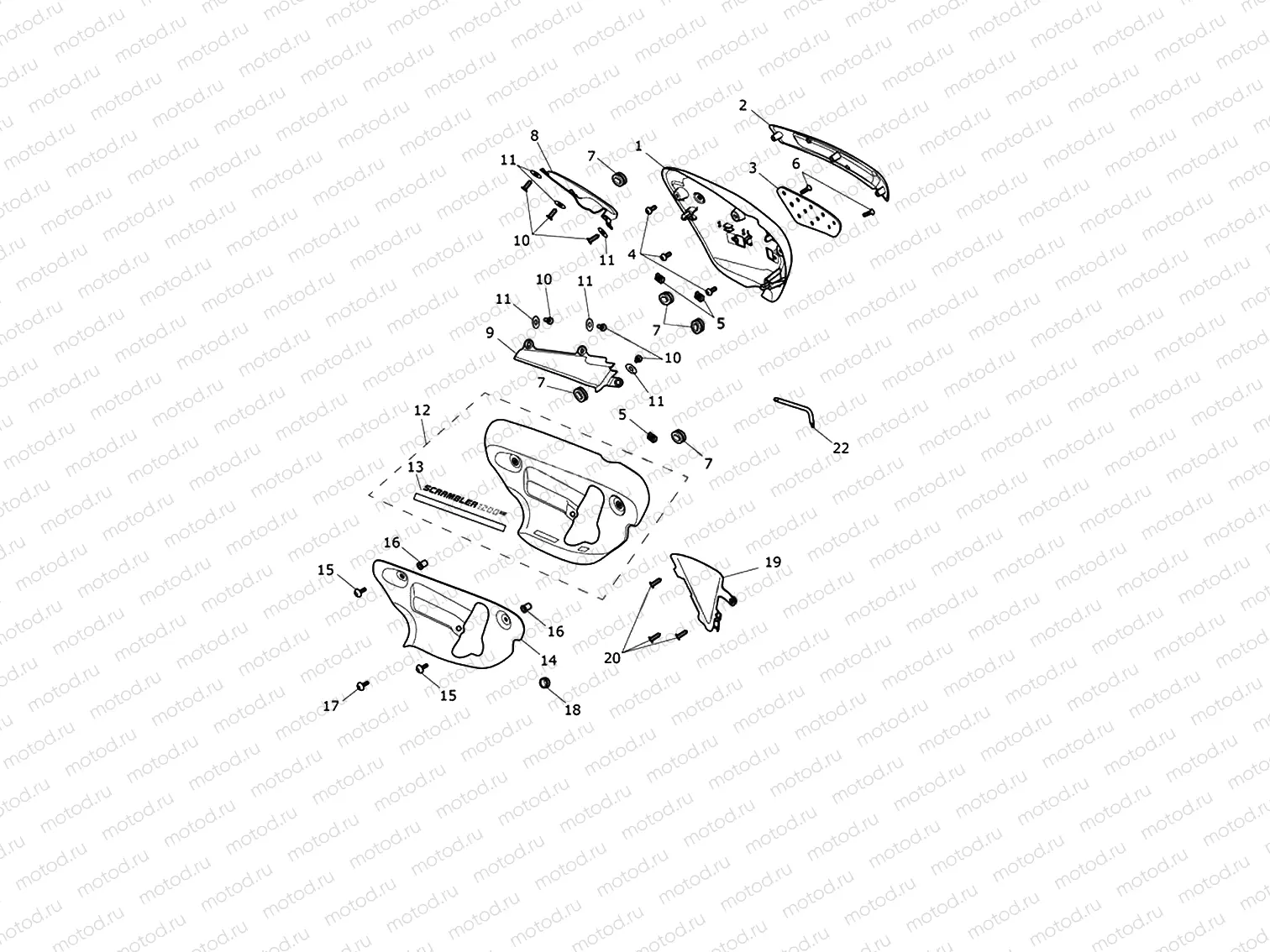

Side Panels

Side Panels

Например: T2311131-PG

1

T2311131-PG

Sidepanel, LH, Painted

1 шт. в узле

1

T2311070-PG

Sidepanel, LH, Painted

1 шт. в узле

1

T2317709-PM

Sidepanel, LH, Painted

1 шт. в узле

2

T2314820

Embellisher, Sidepanel, 1200

1 шт. в узле

2

T2309875

Embellisher, Sidepanel, XE

1 шт. в узле

3

T2305891

Embellisher, Sidepanel, Lower

1 шт. в узле

4

T3330955

Screw, But/Hd, M5 x 14, Slv, E

3 шт. в узле

5

T3350129

Nut, Captive, M5

2 шт. в узле

6

T3330722

Screw, Csk, M5 x 16, S/S

2 шт. в узле

7

T3020087

Grommet, 13.5 x 25 x 2

5 шт. в узле

8

T2307974

Infill, Upper, LH

1 шт. в узле

9

T2307926

Infill, Upper, RH

1 шт. в узле

10

T3300011

Rivet, Plastic, 4.9-5.2mm

6 шт. в узле

11

T3550249

Washer, 11 x 5.1 x 0.8

6 шт. в узле

12

T2311068-PG

Sidepanel, RH, Painted

1 шт. в узле

12

T2310930-PG

Sidepanel, RH, Painted

1 шт. в узле

12

T2310930-PM

Sidepanel, RH, Painted

1 шт. в узле

13

T2311075

Decal, Sidepanel, RH

1 шт. в узле

13

T2308284

Decal, Sidepanel, RH

1 шт. в узле

14

T2310950

Heatshield, Sidepanel, RH

1 шт. в узле

15

T3330941

Screw, But/Hd, Skt, M5 x 16, S

2 шт. в узле

16

T3350050

Wellnut, M5

2 шт. в узле

17

T3331076

Bolt, But/Hd, M5 x 16, Shld, E

1 шт. в узле

18

T3450108

Stand Off Rubber

1 шт. в узле

19

T2307907

Infill, Lower, LH

1 шт. в узле

20

T3701098

Firtree, Dia 5 x 18

3 шт. в узле

22

T2308286

ool, 5mm Hex / 4mm Flat

1 шт. в узле
